5.2 Room Controller connection

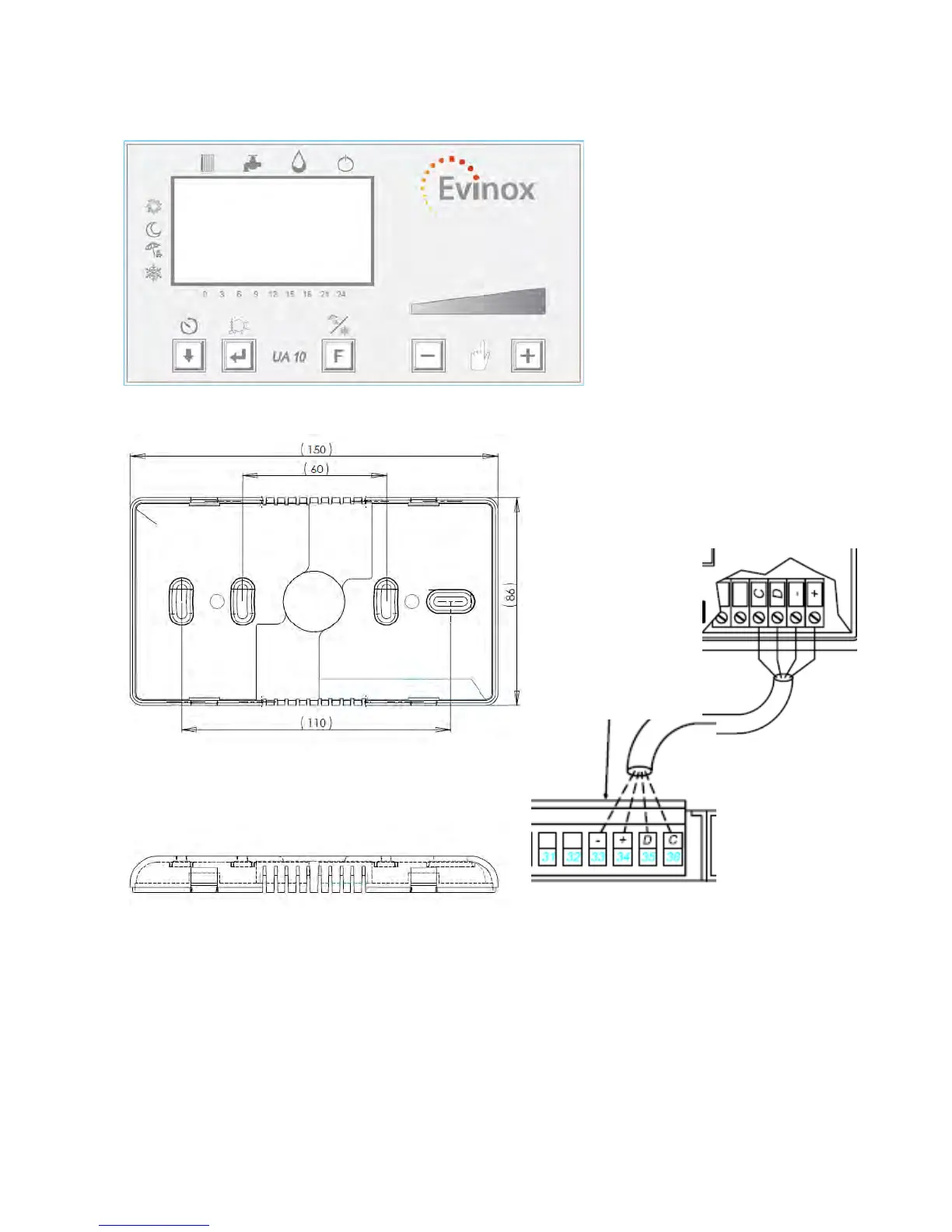

The Room Controller is a
white ABS box with graphic
display. It must be installed in
the apartment in such a way
to read the average room
temperature. It has to be
connected to the ModuSat
(please refer to the electrical
diagram) by means a 4x0.35
mm2 screened cable. The
cable must not be installed
adjacent to other 230 Volt
lines. The ModuSat room
controller’s power is supplied by the ModuSat board and does not require batteries.
For Room Controller wiring please
refer to the following instructions.
Dimensions: H= 86 mm
L= 150 mm
D= 34 mm
Machine
Module
Room
Module
