2.1 ModuSat TP option 1
The cabinet is made of painted steel, white colour RAL 9010.
Dimensions: (hxlxd) 670x470x350 mm
Electric supply: 230 Vac, 50 Hz

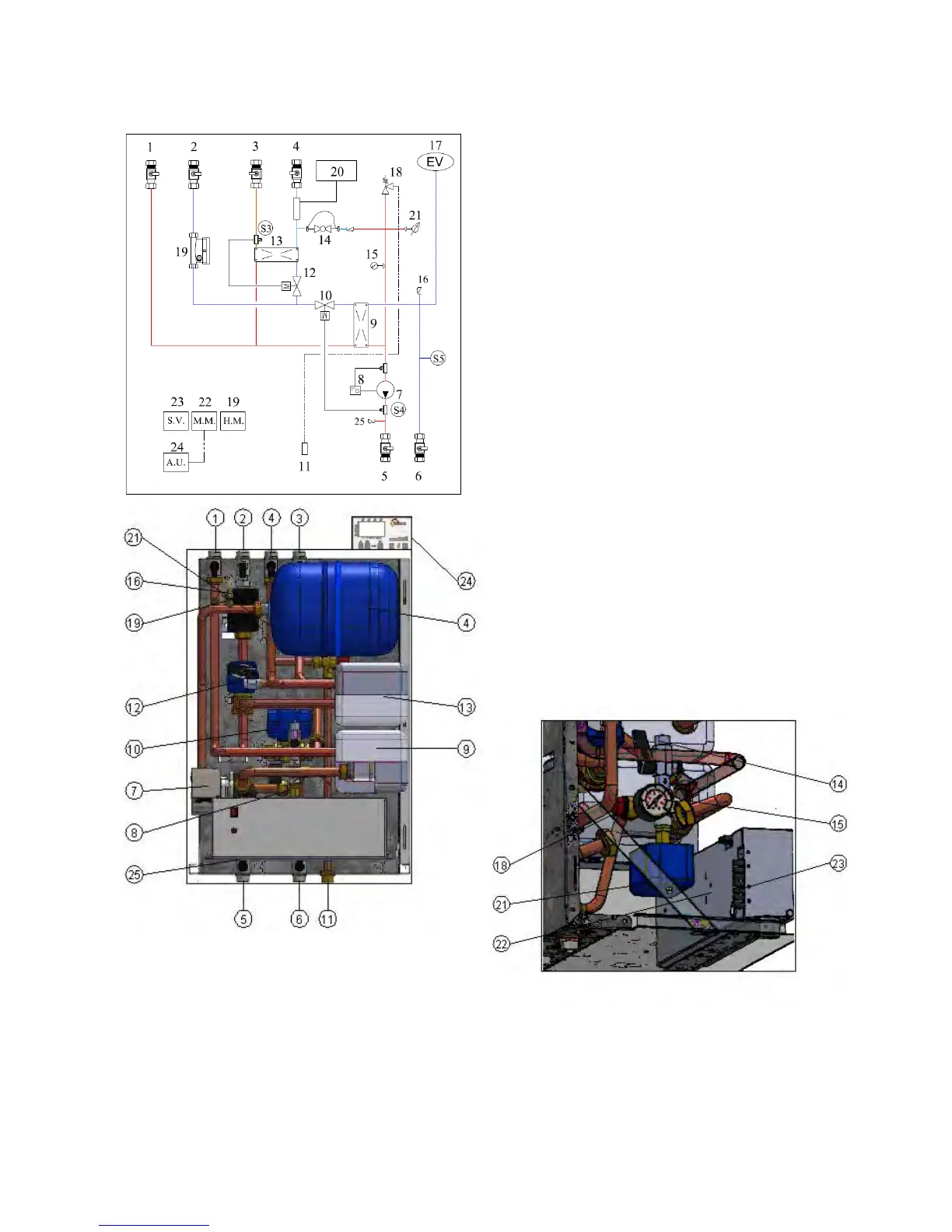

1 DH supply
2 DH return
3 DHW outlet
4 DCW inlet
5 HE supply
6 HE return
7 Circulation pump
8 Safety thermostat
9 Plate heat exchanger HE
(Insulated)
10 HE control valve
11 Drain pipe
12 DHW control valve
13 Plate heat exchanger DHW
(Insulated)
14 Filling valve
15 Manometer
16 Air vent
17 Expansion vessel
18 Safety valve HE 3 Bar
19 Heat meter
20 Lime scale reducer
21 Low pressure switch
22 MM control unit
23 Supply voltage
24 Ambient unit
25 Drain point
