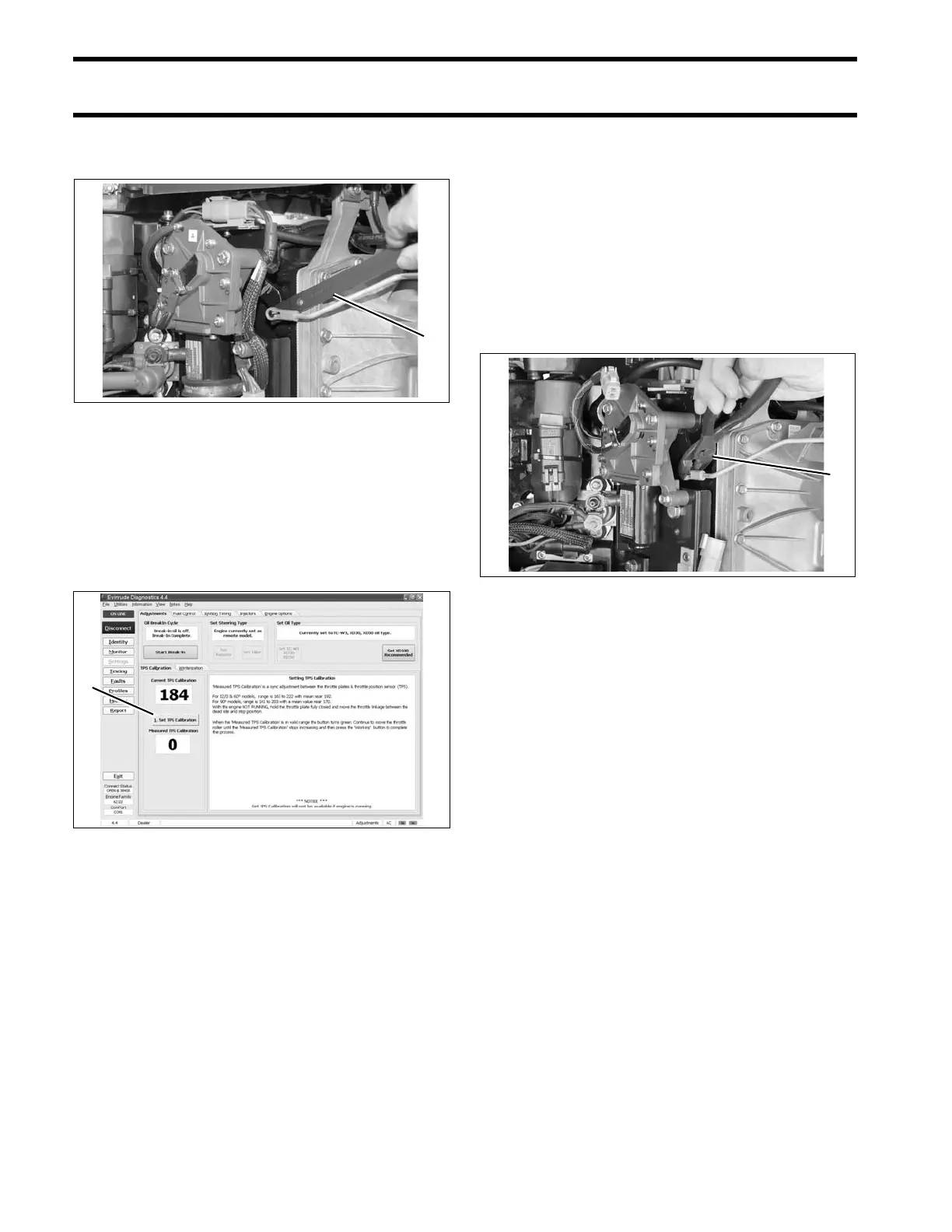

Use Ball Socket Remover, P/N 342226, to remove
throttle link from actuator arm.
Allow the throttle plates to return to the idle posi-
tion.
ALL MODELS
On the Settings/Adjustments screen of the diag-
nostics software, click the “Set TPS Calibration”
button.
While holding the throttle plates closed, advance
the throttle linkage until it stops. The “Measured
TPS Calibration” field on the screen will increase.
Click the “Working” button in the software to cali-
brate the TPS.
MODELS WITH ICON ELECTRONIC SHIFT AND
T
HROTTLE
Use Ball Socket Installer, P/N 342225, to install
throttle link onto actuator arm.
Return the ICON remote control to the NEU-
TRAL position. The throttle actuator should move
the throttle plates to the idle position.
ALL MODELS
Connect the crankshaft position sensor (CPS).
Install the air silencer.
1. Ball socket remover 008034
1. TPS Calibration button 008108
1. Ball socket installer 007303
