Installation
All injectors must be installed in the
correct cylinder by serial number. Improper
injector installation can result in powerhead
failure.
Installation of a replacement injector requires that
coefficient data for the new injector is uploaded to
the EMM.
Coefficient data for some replacement injectors is
supplied on a computer disk shipped with the
injector. If a disk is not included with the injector,
coefficient data can be downloaded from the
Evinrude/Johnson dealer website. Refer to the
instructions provided with the injector kit.
Upload Coefficient Files to EMM
Use the Evinrude Diagnostics software Settings
screen to upload the coefficient file to the EMM.
Select the Injectors tab.
Select the cylinder tab for injector being replaced.
Select the Replace Injector button.
Use the drop down menu to navigate to the saved
coefficient file location.
The coefficient file name must match the serial
number of the injector.
Select the correct file for the injector.
Select the Replace Injector button.
After the upload is complete, the program will
return to the Cylinder tab.
Make sure the serial number displayed on the
screen matches the serial number printed on the
serial number label of the replacement injector.

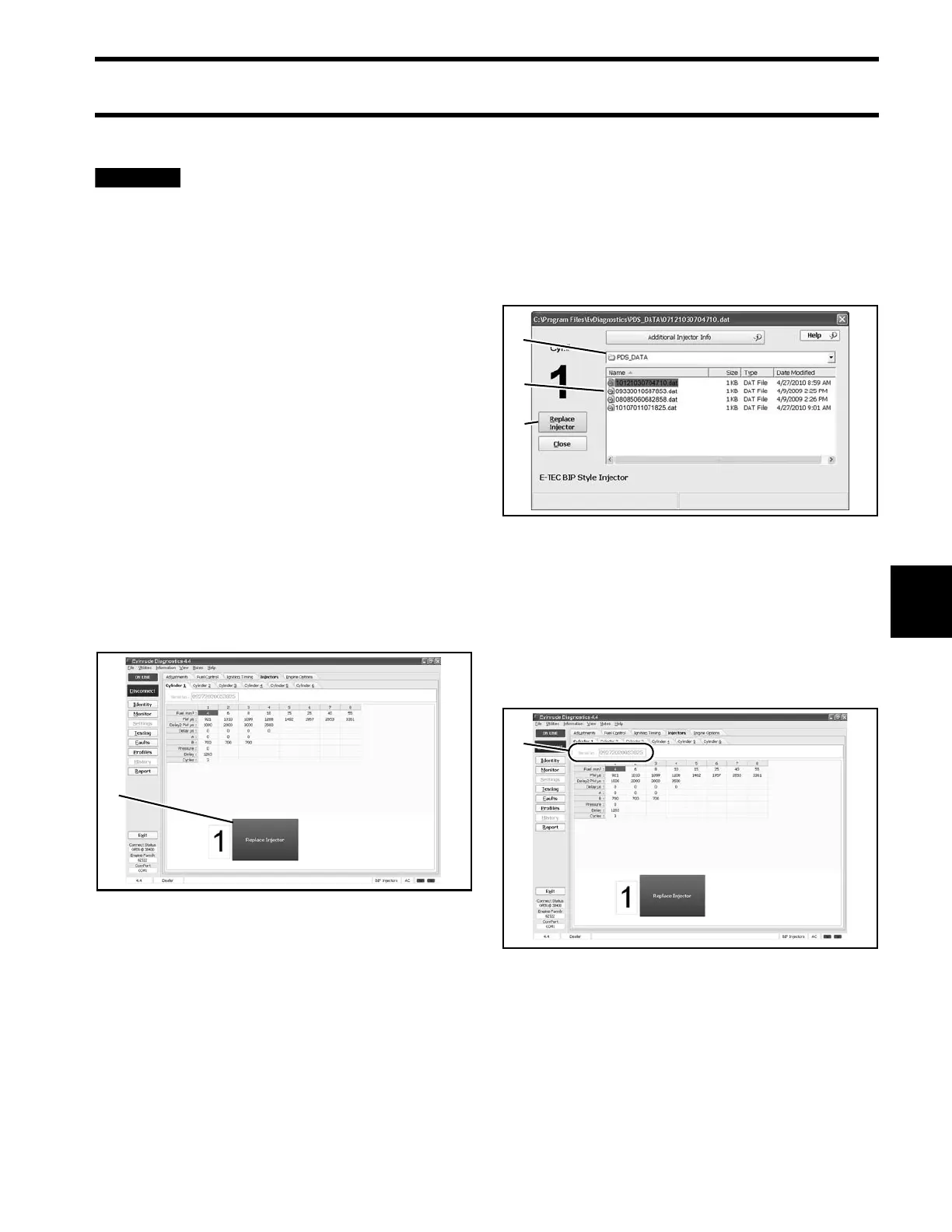

1. “Replace Injector” button 008118
1. Navigation menu
2. Injector coefficient file
3. “Replace Injector” button
008335
1. Serial number 008118
