229
POWERHEAD
POWERHEAD ASSEMBLY
11

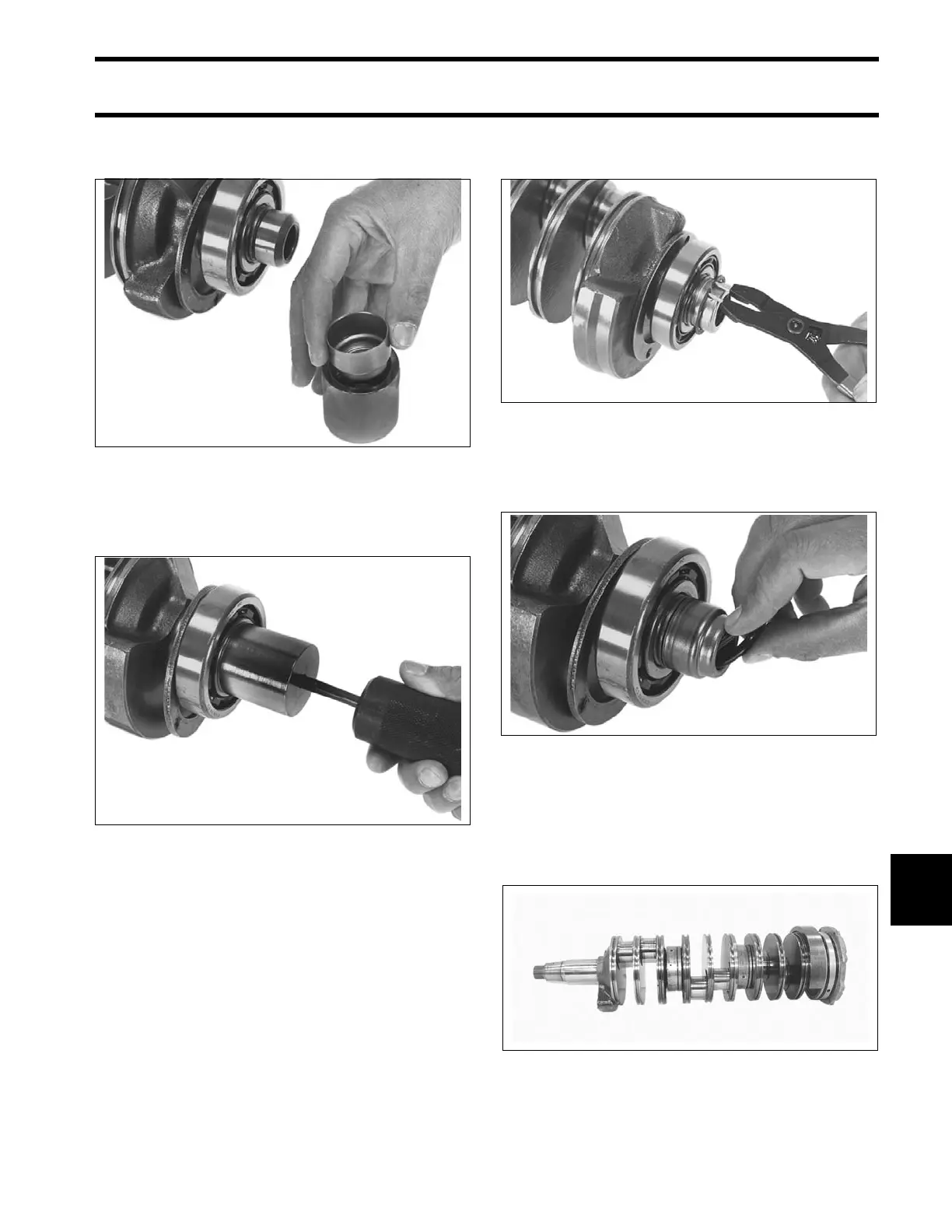

new sleeve onto the crankshaft until the installer
contacts the lower main bearing.
If the installer sticks on the sleeve after installa-
tion, thread Slide Hammer, P/N 391008, into
installer and pull it off.
IMPORTANT: Inspect sleeve after installation.
Sleeve must not be used if surface is damaged.
Use retaining ring pliers to install bearing retaining
ring with sharp edge facing away from bearing.
Lubricate a new driveshaft O-ring and lightly lubri-
cate crankshaft splines with Moly Lube. Install
O-ring in sleeve.
Lubricate the center main bearings and split
sleeves with outboard lubricant and install them in
their original positions. The split sleeve ring
grooves must face toward driveshaft (lower) end
of crankshaft when installed.
30074
30072
30061
30071
000829
