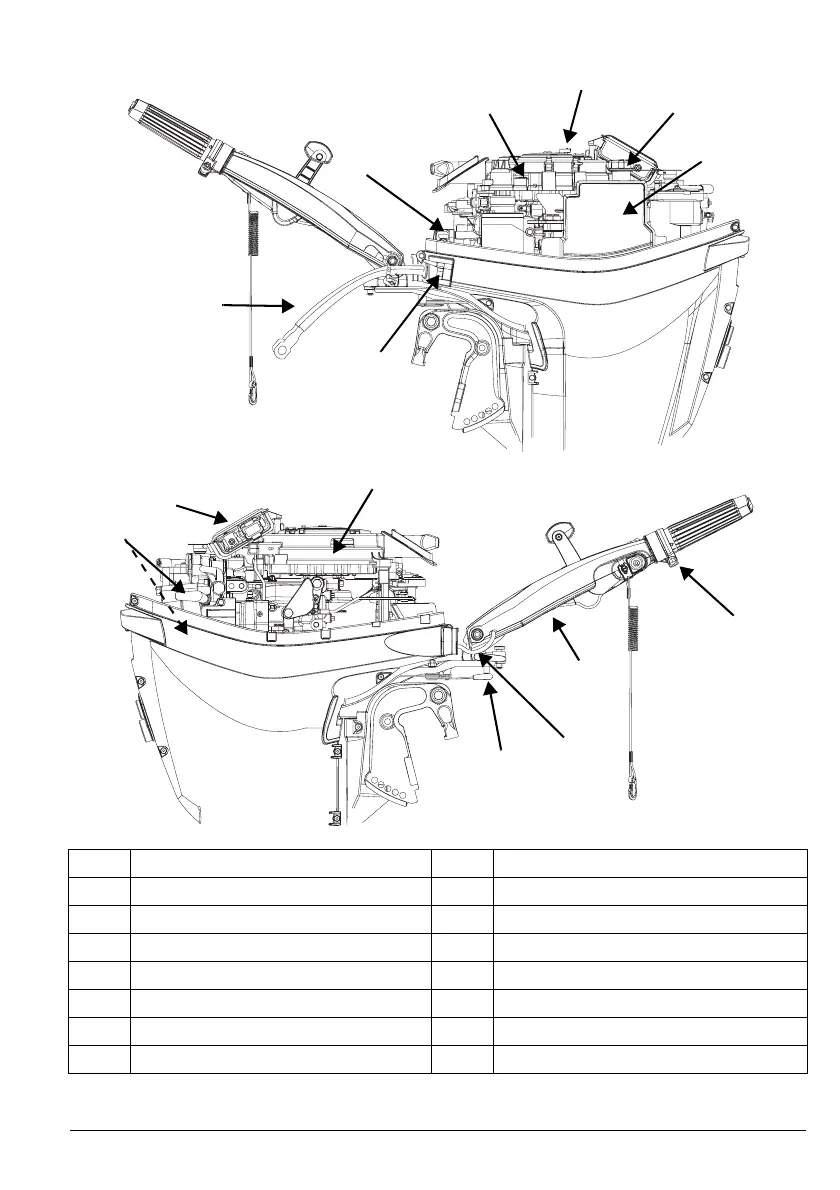

X COMPONENT IDENTIFICATION
Continue to “Oil and Fuel” on page 16
Item Description Item Description
16 Oil Tank 23 Spark Plugs
17 Oil Fill Cap 24 EMM (Engine Management Module)
18 Fuse 25 Rewind Starter / Flywheel Guard
19 Spare Fuse 26 Throttle Friction Screw
20 Air Silencer 27 Emergency Start Clip
21 Battery Cable
(electric start models only) 28 Tiller Arm Tilt Release
22 Fuel Connector 29 Steering Friction Lever
Starboard
25
24
28
26
29
23
27
006996
22
20
19
17
16
21
006995
Port
18
To Next Page
