Using Your E-TEC Outboard

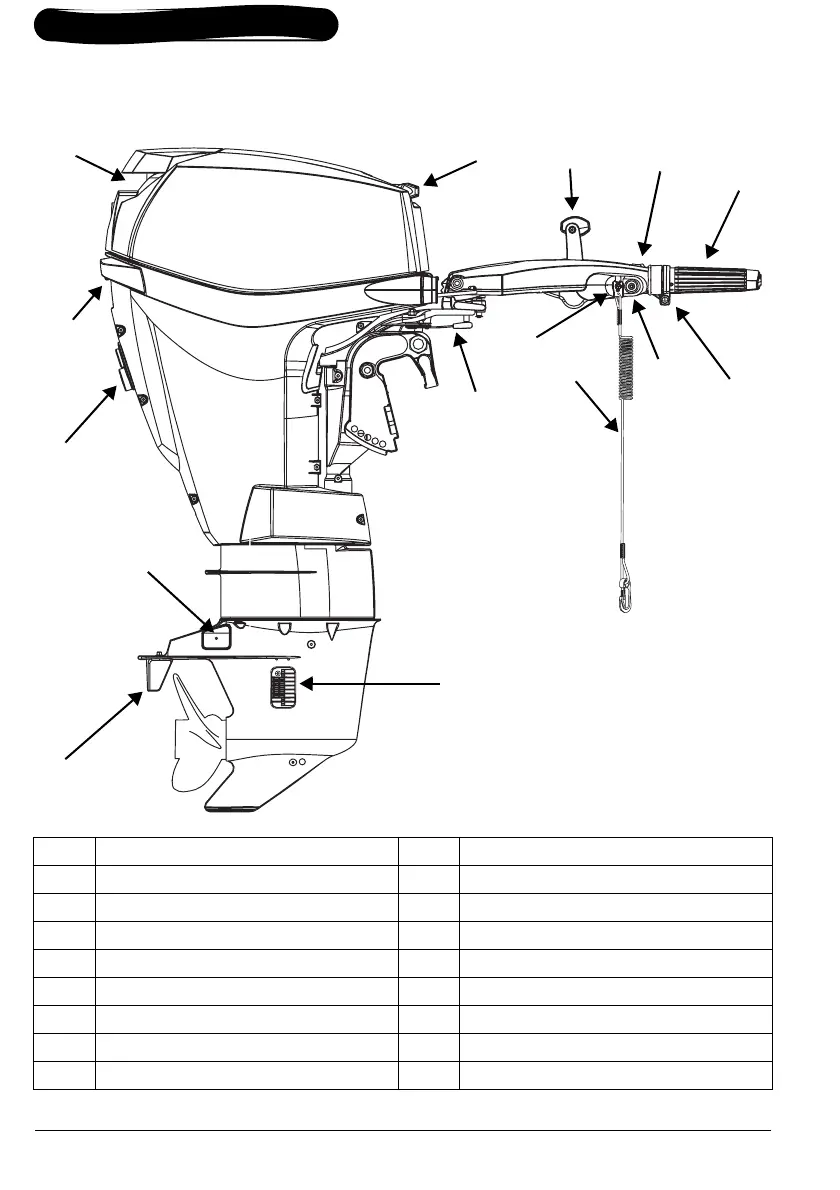

COMPONENT IDENTIFICATION
C O MP O N E NT I D E NT I F IC A TI O N -
TILLER MODELS
Item Description Item Description
1 Air Inlet, Tilt Handle 9 Clip and Lanyard Assembly
2 Engine Cover Latch 10 Start Button
(Electric Start Models Only)
3 Water Pump Indicator, Flushing Port 11 Throttle Friction Adjustment
4 Anti-Corrosion Anodes 12 Steering Handle Twist Grip™ Throttle
5 Trim Tab 13 Touch Troll ™ Idle Speed Adjustment
6 Water Intake Screens 14 Shift Lever
7 Steering Friction Adjustment 15 Rope Pull Start Handle
8 Stop Button/Emergency Stop Switch
1
3
9
4
5
7
6
12
11
10
8
2
14
13
15
006994
