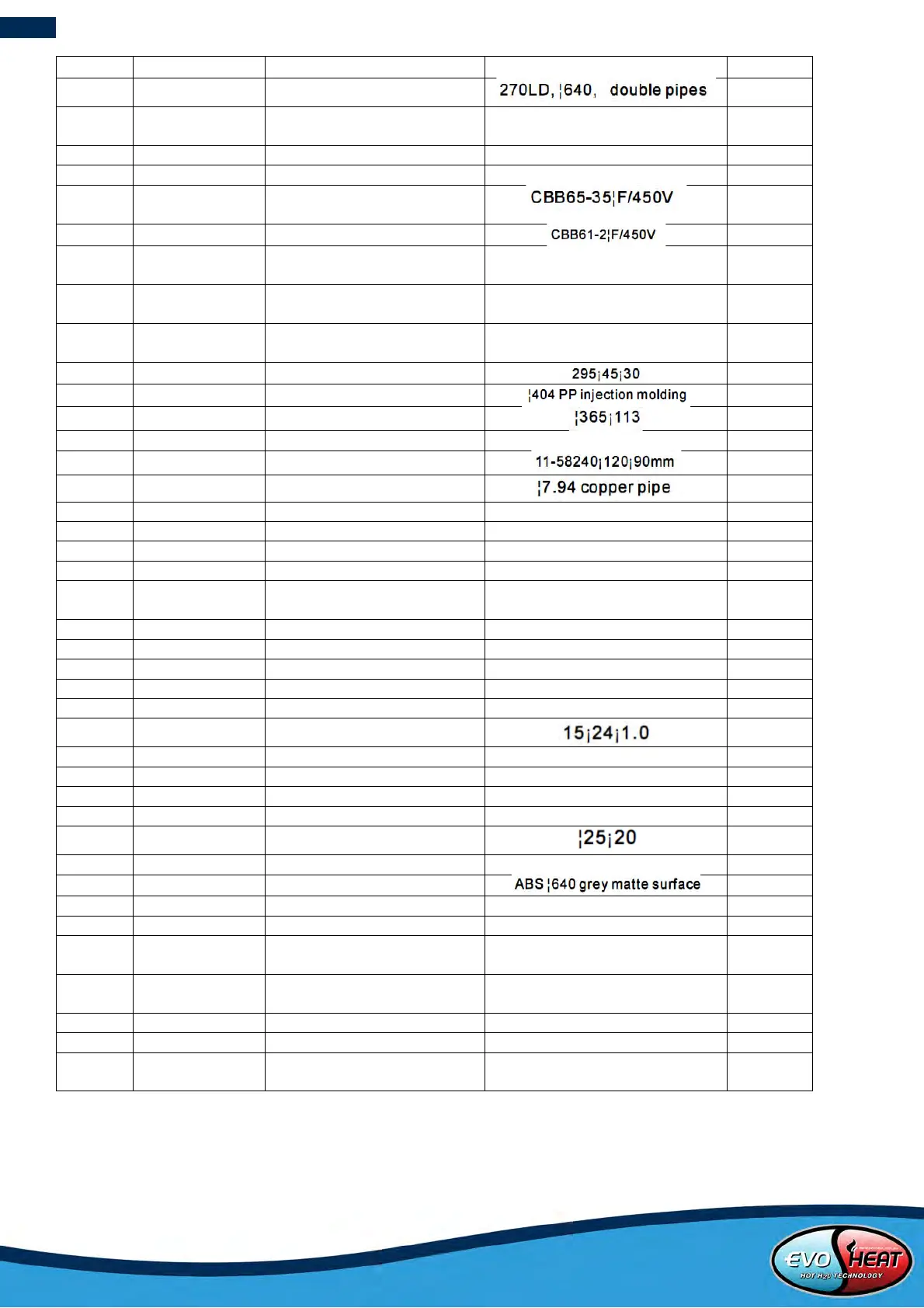

EvoHeat Evo270 Hot Water Heat Pump Manual
Number
Material Code
Material Name
Specification
Remark
1
68016-040052
Water tank 270LD
2
20000-370006
Transformer for the power
supply
41X26.5F red VH-3
3
20000-000032
Electric heater
1.5KW
4
2000-2118
Retainer for capacitor (180 J)
Galvanized sheet 0.8/CY 30-35uF
5
2000-3504
Compressor capacitor
Diameter
55*85
6
2000-3506
Fan capacitor
7
2001-1418
4-way valve
SHF-7H-34U/C02C00S/STF-0218G
R410A
8
2001-2265
Transparent cover for the
controller
For DZ controller
9
20000-360040
Mechanical temperature
controller
66TM 85 degree
10
38004-210013
Pull rod
11
38016-220006
Strainer
12
2000-2706
Axial flow fan
13
38016-210019
Air outlet vent component
Assembled component
14
2001-2262
Plastic waterproof box
15
38016-120029
Evaporator
Q design
16
20000-220093
Cover
ABS white Material
17
38016-21 0030
Support for the electrical box
Galvanized sheet 1.0
L design
18
20000-140216
Thermostatic expansion valve
TDEN1 0.9TR 3.8kW
19
38017-210024
Retainer
Galvanized sheet 2.0, black
20
2001-2264
Decorative cover for the
controller
For DZ controller
21
38016-210018
Chassis design
Galvanized sheet 1.2
22
38017-210010
Fixed plate for the electrical box
Galvanized sheet 1.2
23
20000-880032
Magnet
Magnet in opposition
24
20000-220130
Cover plate for the wires
ABS grey colour code RAL7016
25
2000-1404
Needle point valve
High or low pressure
26
20000-880050
Retainer for the magnet
27
20000-330087
Axial flow motor
GAL6P28A-KWDB
Galanz
28
38017-220047
M design decorative plate
ABS blister plastic component
29
2000-3607
Press switch
2.1 MPa/1.7MPa
30
38016-21 0024
Pull rod for the compressor
Galvanized sheet 3.0
31
2000-2654
Rubber feet
32
20000-110108
Compressor(H74)
WHP03970BSV
33
38016-220008
Top cover
34
38016-21 0020
Support for motor
Galvanized sheet 1.2
35
38016-220005
Air outlet vent net
ABS injection moulding
36
38017-220023
Cover plate for the wire
controller
ABS injection mould parts
37
20000-130143
P&T valve
6' female thread
6' male thread brass
38
20000-220091
Back cover for the controller
For mounted to the unit
39
38017-210009
Fixed plate
Galvanized sheet 1.0
40
38017-210055
Retainer for the temperature
sensor
Galvanized sheet 0.8
