• Unpack the crossbars. Make sure the latches are open (see the O marking on the latch, Fig. 4).
• Put the crossbars in place, so that the latches land on the mount spikes of the floaters.
Make sure the crossbars are perpendicular to the floaters!

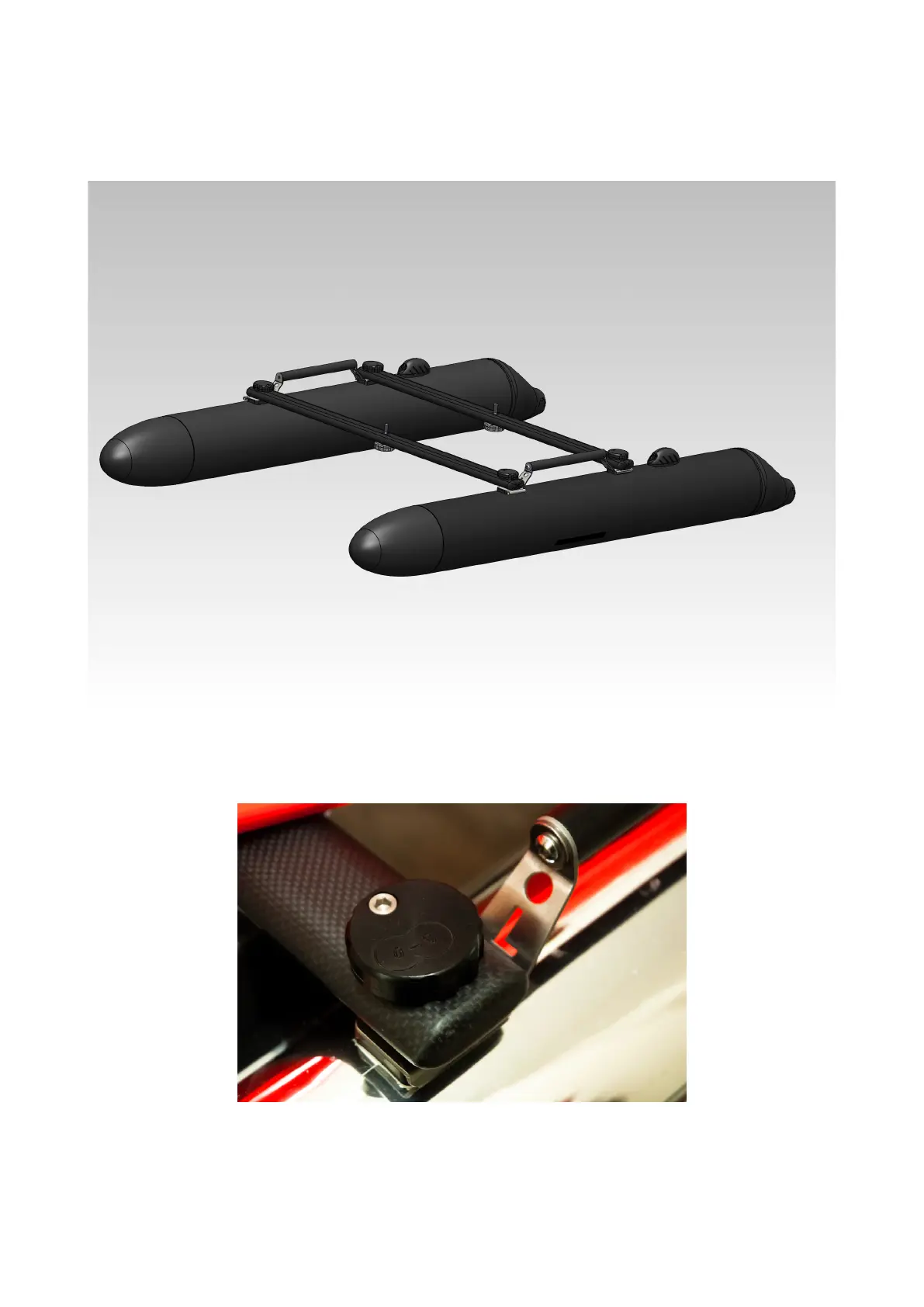

Figure 3: Sonobot assembly
• To tighten a latch, turn it until you feel it lock (see the C marking on the latch, Fig. 4).
Figure 4: Fastening the latches
Fasten all 4 latches holding the floaters and the crossbars together. The crossbars and the floaters are now locked.
