• Whencuttingiscompletere-adjustthedepthstopsothatthe

Cutting Head can be locked in the down position by the head

latching pin.

Note: In many circumstances the depth stop can be left at the

selected setting if desired. When the depth stop ‘stop plate’ is re-

turned to the ‘normal’ position the depth stop screw will pass by

the ‘stop plate’ and through a channel in the machines castings.

7.5 THE SLIDING UPPER FENCE SECTION

The Left Hand side of the Fence has an adjustable upper section.

Adjustment may be necessary to provide clearance for the

moving Cutting Head when acute bevel or compound angles

are selected.

To adjust the Fence:

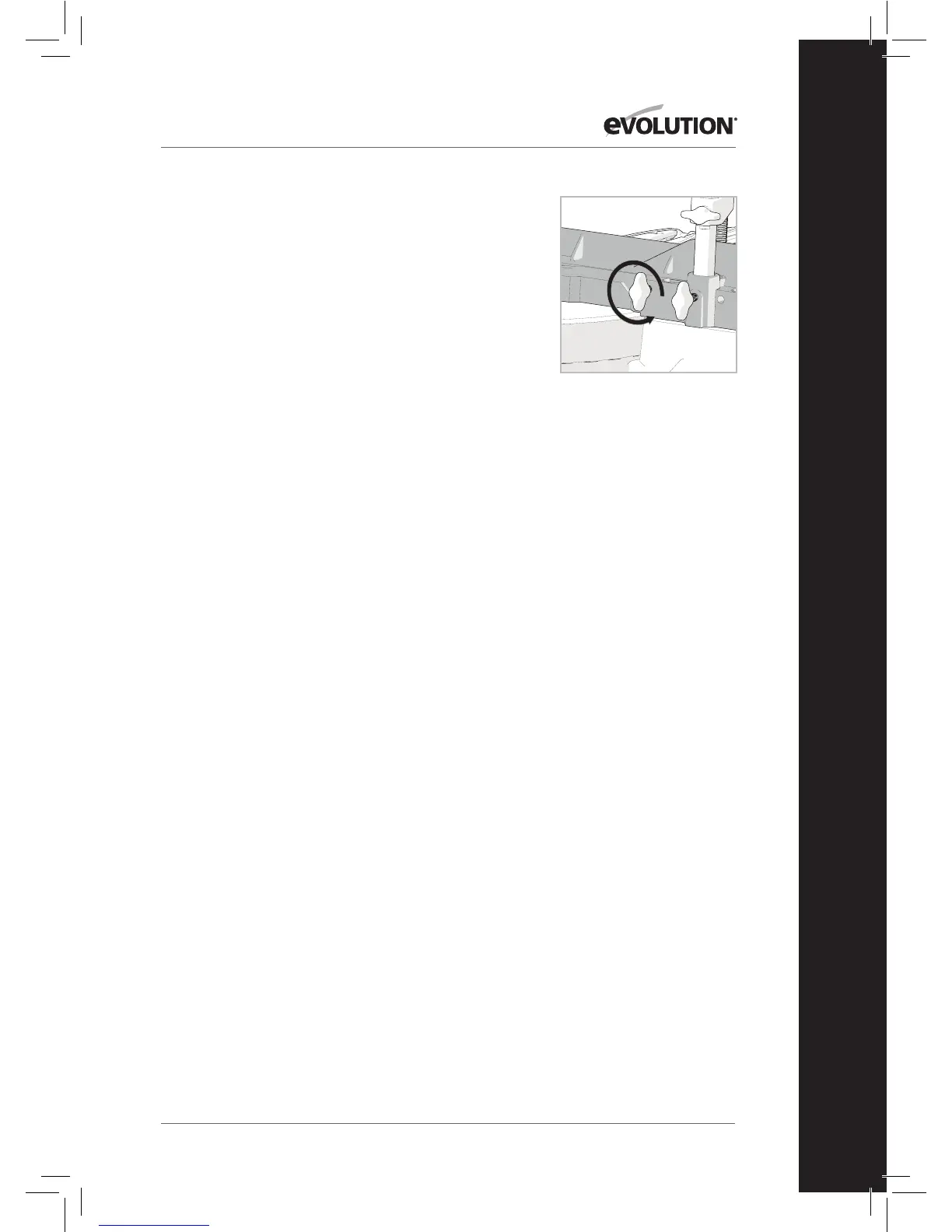

• Loosenthethumbscrew.(Fig. 10)

• SlidetheuppersectionoftheFenceleftwardstotherequired

position and tighten the thumbscrew.

• Conducta‘dryrun’withthepowerofftoconfirmthatthere

is no interference between moving parts as the Cutting Head

is lowered.

8.1 OPERATING INSTRUCTIONS

Caution: The Mitre Saw should be inspected (particularly for

the correct functioning of the safety guards) before each use.

Do not connect the saw to the power supply until a safety

inspection has been carried out.

Ensure that the operator is adequately trained in the use,

adjustment and maintenance of the machine, before

connecting to the power supply and operating the saw.

(8.2)

WARNING:

To reduce the risk of injury, always unplug the

saw before changing or adjusting any of the machines parts.

Compare the direction of the rotation arrow on the guard to

the direction arrow on the blade. The blade teeth should always

point downward at the front of the saw. Check the tightness of

the arbor screw.

Fig. 10

Evolution Fury 3 User Manual
