• Attach the side cross-braces (C) to the corner legs (Fig. 5)
in the same manner that the front and rear cross-braces
were attached.
• Push t the rubber feet (E) onto the bottom of each leg.
Note: The machine can now be lifted from the
work-surface/workbench.
WARNING: This machine is heavy. Enlist competent help
when lifting this machine from the workbench.
Allow the machine a few minutes to settle. When satised
that the machine is standing squarely, upright and is rm and
secure, thoroughly tighten all of the xing screws.
• Attach the cantilever braces to the rear two corner legs (D)
of the machine stand (Fig. 6).
Note: These cantilever braces provide extra security and
stability when the machine is in use.
ATTACHING THE TABLE EXTENSIONS
Note: The pressed steel table extension panels (F) are not
handed and can t on either side of the machine.
Each table extension attaches to the main table of the machine
using two hex headed machine screws (N) and nut (O). The
holes for the screws to pass through in the table extension
panels are positioned to the very front and rear of the side
anges. (Fig. 7).
Note: The side table support struts (G) are supplied in two
sizes. The longer 2 should be tted to the left hand side of the
machine, the shorter two on the right, and should be attached
to the outer ange of the extension panels. Fasten one end of
the support strut to the inside of the extension panel using the
rearmost hole. Repeat this step on both sides. (Fig. 8).
The other end of the support strut attaches to the top of its
accompanying corner leg.
• Carefully remove the relevant machine screw from the top
of the corner leg.

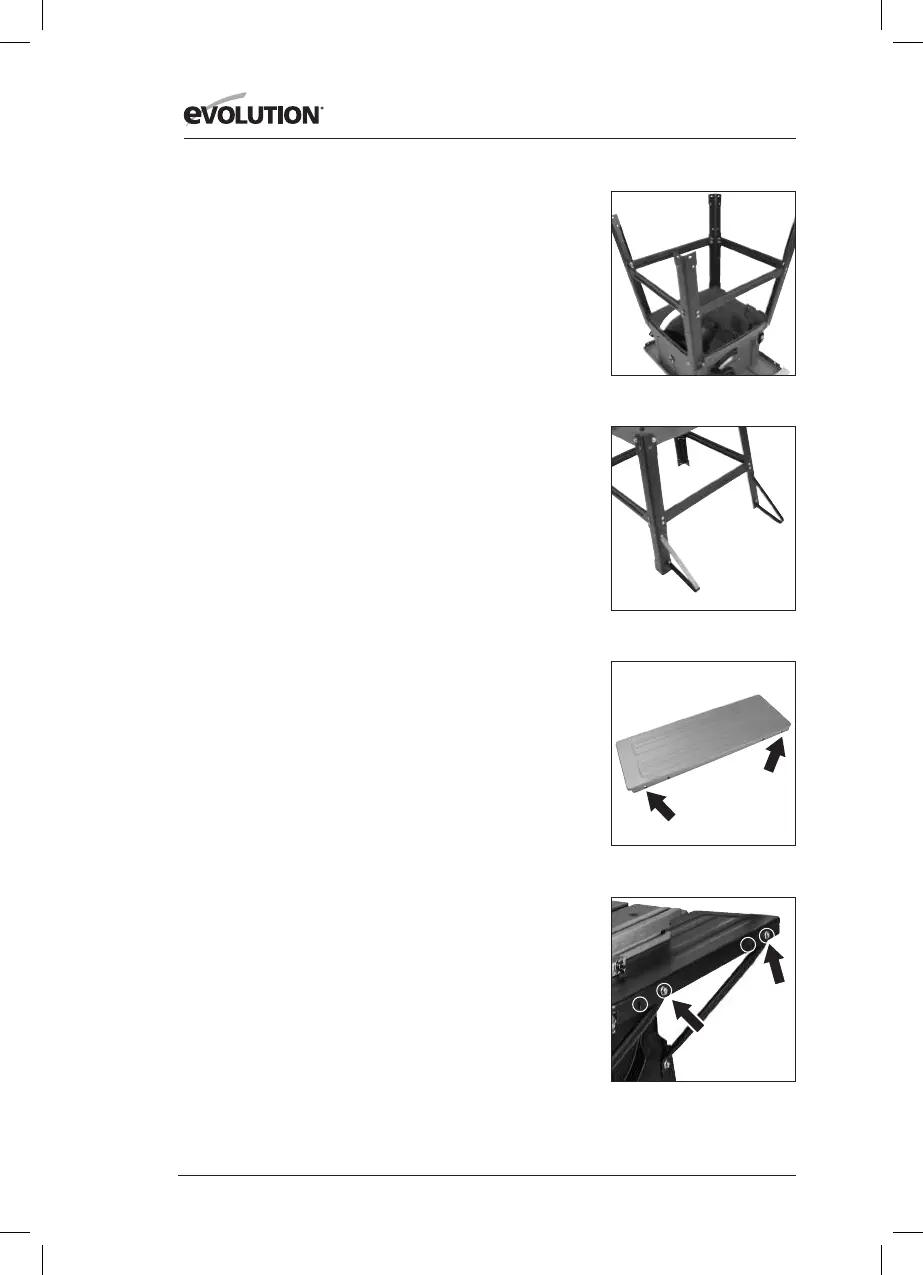

Fig. 5
Fig. 6
Fig. 7
Fig. 8
