• When satised that the blade guard works throughout
the blades height adjustment range, check that the guard
works equally well with the blade set to a bevel angle.
• Check that when the blade is fully lowered, the blade guard
is in contact with the table top.
Note: The top blade guard is equipped with a dust extraction
port (Fig.21).
• Connect the supplied dust extraction hose to the top blade
guard. The hose is a ‘push t’ onto the extraction port.
• Connect the other end of the hose to the 2 way connector
found to the rear of the machines main body. (Fig. 22)
Note: The ‘free’ port of the 2 way connector can be used to
attach a workshop dust extraction machine to this Evolution
machine. If such a machine is connected to this Table Saw
follow the Instructions provided by the supplier/manufacturer
of the dust extraction equipment.
Use of such equipment will ensure that the workplace is kept
clean and tidy, and that dust is kept to a minimum.
Note: We do not recommend complete disassembly of the
product for transportation.
OPERATION
ON/OFF SAFETY SWITCH
WARNING: Before operating the switch make sure that the
blade guard is correctly installed and operating properly.
• Push the ‘ON’ button to start the machine. (Fig. 23)
• Push the ‘OFF’ button to stop the machine.
WARNING: Never start the machine until all safety checks and
procedures have been carried out.
RAISING/LOWERING THE BLADE
WARNING: Only make adjustments to the machine when the
machine is switched OFF and the blade is stationary.
Note: This machine is equipped with a dual function
hand- wheel (Fig. 24) in its ‘normal’ (outer) position this
hand-wheel is used to raise or lower the blade.
When the hand-wheel is pushed in against its bias spring a
cog engages with a curved toothed rack incorporated into the
machines main body. This allows the hand-wheel to be used to
adjust the tilt/bevel angle of the blade.

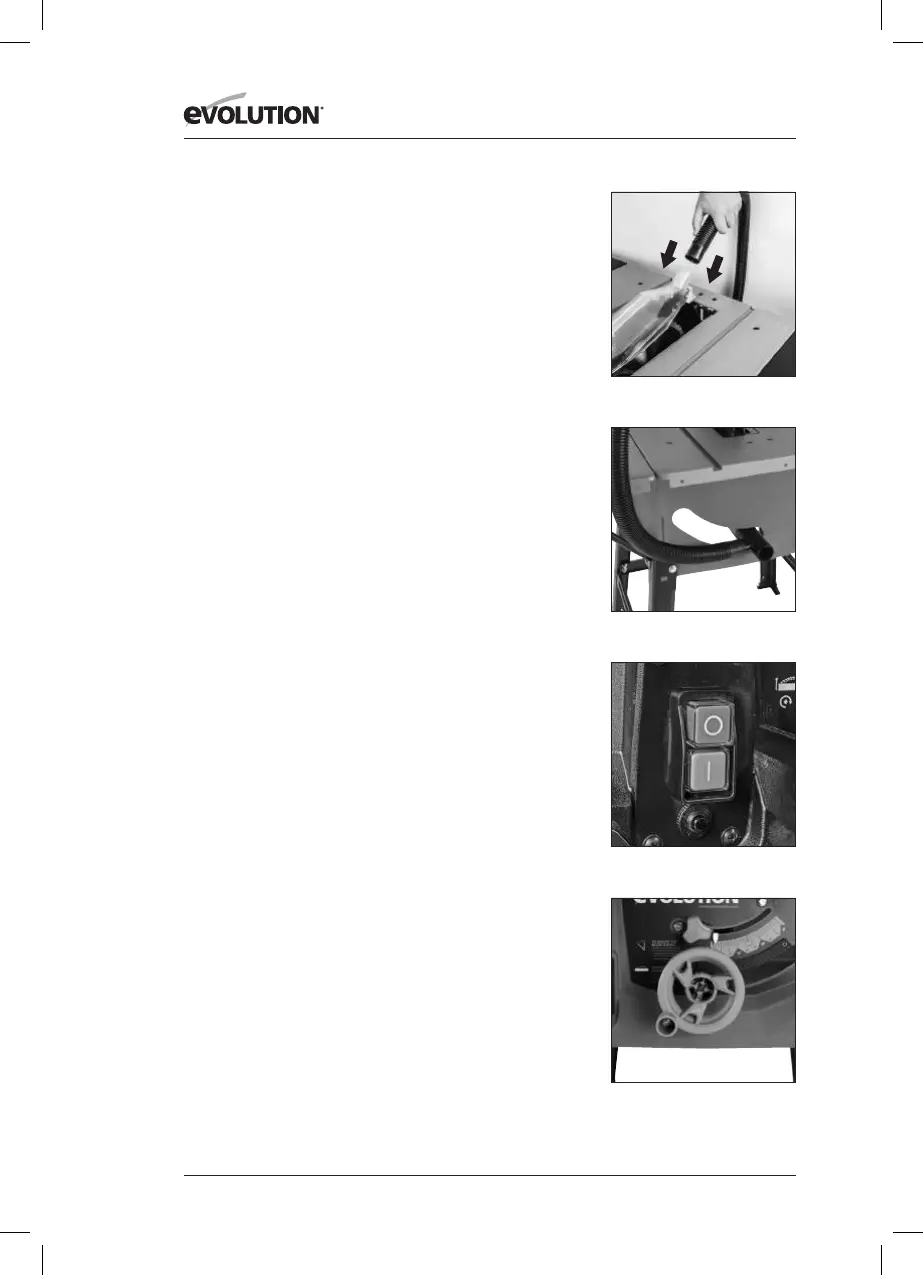

Fig. 21
Fig. 22
Fig. 23
Fig. 24
