Evolution RAGE5-S User Manual

13
www.evolutionpowertools.com
1. STAND COMPONENT X2
2. STAND COMPONENT X1
3. STAND COMPONENT X1
4. STAND COMPONENT X1
5. STAND COMPONENT X1
6. STAND COMPONENT X1
7. WHEELS X2
8. DUST EXTRACTION HOSE CLIP X1
9. BLADE GUARD X1
10. MITRE GAUGE X1
11. ANTI VIBRATION DEVICE X1
12. PUSH STICK X1
13. RIP FENCE X1
14. RIP FENCE FACE PLATE X1
15. DUST EXTRACTION HOSE X1
A. M8 X 78MM BOLT X8
B. M6 X 53MM BOLT X4
C. M5 X 50MM BOLT X2
D. M5 X 40MM BOLT X4
E. M6 X 55MM BOLT X2
F. M5 X 10MM BOLT X1
G. ORANGE FINGER NUT X2
H. SMALL WASHER X2
I. LARGE WASHER X4
J. SPACER X8
K. M8 NUT X8
L. M6 NUT X4
M. M5 NUT X7
N. FLAT END CAPS X6
O. ROUND END CAPS X2
USE THE SCALE ON THE BACK PAGE OF THE MANUAL AS A BOLT SIZE GUIDE

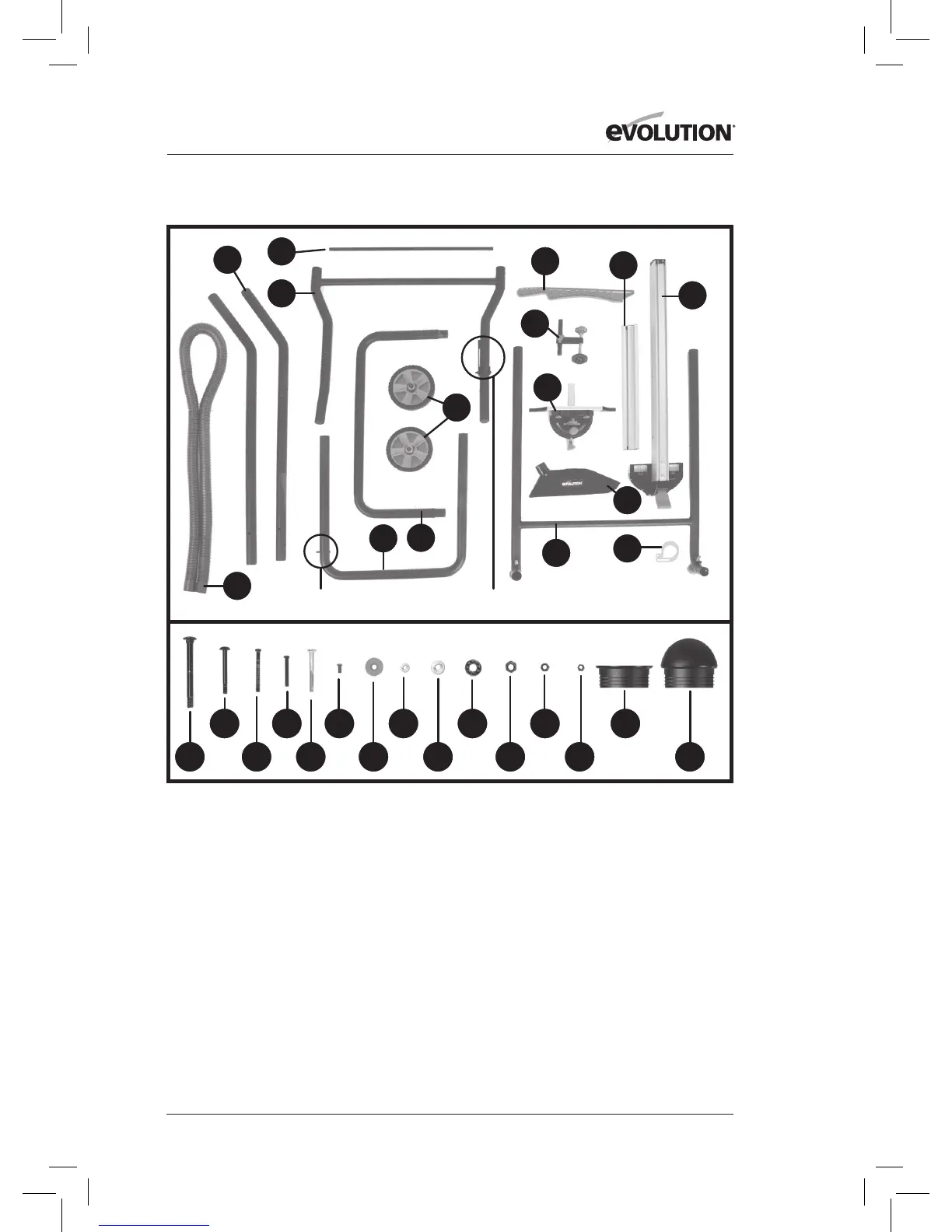

WHAT’S IN THE BOX
11
1
2
3
4
5
6
7
8
9
10
14
12
13
15
A
B D F H J L N
C E G I K M O
LOCKING LATCHLATCHING PIN

Evolution RAGE5-S Specifications

General

Motor Power	1500 W
Bevel Capacity	45 degrees
Bore	25.4 mm
Mild Steel Capacity (Wall Thickness)	6 mm
Voltage	230 V
Frequency	50 Hz
