• Fitthenewblade.Ensurethattheteetharefacingtothe
front of the saw, and that the arrow on the blade is in line
with the motor direction (Fig. 50).
• Replacetheouterangeandnutandtightensecurelywith
thespannersprovided.Checkthatbothbladeangesarein
contact with the blade.
• Replacetheaccessplateanditsxingscrew.Ensurethatthe
xing screw is correctly seated.
• ReplacetheBladeGuardandcheckalloperational
functions of the blade and its guarding system.
• Onlyconnectthemachinetoitsmainsupplyaftera
complete safety check of the machine has been carried out.
THE RIVING KNIFE
The riving knife is a very important component and must be
tted correctly aligned and adjusted. The riving knife prevents
the work from binding as it passes through the blade.
Inspect the riving knife at regular intervals and replace it if it is
worn or damaged.
Note: Use only a genuine Evolution Riving Knife, as this is a
dedicated component for this machine. Non genuine parts could
be dangerous. If in any doubt, please contact the Helpline.
CLEANING
After each use the machine should be cleaned. Remove all
sawdust, etc. from the visible parts of the machine with a
vacuum cleaner. A vacuum cleaner can also be connected to
the machine dust extraction port at the rear of the machine.
This should remove debris from the inside of the machine.
Never use solvents to clean plastic parts, as solvents can
damage them. Clean only with a soft very slightly damp cloth.
TOOL STORAGE
A tool storage facility is available at the LH side of the machine
(Fig. 51). Undo the centre hand nut and place the blade
changingtoolsontothemetalange.Securethetoolswith
the centre nger nut.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities exist.
Check with your local authority or retailer for recycling advice.

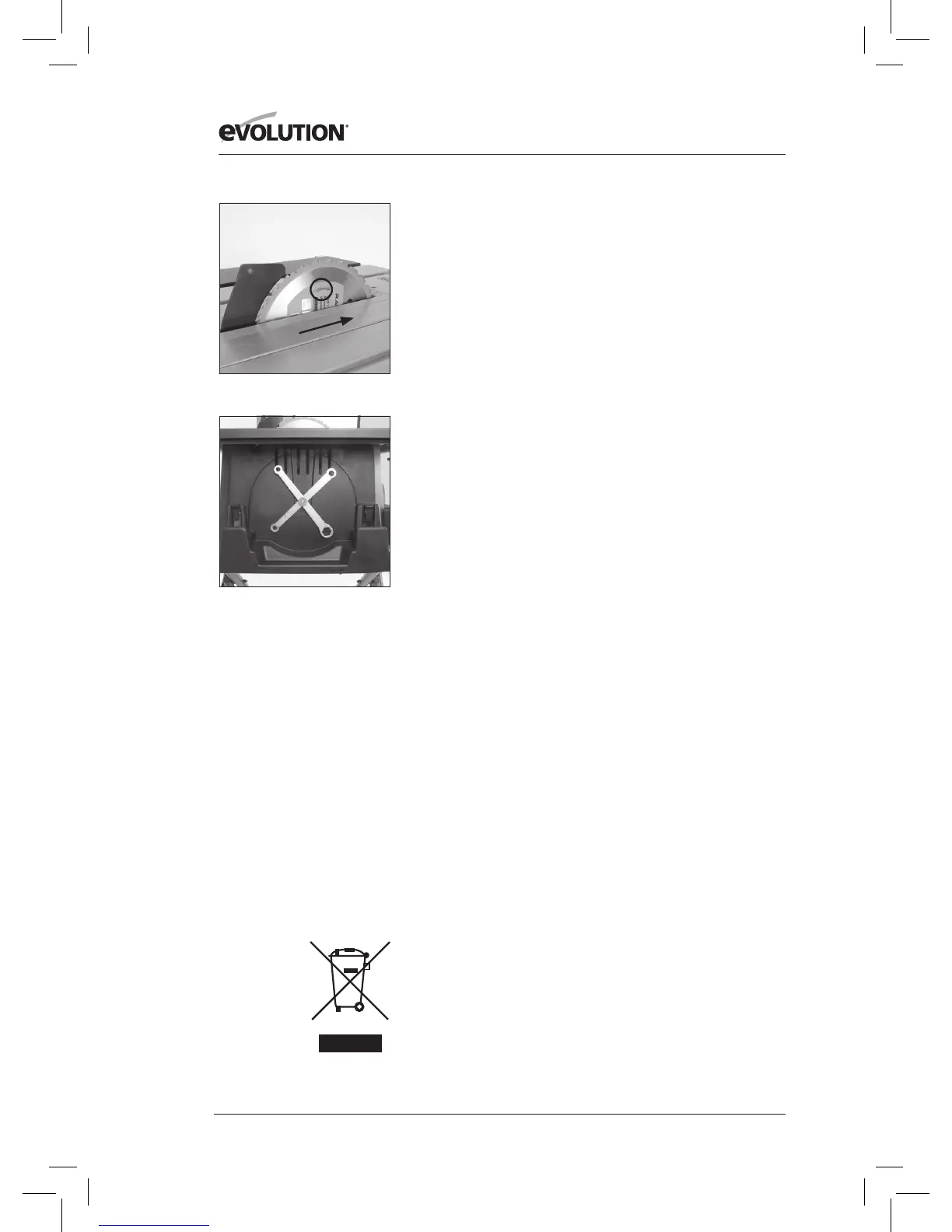

Fig. 50
Fig. 51

Evolution RAGE5-S Specifications

General

Motor Power	1500 W
Bevel Capacity	45 degrees
Bore	25.4 mm
Mild Steel Capacity (Wall Thickness)	6 mm
Voltage	230 V
Frequency	50 Hz
