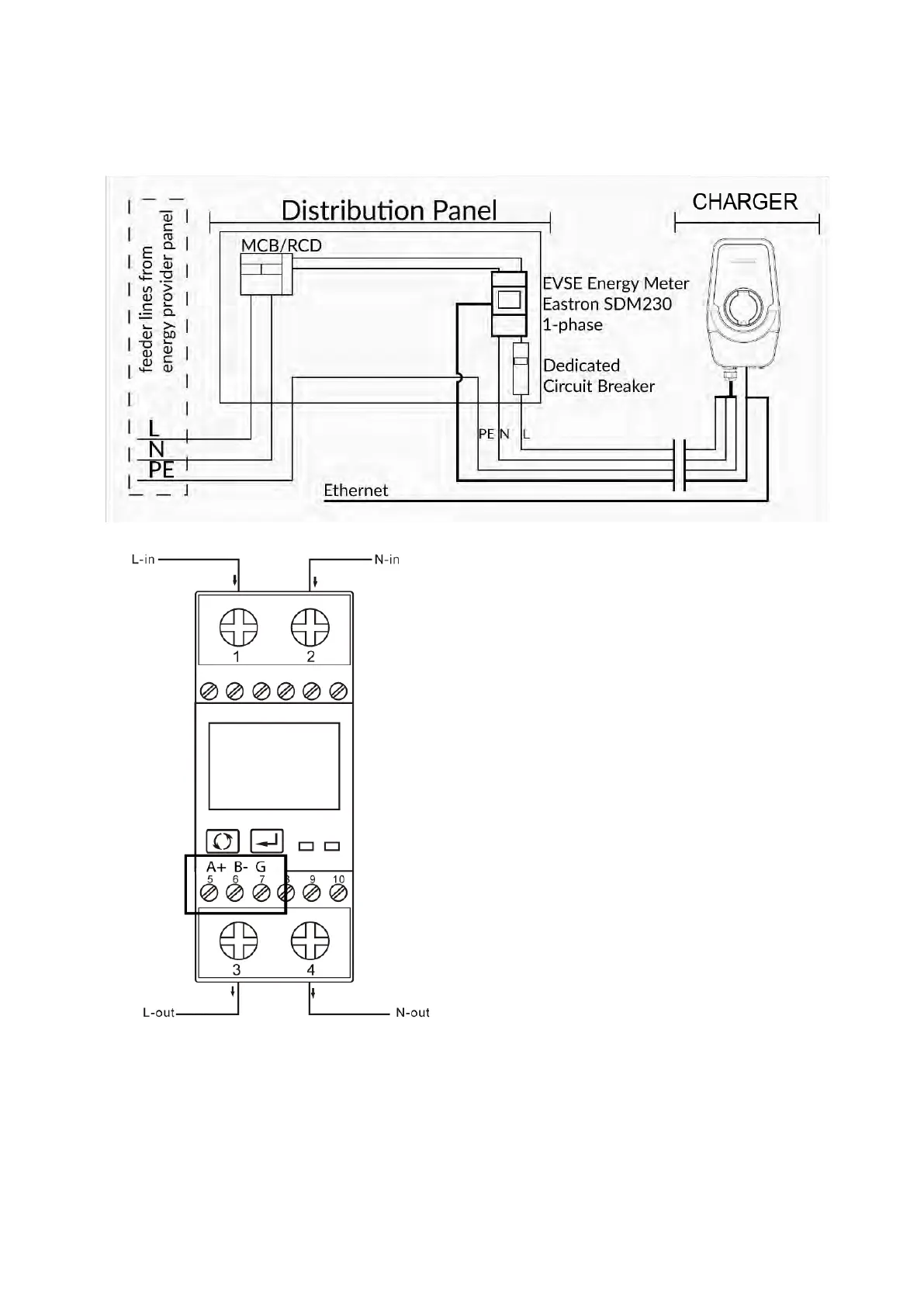

Overall system wiring diagram: 1-phase with MID meter
Wiring diagram for the EASTRON SDM230 Modbus V2
Observe the direction of power line wiring and the pinout for
the RS-485 communication bus (G=GND).
Improper connection may result in serious damage and/or
injury hazards!
