3. Hardware Specifications
3.1. Mechanical Dimensions and Weights
3.1.1. Rack Mount 4U Main Frame
Weight
4U - 19 inches chassis 30kg / 66.15lb
Dimensions

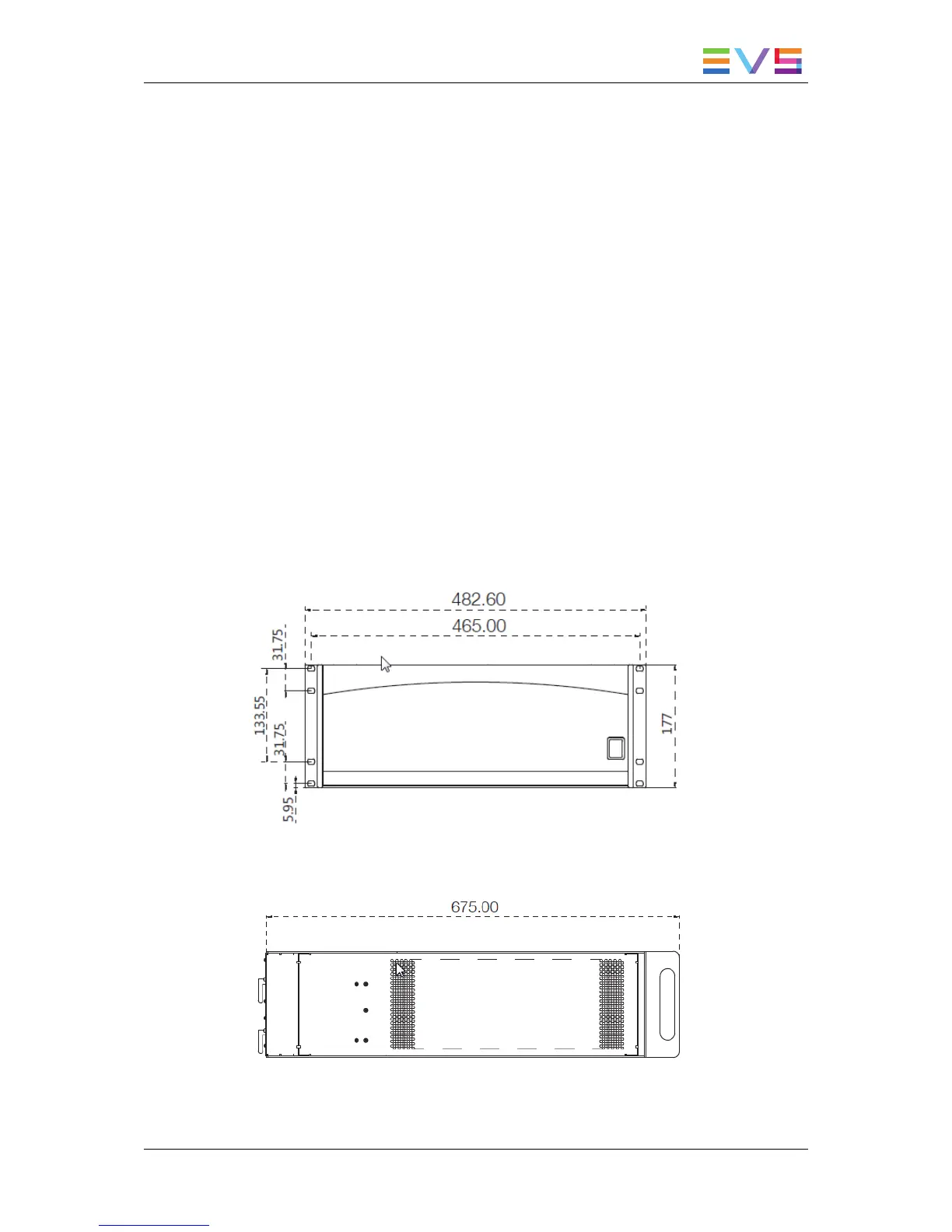

The following drawings provide the various dimensions, in mm, of the XTnano server with
a 4U chassis.
Front View
Left View
