Video and Codec Connectors
The codecs modules allow connections for recording and playback of video material.
Each connector on a codec module is connected to the corresponding J connector on the
COD A or COD B module of a V3X board.
See section "V3X Video and Reference Boards" on page 43 for more details on each
connector specific usage according to the different configurations.
The XTnano server comes in:
• a version with 4 codec modules
• a version with 2 codec modules (caps on unavailable connectors)

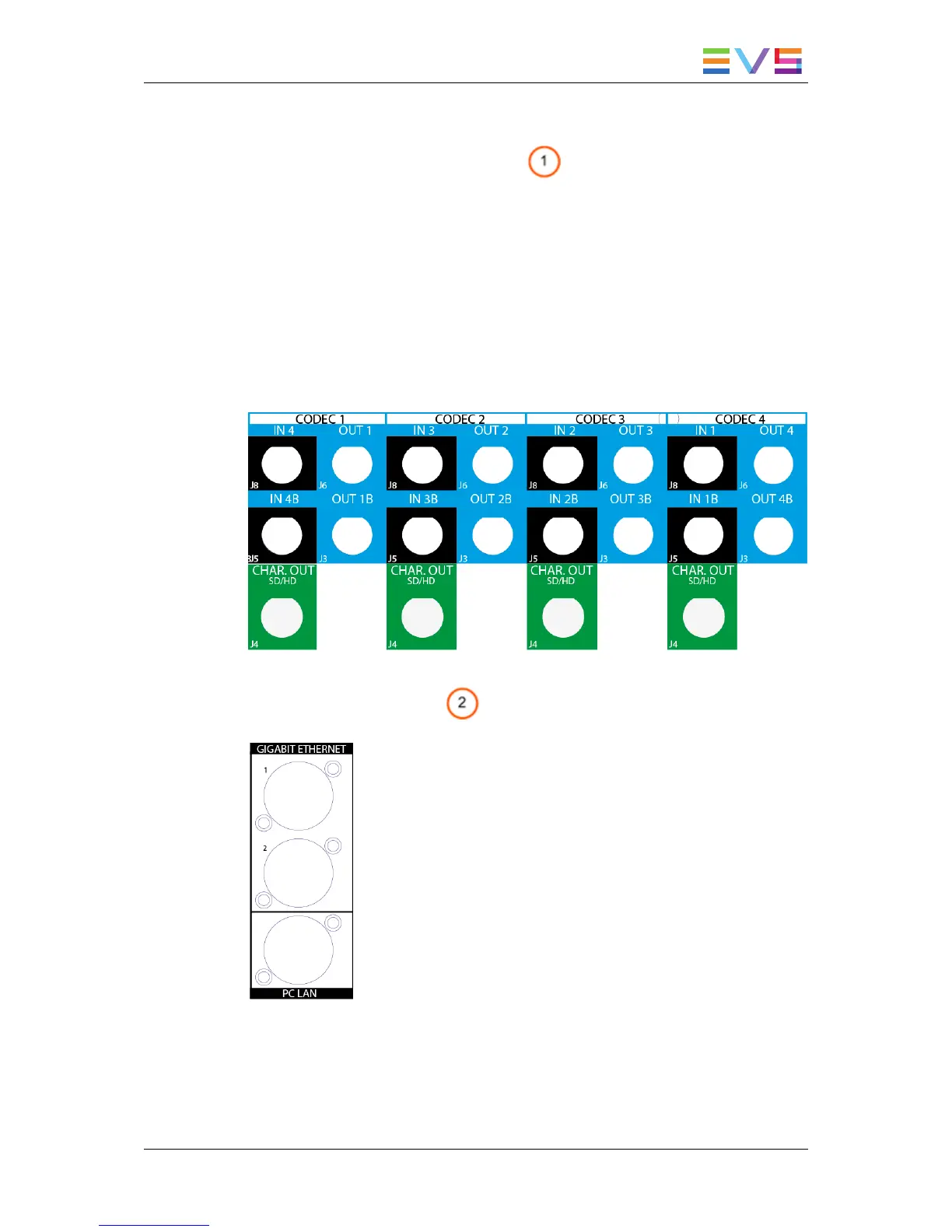

The following video and codecs connectors layout is available:
Network Connectors
This rear panel part presents the following connectors:
• The Gigabit Ethernet connectors allow the interconnection of
servers, other EVS, and/or third-party systems into a Gigabit
Ethernet network.
• The PC LAN connector allows connection of the PC LAN
interface of the EVSserver to an Ethernet network.
HARDWARE TECHNICAL REFERENCE MANUAL XTnano Server 12.02
5. Hardware Installation and Cabling 27
