EVS XT nano User Manual

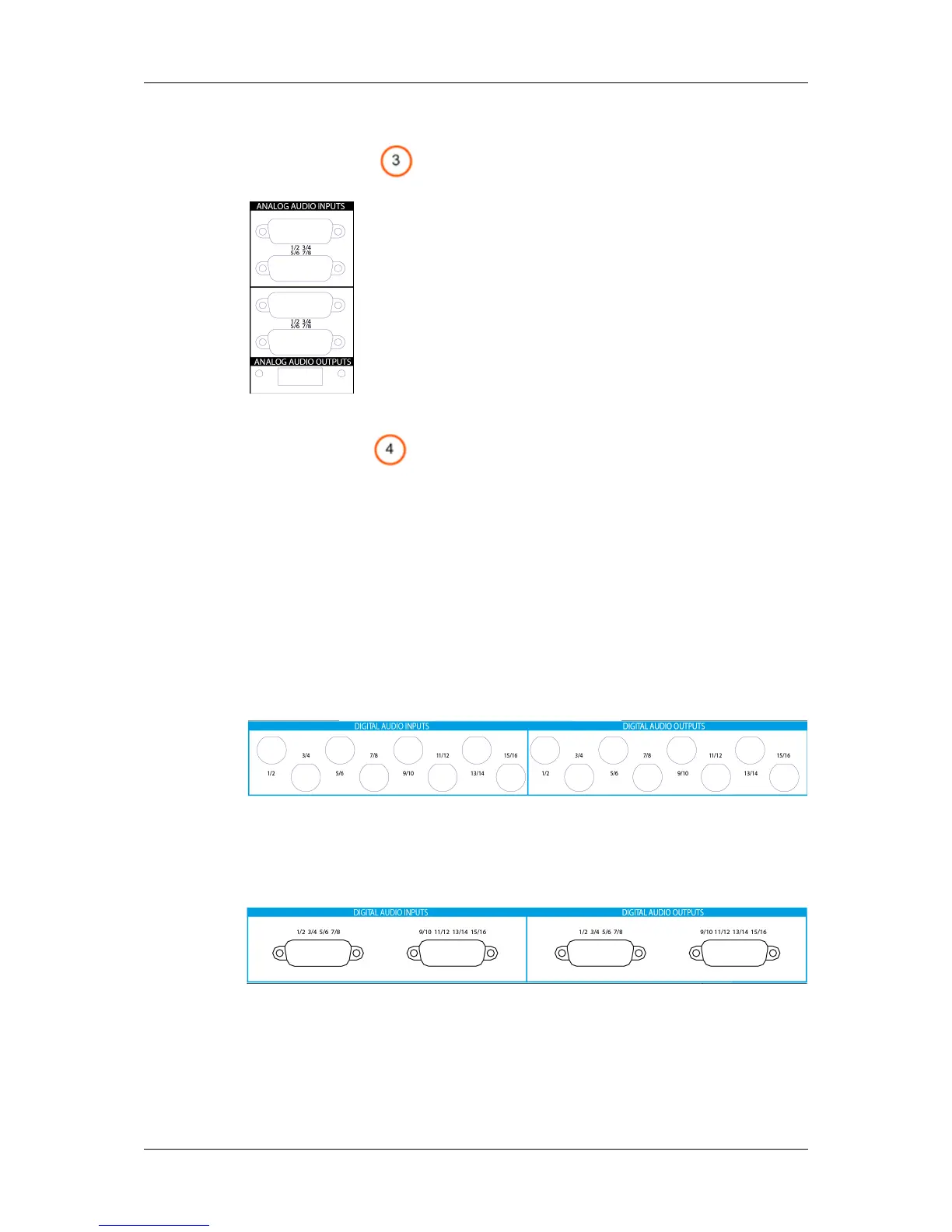

Analog Audio
The analog audio inputs and outputs are available on 4 multi-pin DA-
15 connectors with (2in and 2out) for audio signal inputs and outputs
in analog format.
See section "Audio Connections" on page 30 for more details on the
DA-15 connectors pinout according to the various configurations.
The connector below the analog audio inputs/ouputs is not used.
Digital Audio
The digital audio inputs and outputs are available on BNC or on multi-pin (DA-15)
connectors for audio signals input and output in digital format.
See section "Audio Connections" on page 30 for more details on the DA-15 connector
pinout according to the different configurations.
The following digital audio connectors layouts are available depending on your
configuration.
BNCConnectors
The digital audio module with BNC connectors includes 16 BNC connectors (8 in and 8
out) with the following layout:
DA-15 Connectors
The digital audio module with DA-15 connectors includes 4 multi-pin DA-15 connectors
(2in and 2out) with the following layout:
28 5. Hardware Installation and Cabling
EVS Broadcast Equipment SA Issue 12.02.A- December 2013
