EVS XT nano User Manual

5.2. Rear Panel Description
5.2.1. Rear Panel Configurations
The XTnano server is available in the following configuration(s):
• 4U rack with 4 or 2 codec modules and various audio connectors.
5.2.2. 4U Rear Panel Layout
Rear Panel Areas

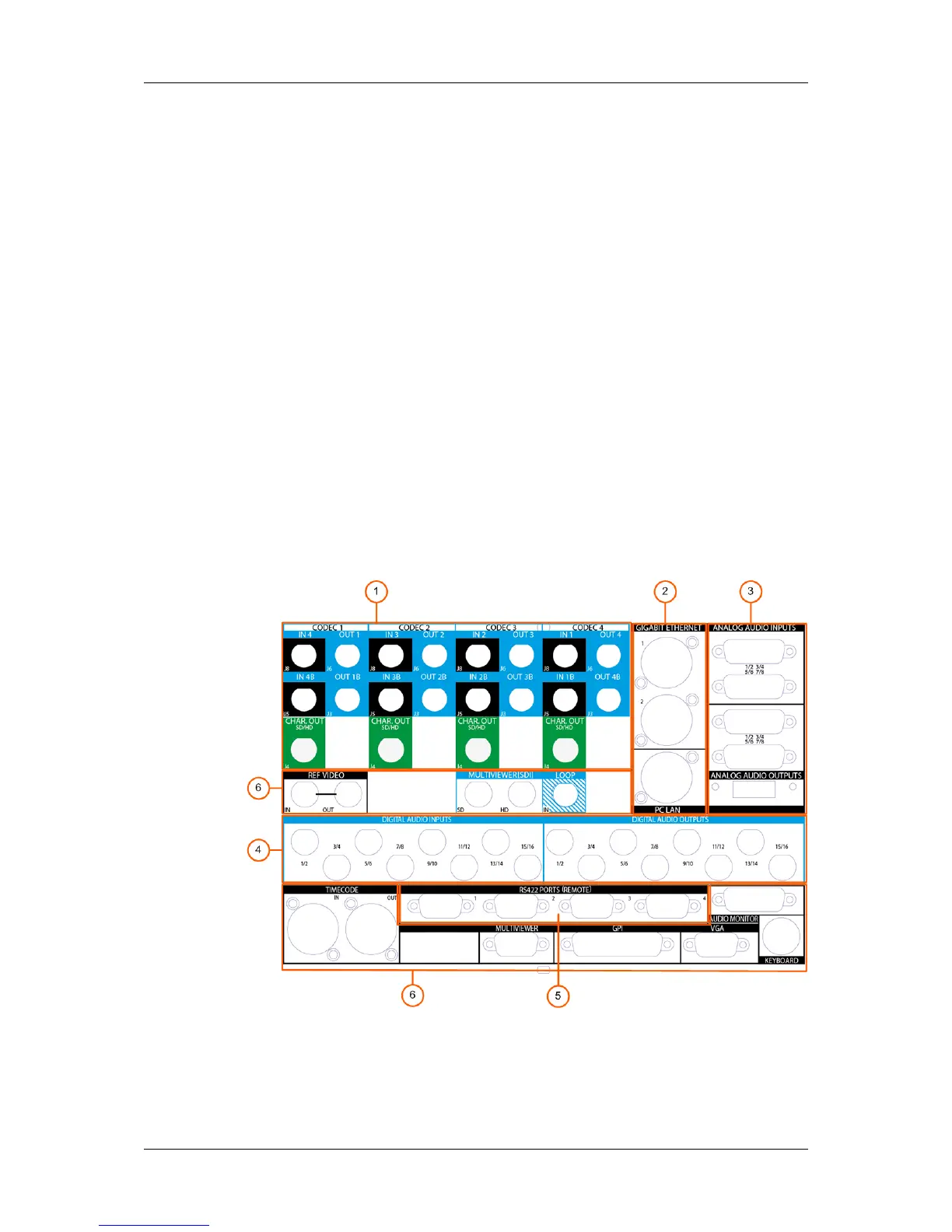

The following drawing represents an example of a 4U rear panel available on an XTnano
server. The two power supply units are located on the right of the rear panel, but are not
shown on the drawing.
The various areas of the rear panel are highlighted in the drawing and their respective
variants are listed in the sections below along with a short description of the related
connectors.
26 5. Hardware Installation and Cabling
EVS Broadcast Equipment SA Issue 12.02.A- December 2013
