1.4.2 SAS-HDX

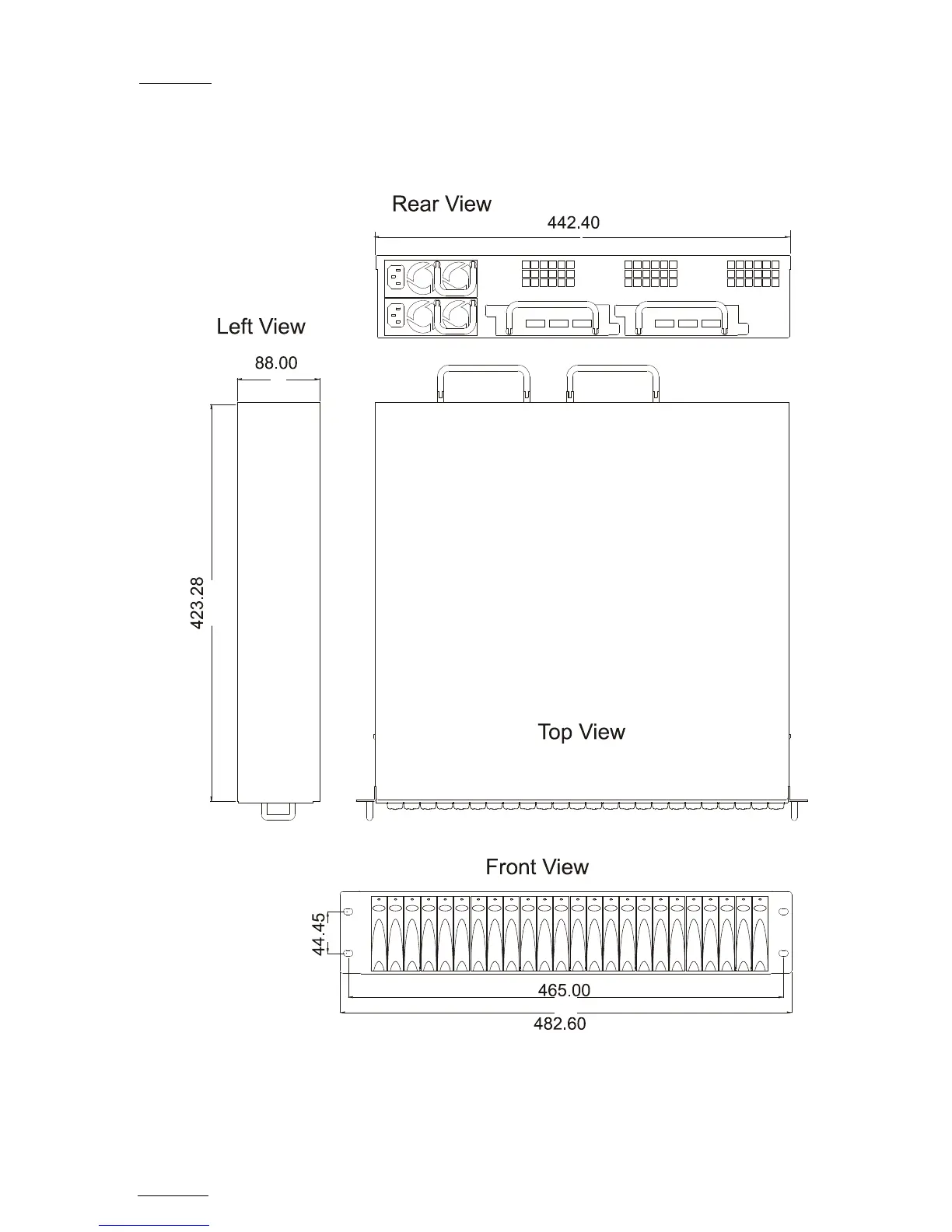

The following drawings provide the various dimensions, in mm, of the SAS-HDX
external array.
For more information on the SAS-HDX, refer to section 3.4.3 “External RAID Array
SAS-HDX for XT2+ Server”, on page 72.
