2.1.2 XT2 WITH V3X BOARD

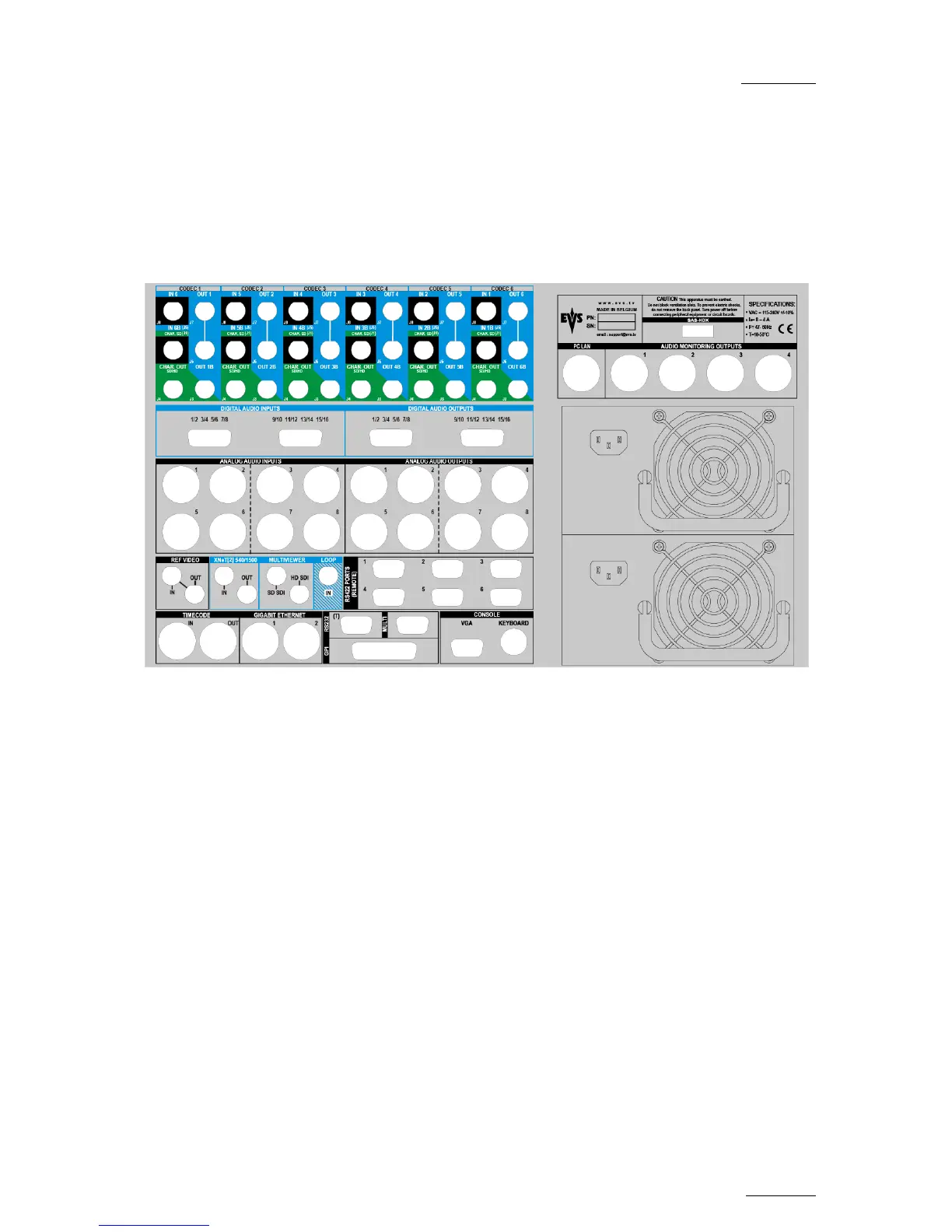

The following drawing represents a rear panel of an XT2+ fitted with a V3X board.
The digital audio inputs are multi-pin connectors, but can also be BNC connectors,
as represented on the drawing of the XT2 rear panel with a COHX board.
