XT2+ Series DISK RECORDER - Version 10.05 - Hardware Technical Reference Manual
Issue
10.05.A
EVS Broadcast Equipment SA July 2011
29

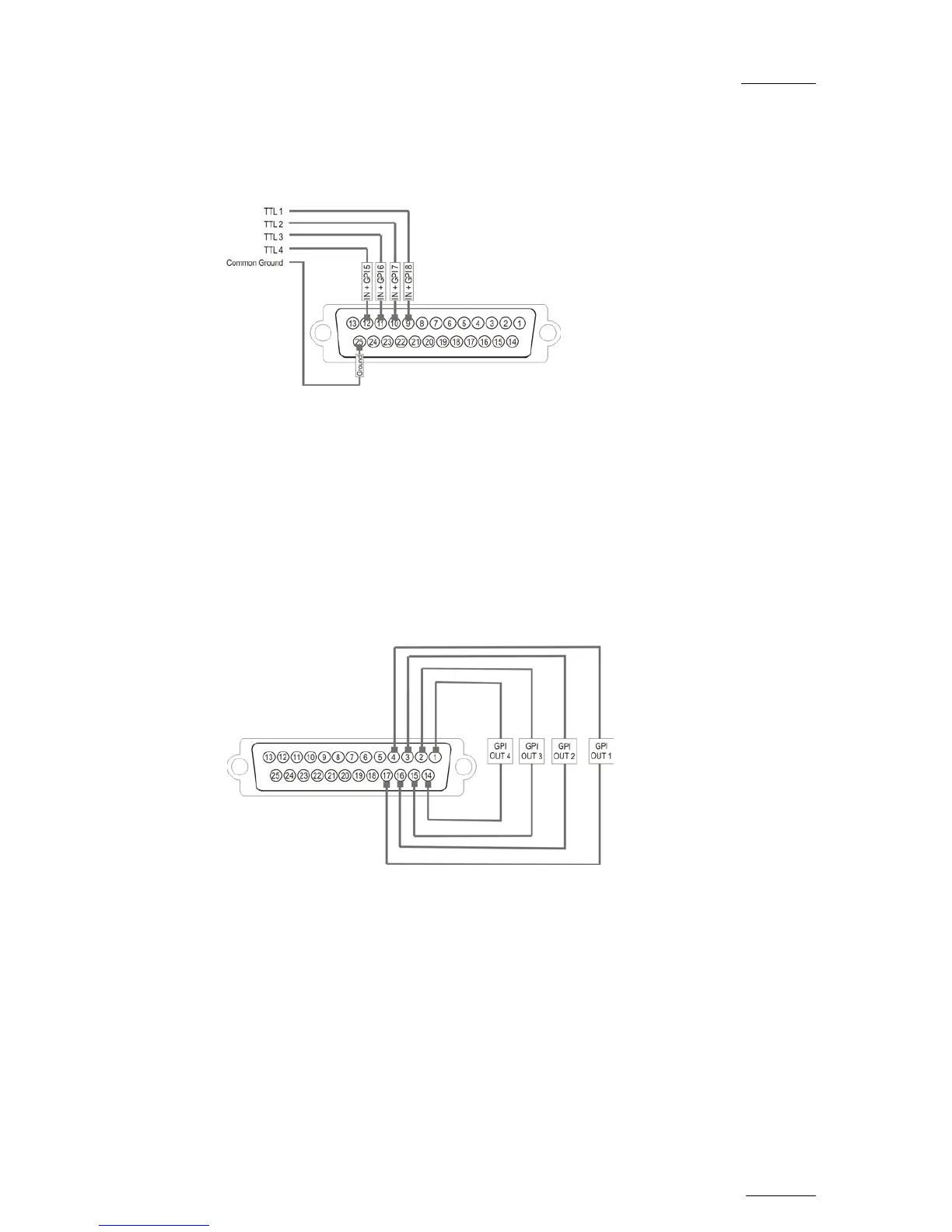

2.2.3 TTL TTL INPUTS ON THE XT2+ SERVER (GPI INPUT 5, 6,
7, 8)
Each TTL input on the DB25 is directly connected to the pin of the TTL connector
on the device triggering the GPI. The ground must be common between the DB25
connector of the XT2+ and the external device.
2.3 GPI OUT SETTINGS
The user can define the functions, types and settings associated to the GPI outs
in the following applications:
Setup menu of the Remote Panel (pages 8.3 & 8.4)
IP Director settings (GPI and Auxiliary Track tab)
