EVS XT2+ User Manual

Issue
10.05.A
XT2+ Series DISK RECORDER – Version 10.05 - Hardware Technical Reference
EVS Broadcast Equipment SA – July 2011
26
2. Cabling
2.1 XT2+ REAR PANEL
The two main drawings presented in this section show the rear panels of an XT2+,
with respectively a COHX or V3X board. The BNC IN/OUT connectors are slightly
different.
2.1.1 XT2+ WITH COHX BOARD

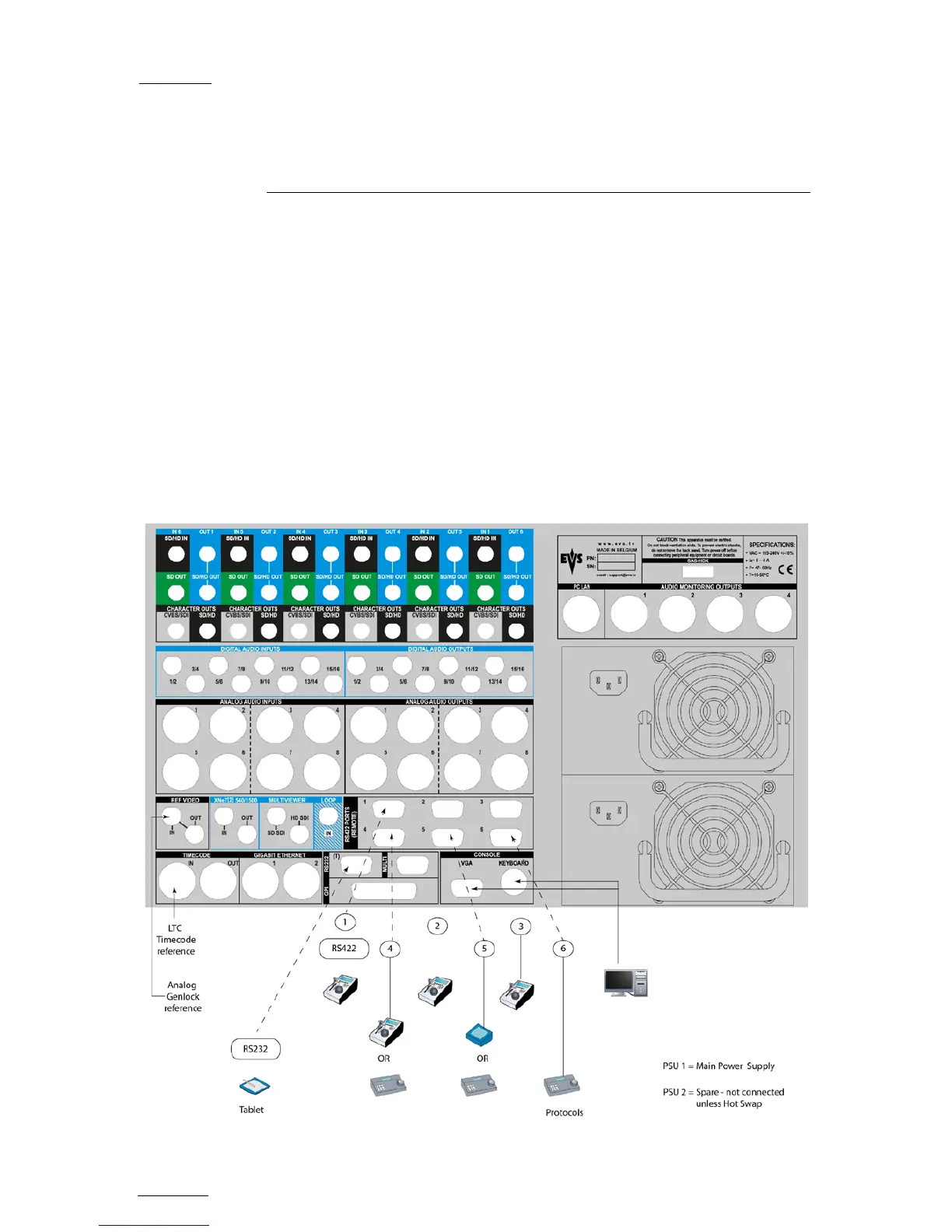

The following drawing represents a rear panel of an XT2+ fitted with a COHX
board.
The digital audio inputs are BNC connectors, but can also be multi-pin connectors,
as represented on the drawing of the XT2+ rear panel with a V3X board.

EVS XT2+ Specifications

General

Brand	EVS
Model	XT2+
Category	Server
Language	English
