EVS XT2+ - Audio Configurations; Coda for Xt2; Pin Assignment on Sub-Db15 Connectors

Issue
10.05.A
XT2+ Series DISK RECORDER – Version 10.05 - Hardware Technical Reference
EVS Broadcast Equipment SA – July 2011
32
The technical specifications for the RS422 connector are the following:
• 19200 bauds
• No parity
• 8 data bits
• 1 stop bit
2.6 AUDIO CONFIGURATIONS
2.6.1 CODA FOR XT2+
Internal Audio Module: Embedded + AES/EBU + Analogue Balanced
• Embedded Audio 64 channels (input or output)
• AES/EBU Audio 16 inputs + 16 outputs (110 Ohm balanced on SUB-DB15,
breakout cable with 4 XLR IN/OUT available optionally OR 75 Ohm unbalanced
on BNC)
• Analogue Balanced audio 8 inputs + 8 outputs (110 Ohm balanced on SUB-
DB15, breakout cable with 4 XLR IN/OUT available optionally OR XLR)
• Audio monitoring : 4 analogue balanced mono outputs (XLR)

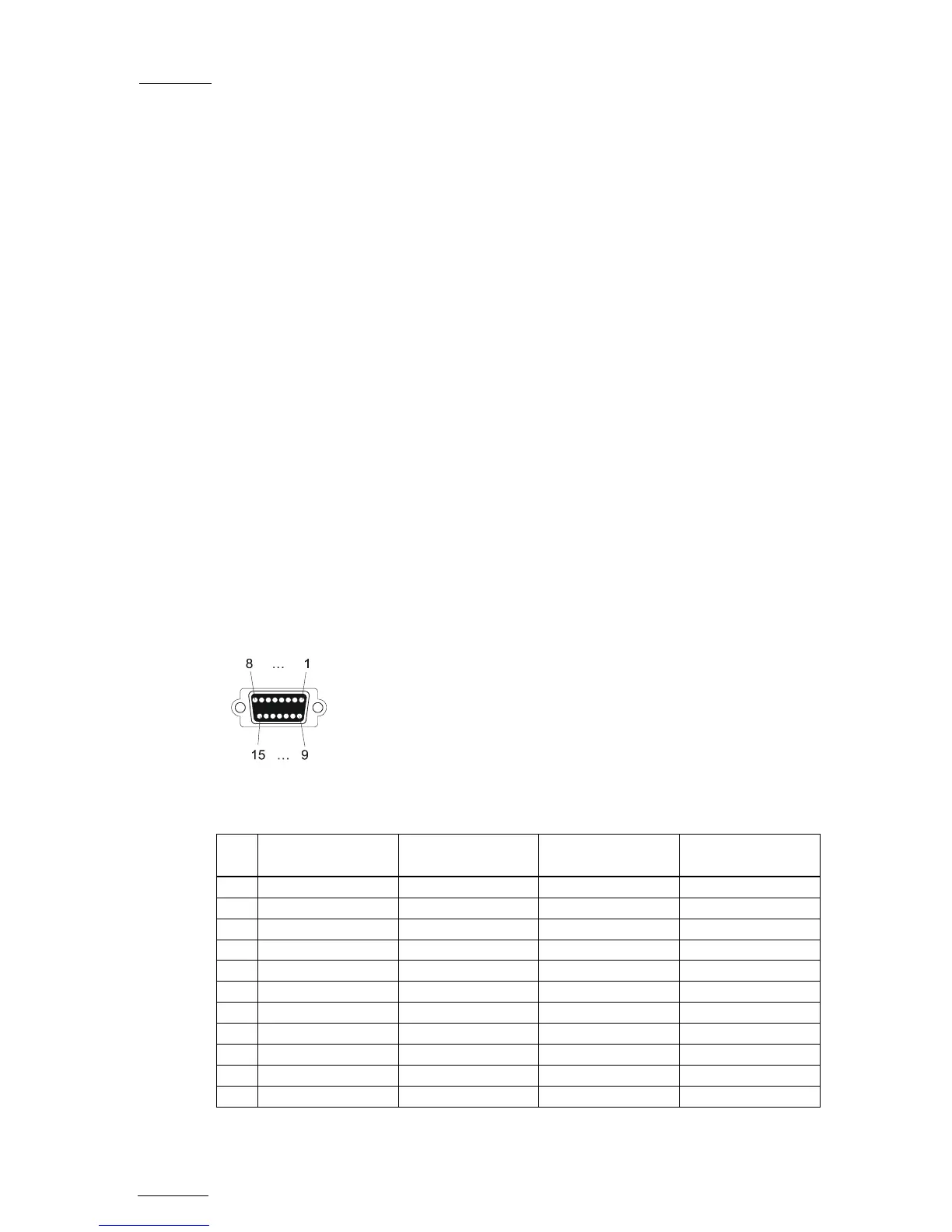

2.6.2 PIN ASSIGNMENT ON SUB-DB15 CONNECTORS
AES DB15 Connectors
Pin
#
Sub-DB15 #1
Inputs 1-8 (mono)
Sub-DB15 #2
Inputs 9-16 (mono)
Sub-DB15 #3
Outputs 1-8 (mono)
Sub-DB15 #4
Outputs 9-16 (mono)
1
GND
GND
GND
GND
2
AES input 1/2 +
AES input 9/10 +
AES output 1/2 +
AES output 9/10 +
3
GND
GND
GND
GND
4
AES input 3/4 +
AES input 11/12 +
AES output 3/4 +
AES output 11/12 +
5
GND
GND
GND
GND
6
AES input 5/6 +
AES input 13/14 +
AES output 5/6 +
AES output 13/14 +
7
GND
GND
GND
GND
8
AES input 7/8 +
AES input 15/16 +
AES output 7/8 +
AES output 15/16 +
9
AES input 1/2 -
AES input 9/10 -
AES output 1/2 -
AES output 9/10 -
10
GND
GND
GND
GND
11
AES input 3/4 -
AES input 11/12 -
AES output 3/4 -
AES output 11/12 -
