XT2+ Series DISK RECORDER - Version 10.05 - Hardware Technical Reference Manual

Issue

10.05.A

EVS Broadcast Equipment SA – July 2011

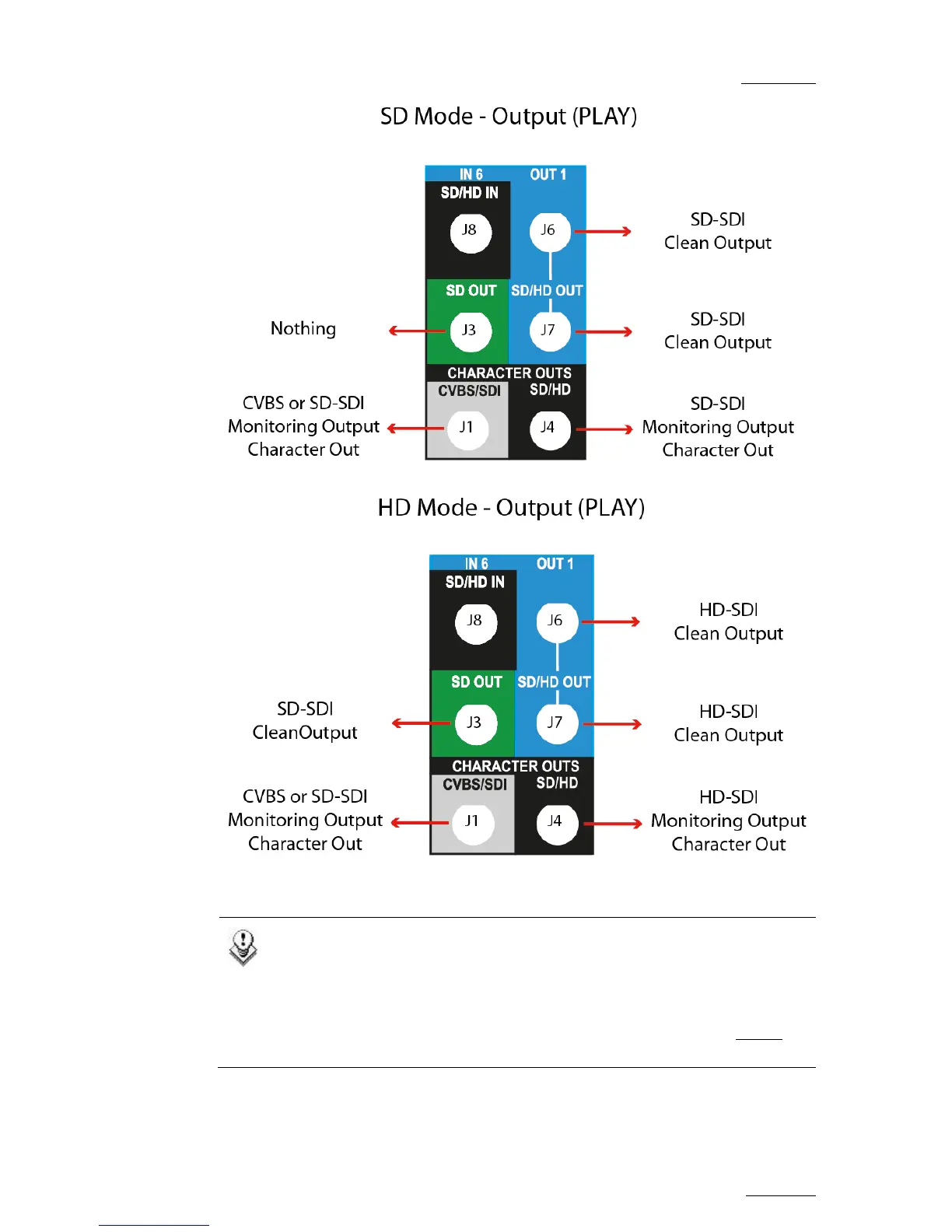

Note

Only front backplanes labelled BKP7 are compatible with COHX boards

(7 slots for 6U frames). The BKP7 backplanes (compatible with COHX

boards) have 3 rows of soldering per slot, while the backplanes

compatible with IO-E, COHD or COHU boards have 2 rows of soldering

per slot. Note that the top slot of BKP7 backplanes must always

connected to the HCTX board.
