EWM Pico 162 - Rear Panel Component Layout

Machine description
– quick overview
Rear view
16
099-002040-EW501
28.04.2014

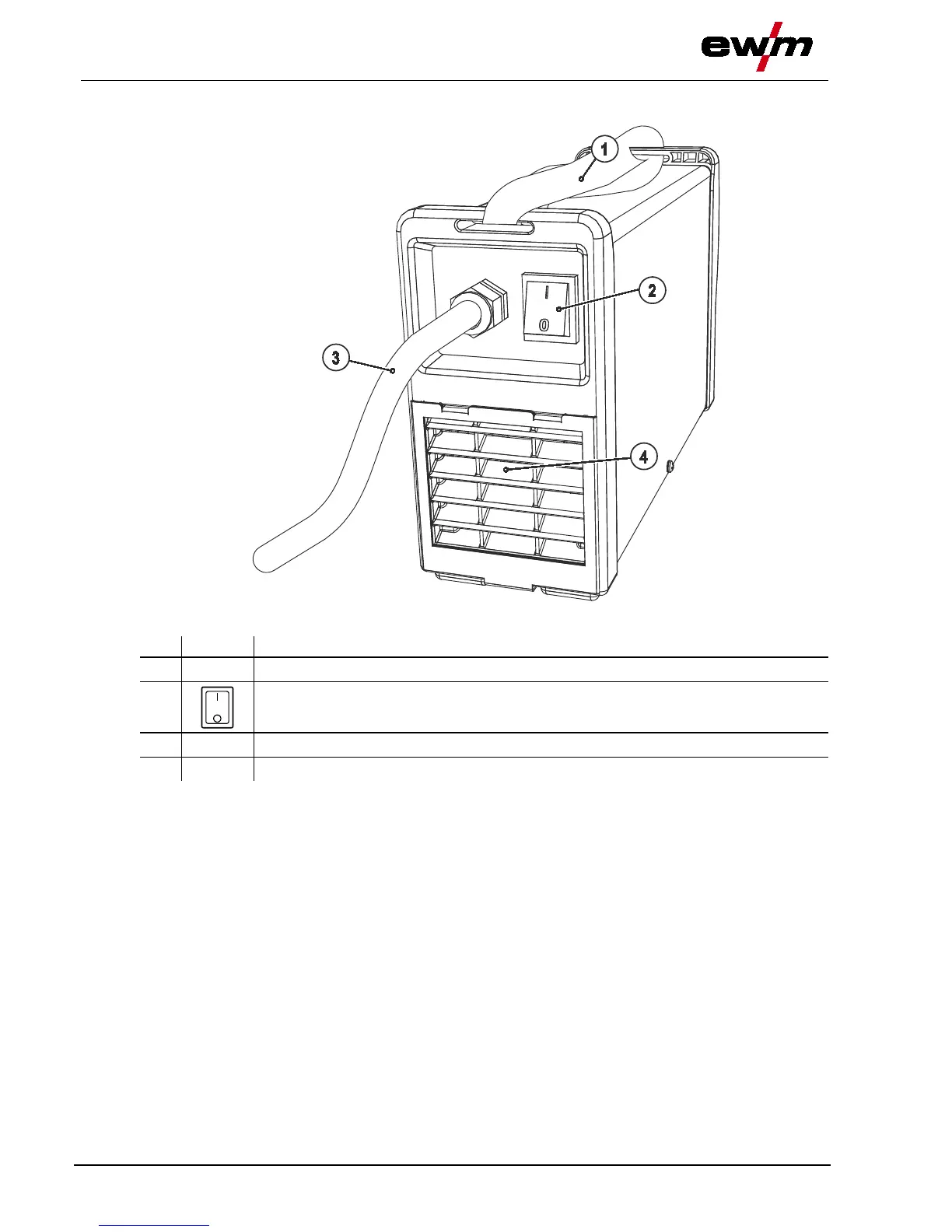

4.2 Rear view
Figure 4-2
Item
Symbol
Description 0
1
Carrying strap
2
Main switch, machine on/off
3 Mains connection cable
4
Cooling air inlet
