EWM Pico 162 - Connecting a TIG Welding Torch with Rotating Gas Valve

Design and function
TIG welding
26
099-002040-EW501
28.04.2014
5.6.1.2 Connecting a TIG welding torch with rotating gas valve
NOTE
Prepare welding torch according to the welding task in hand (see operating instructions
for the torch).

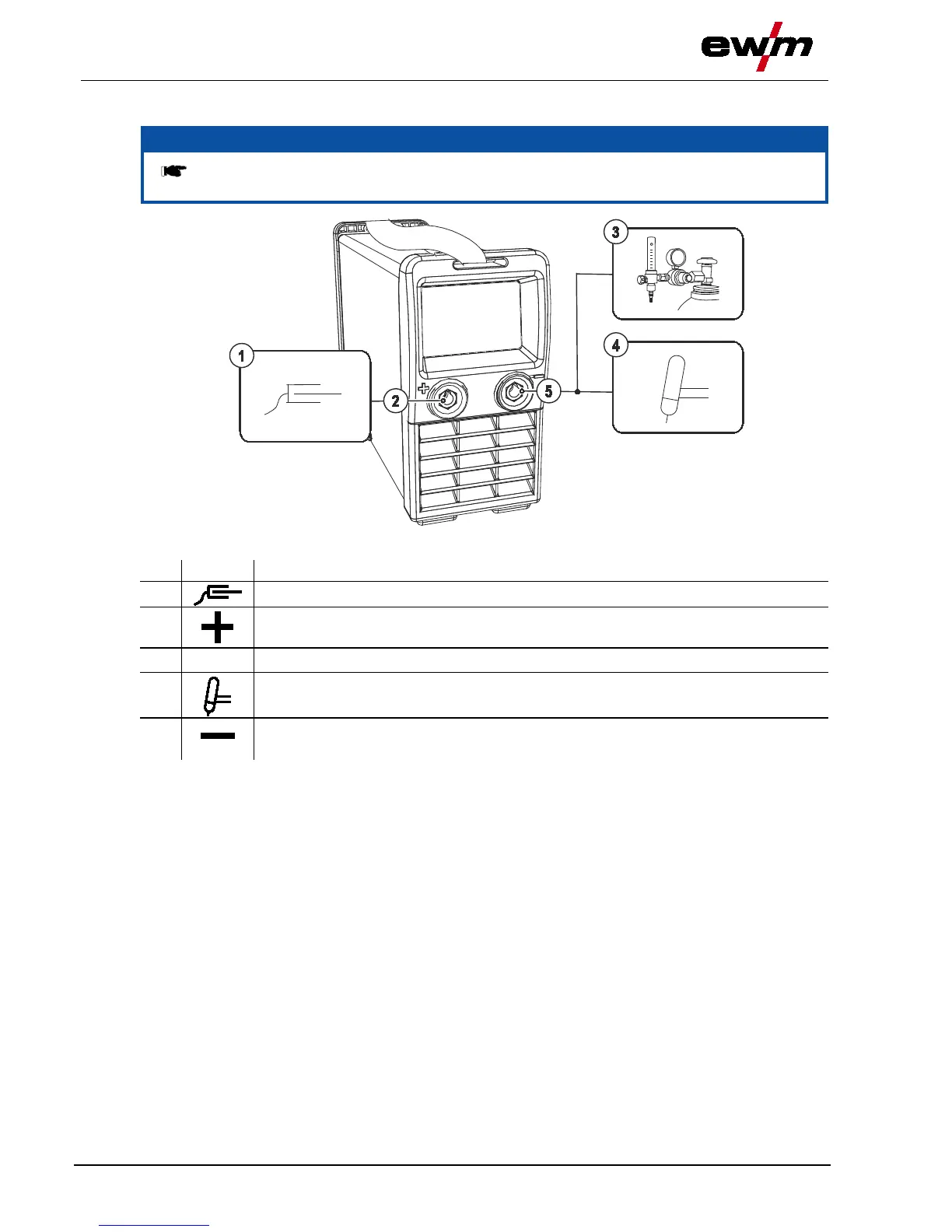

Figure 5-5
Item
Symbol
Description 0
1
Workpiece
2
Connection socket for "+" welding current
Workpiece lead connection
3
Output side of the pressure regulator
4
Welding torch
5
Connection socket, "-" welding current
Welding current lead connection for TIG welding torch
• Insert the cable plug on the work piece lead into the "+" welding current connection socket and lock by
turning to the right.
• Insert the welding current plug on the welding torch into the welding current connection socket and
lock by turning to the right.
