4.3 Machine control – Operating elements

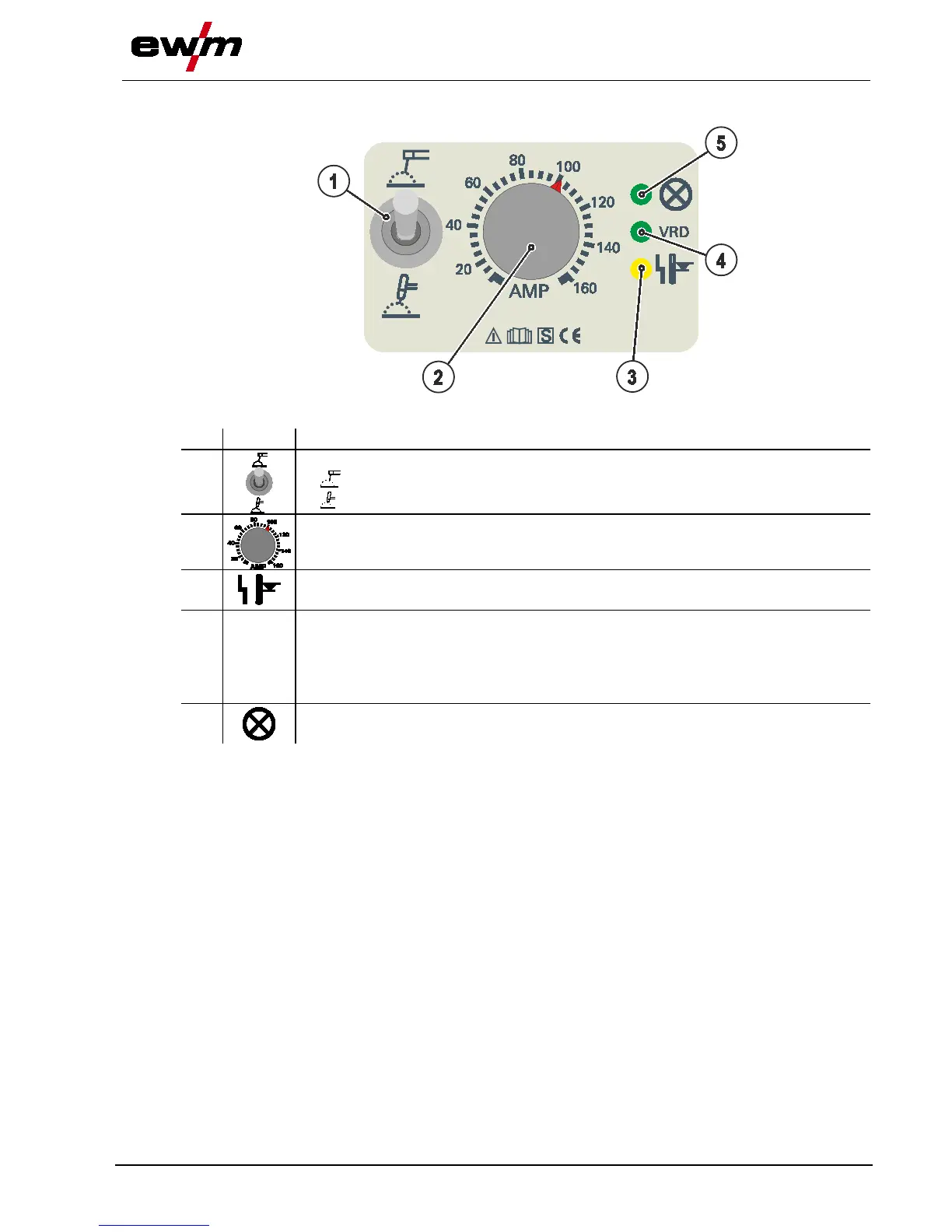

Figure 4-3
Item
Symbol
Description 0
1
Welding process changeover switch
• = MMA welding
• = TIG welding
2
Welding current rotary dial
Infinite adjustment of the welding current from 10A to maximum current
3
Functional error signal light
For error messages, see chapter on Rectifying faults
4 VRD
Voltage reduction device (VRD)
The VRD signal light is illuminated, when the voltage reduction device is operating
without fault and the output voltage is reduced to a value specified in the relevant
standard (see technical data). The voltage reduction device is only active on VRD
machine versions.
5
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
