Appendix A - Pin-outs & connections
A.4 - Connection over Hub/Switch/Router

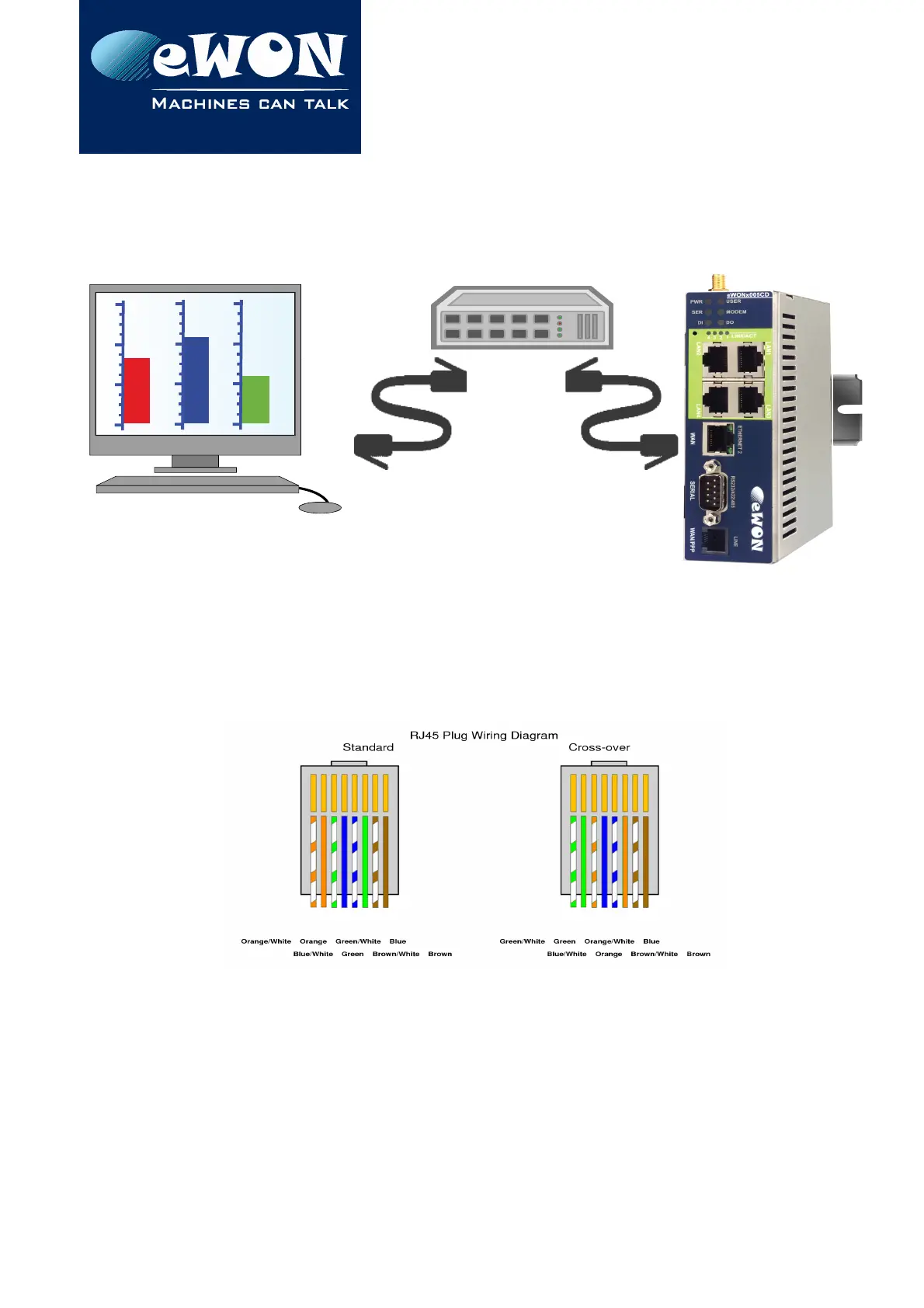

If the eWON is connected to a Hub/Switch, it has to be connected like any other device, with
a straight cable.
Again, the wiring is as shown on the following picture, and care should be taken to keep the
RX and TX signals on twisted pairs
A.5 - RJ-45 Connector
The RJ45 connector has got the following pins numbering, as it can be seen on the following
picture, showing it from different angles:
Page 29 / 36 eWON 2005CD | IG 001
