Appendix A - Pin-outs & connections
A.10 - Antenna
Connector specifications:

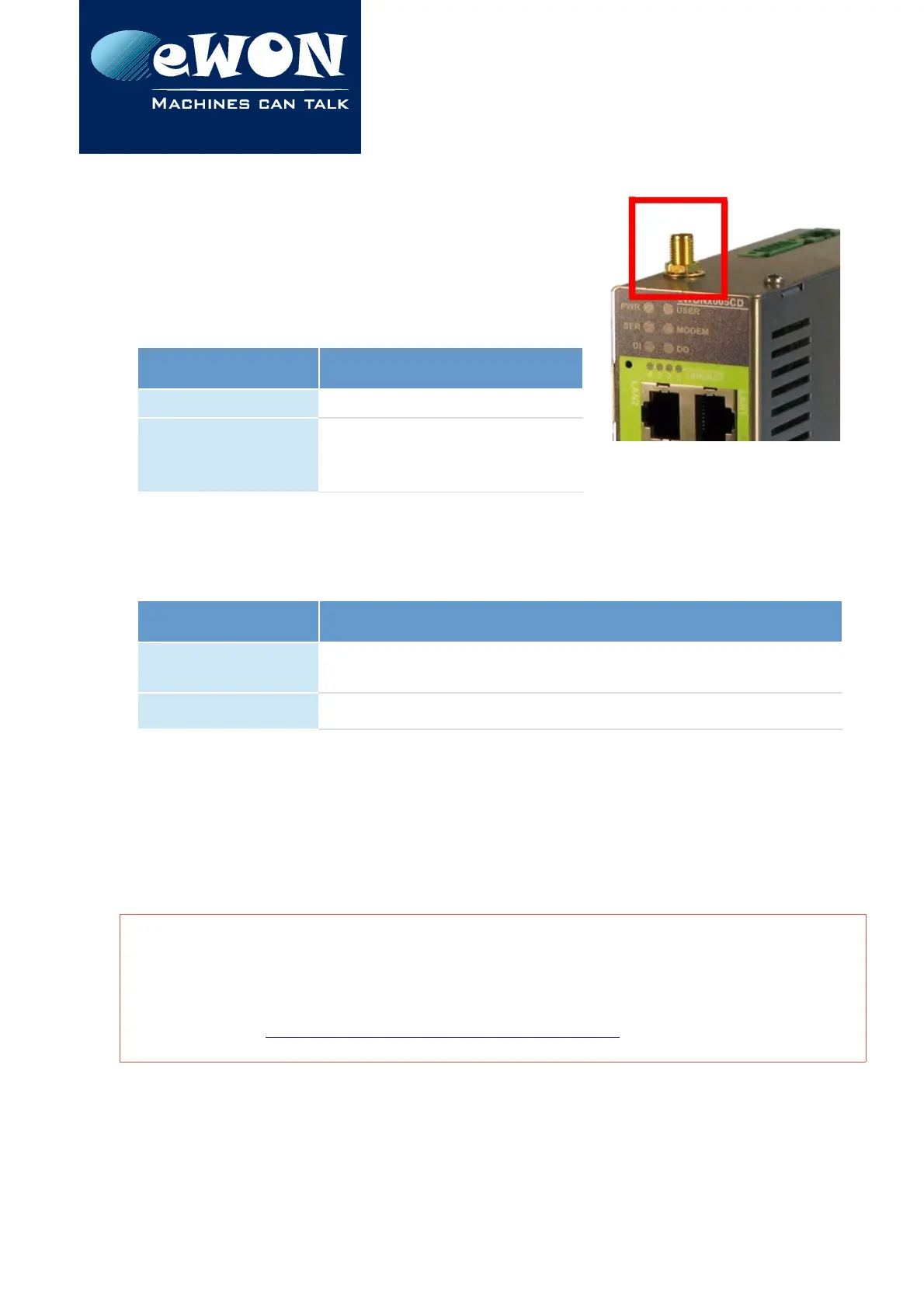

For eWON with GSM/GPRS/EDGE/HSUPA modem,
the antenna connector is placed on the top of eWON.
Specification Value
Type
SMA-F
Tightening
Torque
MAX 0.5N.m
(manual tightening should be
used as a reference)
Antenna specifications:
For eWON with GSM/GPRS/EDGE/HSUPA modem, the antenna specification is as follows:
Specification Value
Type
Quad-band 850/900/1800/1900 MHz
Impedance
50 Ohms
Devices conformity has been assessed with the reference antenna : Kinsun 6602G01081.
eWON reference for the antenna is EW40923 or EW40922 for the antenna with a 2 meters length
extension cable.
The use of different antenna may affect the compliance of the product.
- Important -
The antenna used for this transmitter has to be installed to provide a distance of at least 20
cm from any person and may not be co-located or operating in conjunction with any other
antenna or transmitter.
Also refer to the Safety, Environmental & Regulatory information.
Page 34 / 36 eWON 2005CD | IG 001
