Excel AG Series - Recipe Page Configuration

AG-Series
15

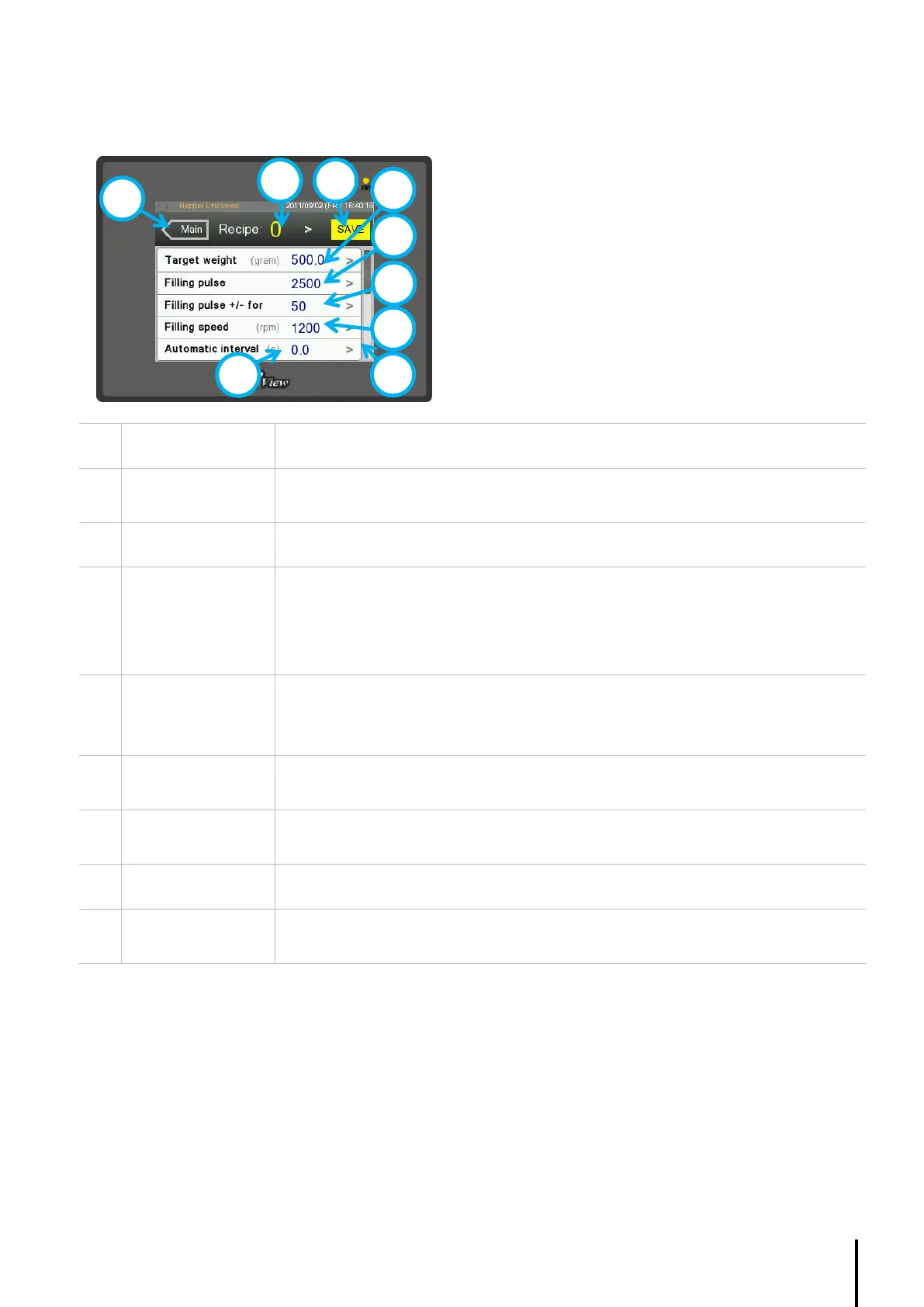

4.4.2. Recipe Page (1 of 3)
1
Main button
Return to Home page
2
Recipe number
Displays the Recipe selected.
Press ‘>’ to change.
3
Save button
Press to save setting into the PLC’s memory.
4
Filling target
Displays the Filling target for the according Recipe.
Press ‘>’ to change.
The purpose of this value is for reference only; filling weight is determined by the
pulse.
5
Filling pulse
Displays the Filling pulse for the according Recipe.
Press ‘>’ to change.
This is the pulse issued from the PLC to the servo-motor driven.
6
+/- pulse
Displays the Increment / decrement pulse value for the according Recipe.
This value is determines the +/- value on the Home screen.
7
Filling speed
Displays the Filling speed for the according Recipe.
Press ‘>’ to change.
8
Scroll down button
Shows page 2 of the Recipe page
9
Automatic interval
Displays the interval for Automatic filling mode.
Press ‘>’ to change.
