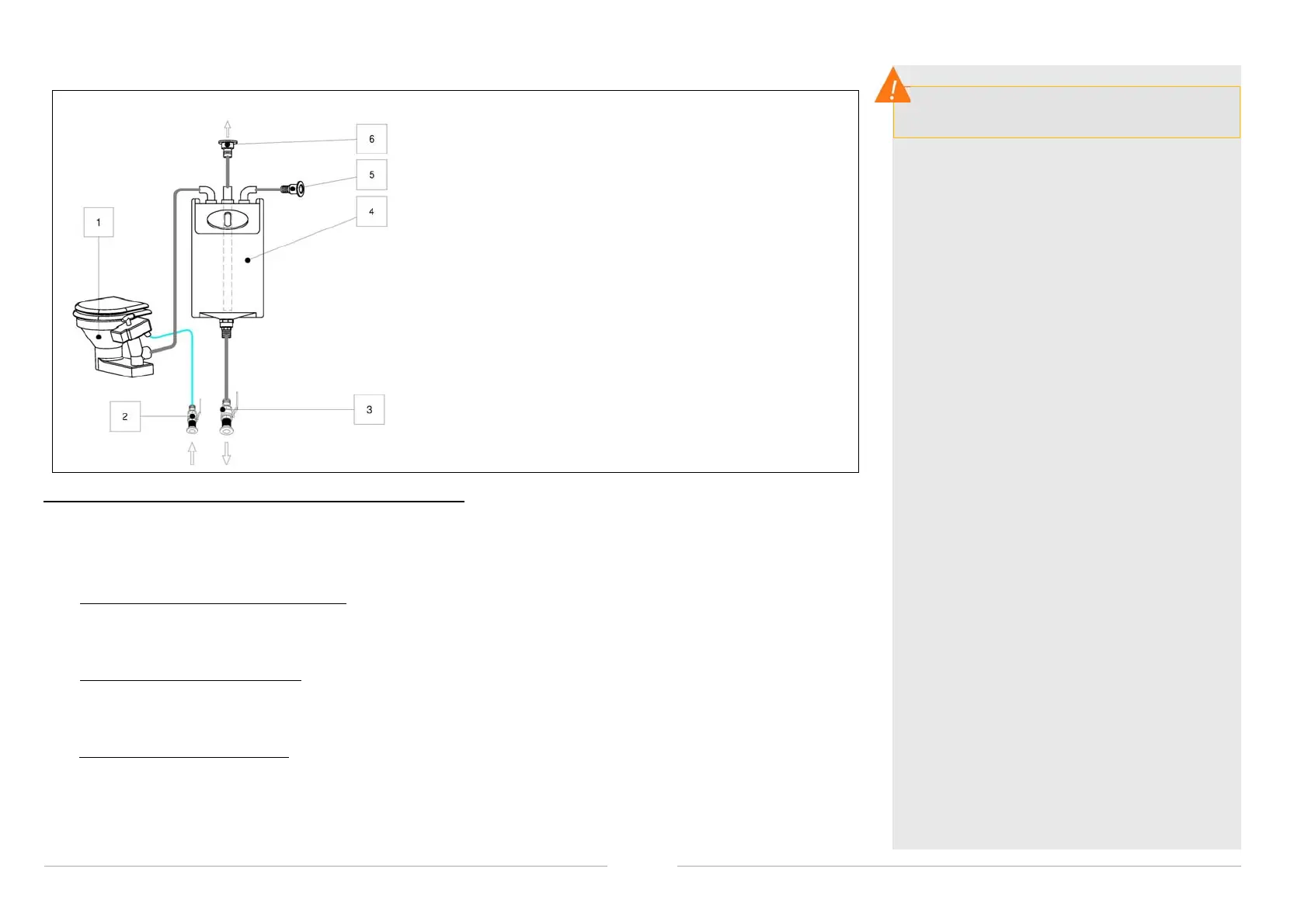

Layout diagram of blackwater system
Using a marine toilet fitted with a tank emptied by gravity
I. Open the seawater intake valve (Ref 2).
II. Fill the bowl by using the manual toilet pump.
III. Using the toilet (Ref 1).
IV.a. To empty the organic waste in the tank
:
- Make sure the thru-hull seacock (Ref 3) is closed.
- Empty the bowl using the manual toilet pump.
IV.b. For direct discharge into the sea
:
- Open the thru-hull seacock (Ref 3).
- Empty the bowl using the manual toilet pump.
IV.c. To discharge through the deck
:
- Open the deck connection marked "WASTE" (Ref 6).
- Use the pump-out system where fitted at a port.
Emptying by gravity
1. Toilet
2. Seawater intake valve
3. Thru-hull seacock
4. Blackwater tank
5. Vent
6. "WASTE" deck connection
Refer to the manufacturer's instructions for
use and maintenance.
