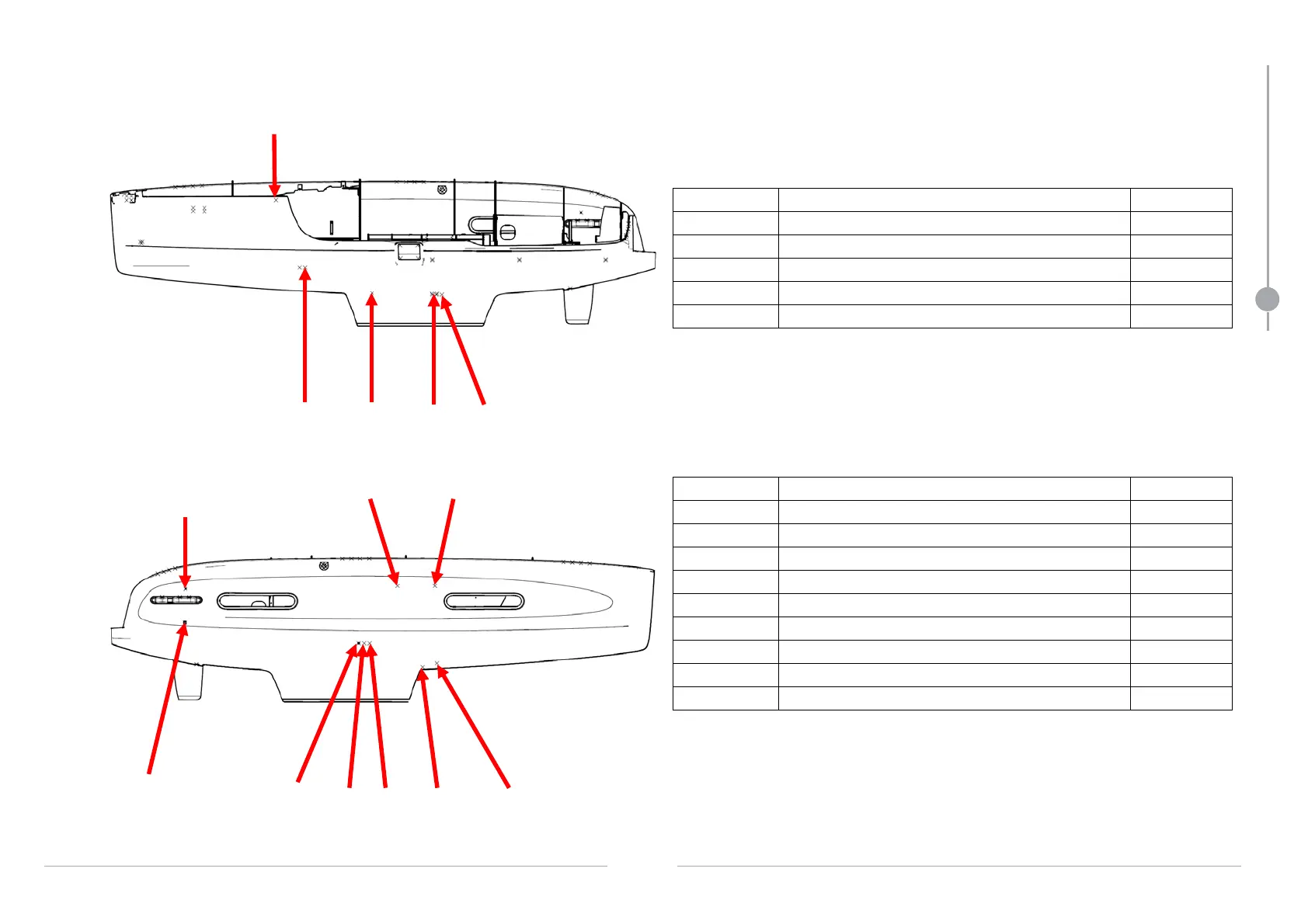

STARBOARD HULL

Inside view

Outside view

Reference Designation Valve

1 Additional water tank vent No

2 Washbasin and shower drain (3-cabin layout) Yes

3 WC seawater intake (4-cabin layout) Yes

4 Anode / Inverter earthing plate No

5 Seawater intake (Seawater electric pump) Yes

Reference Designation Valve

1 Starboard fuel tank vent No

2 Blackwater tank vent (4-cabin layout) No

3 Blackwater tank vent (3-cabin layout) No

4 Port engine exhaust No

5 Drain for starboard electric bilge pump Yes

6 Shower drainage (4-cabin layout) Yes

7 Head washbasin drainage (4-cabin layout) Yes

8 Blackwater drainage tank Yes

9 WC seawater intake (3-cabin layout) Yes

1

23

45

1

2

3

4

5

6

7

8

9
