209173 RCD-2

Index A

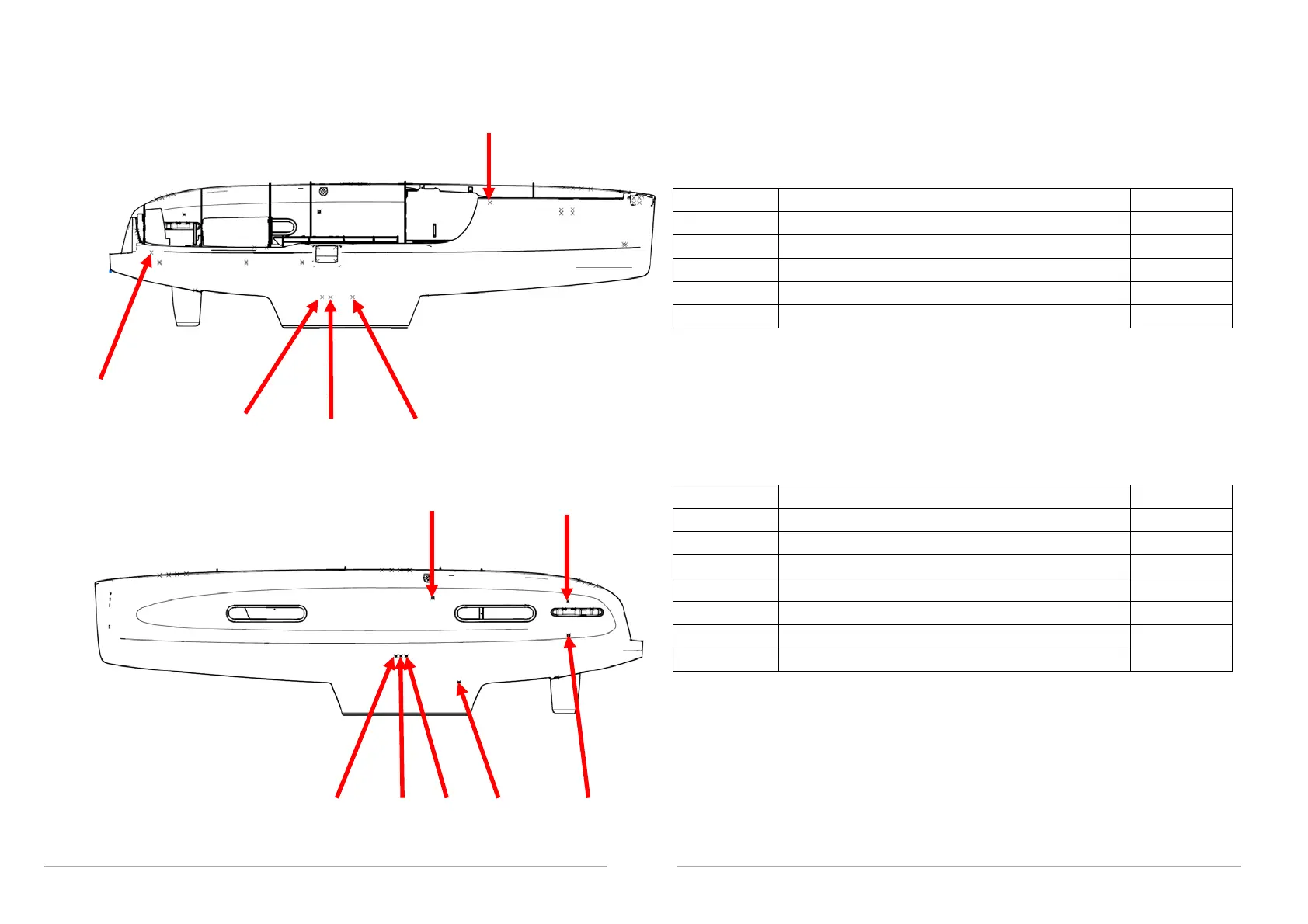

PORT SIDE HULL

Inside view

Outside view

Reference Designation Valve

1 Port side water tank vent (standard) No

2 Brine drainage (Watermaker) Yes

3 WC seawater intake Yes

4 Seawater intake (Watermaker) Yes

5 Seawater intake (Deck wash pump) Yes

Reference Designation Valve

1 Blackwater tank vent No

2 Port side fuel tank vent No

3 Head washbasin drainage Yes

4 Shower drainage Yes

5 Drain for port electric bilge pump Yes

6 Blackwater drainage tank Yes

7 Port engine exhaust No

1

2

3

4

5

1

2

3456 7
