8.2.2 Battery switches
Manual battery switches:
to make the system live, manually turn the positive and negative battery isolator switches.
Positive isolator switch Negative isolator switch
Location: Starboard engine compartment Location: Port engine compartment

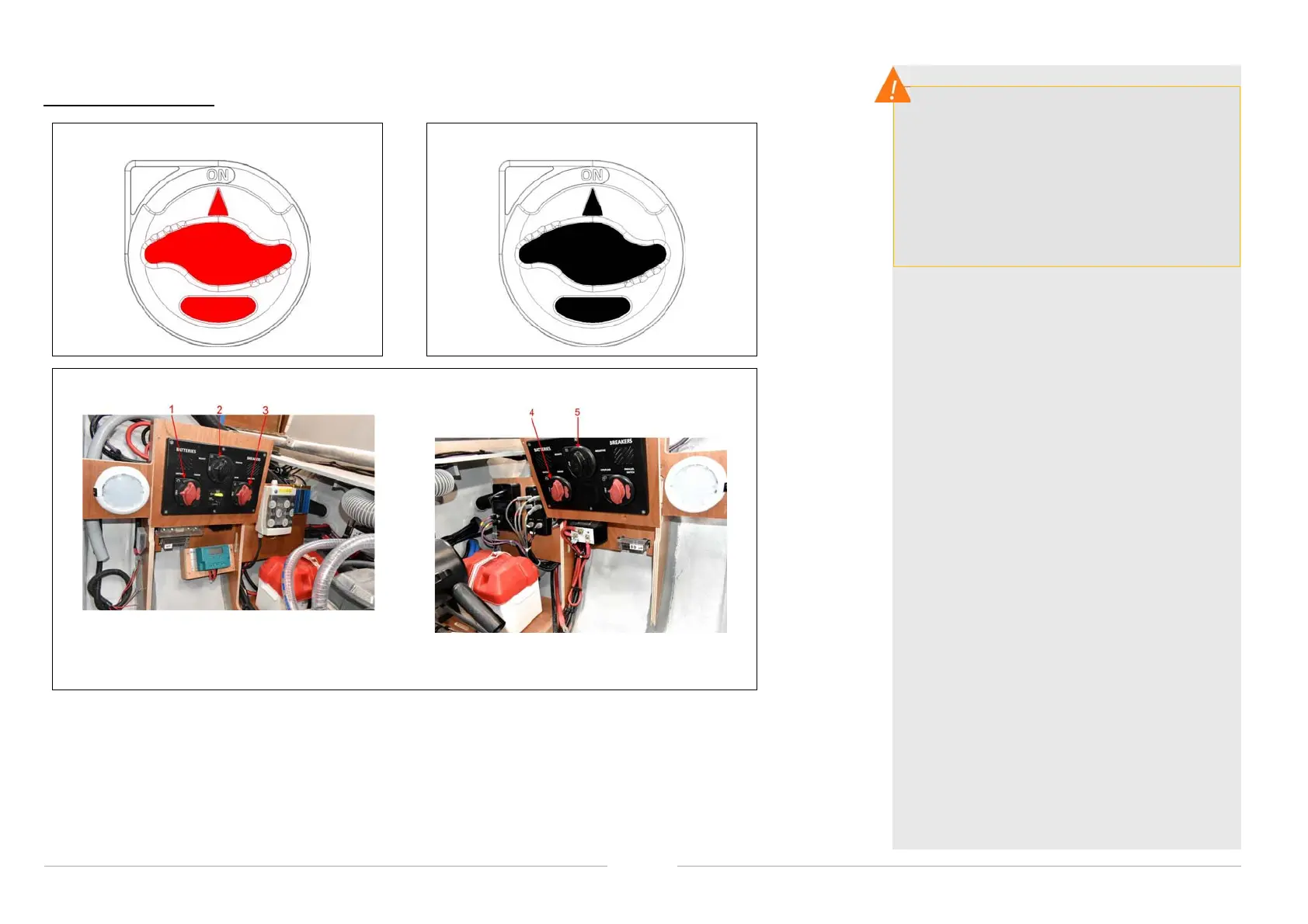

4. Starboard engine positive isolator switch
5. Starboard engine negative battery switch
1. Port engine positive isolator switch
2. Common battery negative isolator switch
3. Service batteries positive isolator switch
- Turn off all battery isolators before leaving
the vessel: failure to do so may result in
critical damage to the entire battery bank.
- Avoid touching the battery isolators when
they are live.
- Never switch off the battery isolators when
the boat's engine is running (risk of serious
damage to the charging circuit).
