17
ASSEMBLY
Step 6

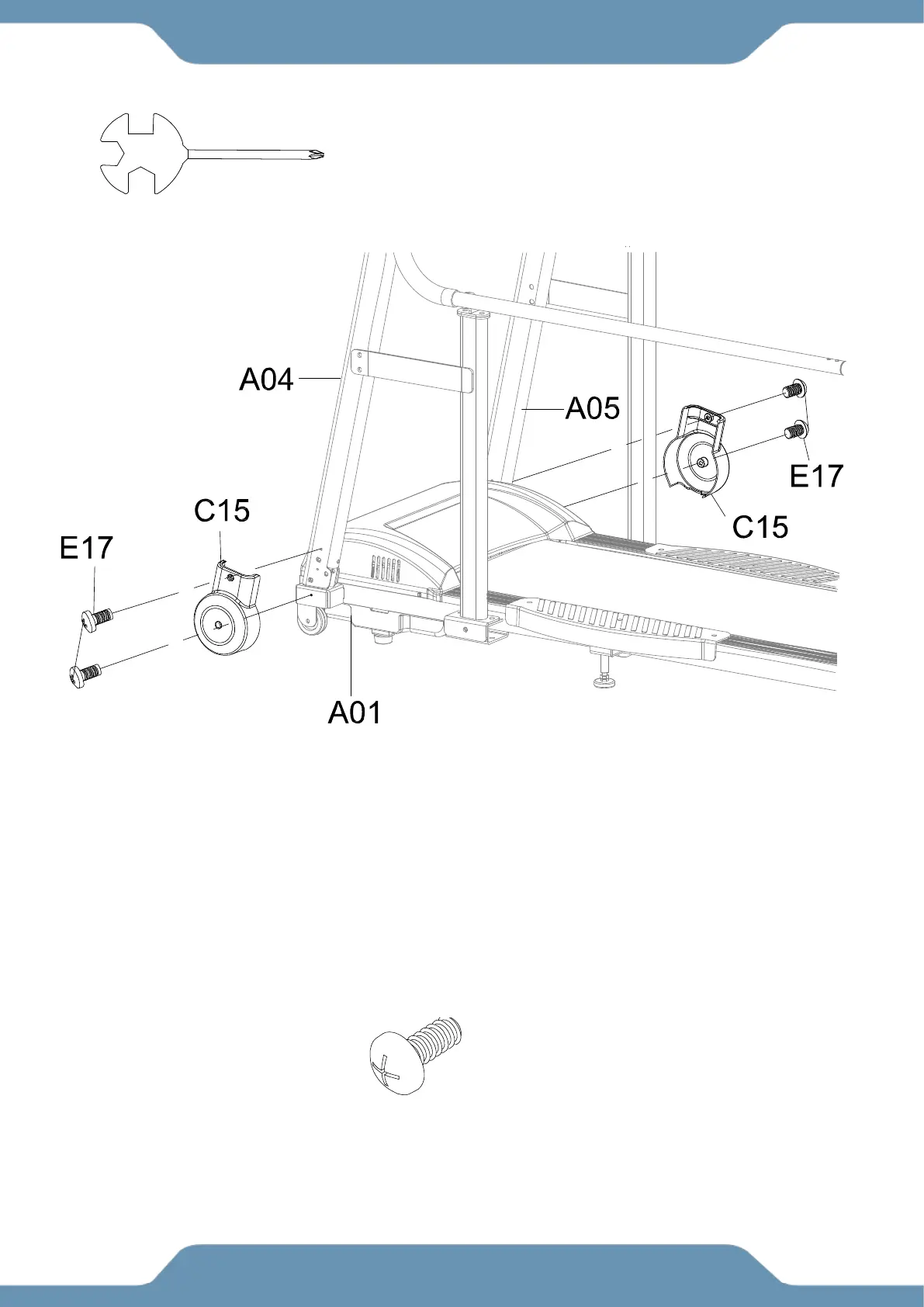

A. Installing the Upright Tube Covers:
A. Attach both Left & Right Upright Tube Covers (C15) on to Left & Right Upright
Tubes (A04) & (A05) with four Screws (E17)
B. Tighten the hardware with the Multi-Hex Tool with Phillips Screwdriver provided.
(E17) Screw M5x12
4 PCS
Hardware:
(B03) Multi Hex Tool with Phillips
Screwdriver 1PC
Tool:
