Operation
g030021

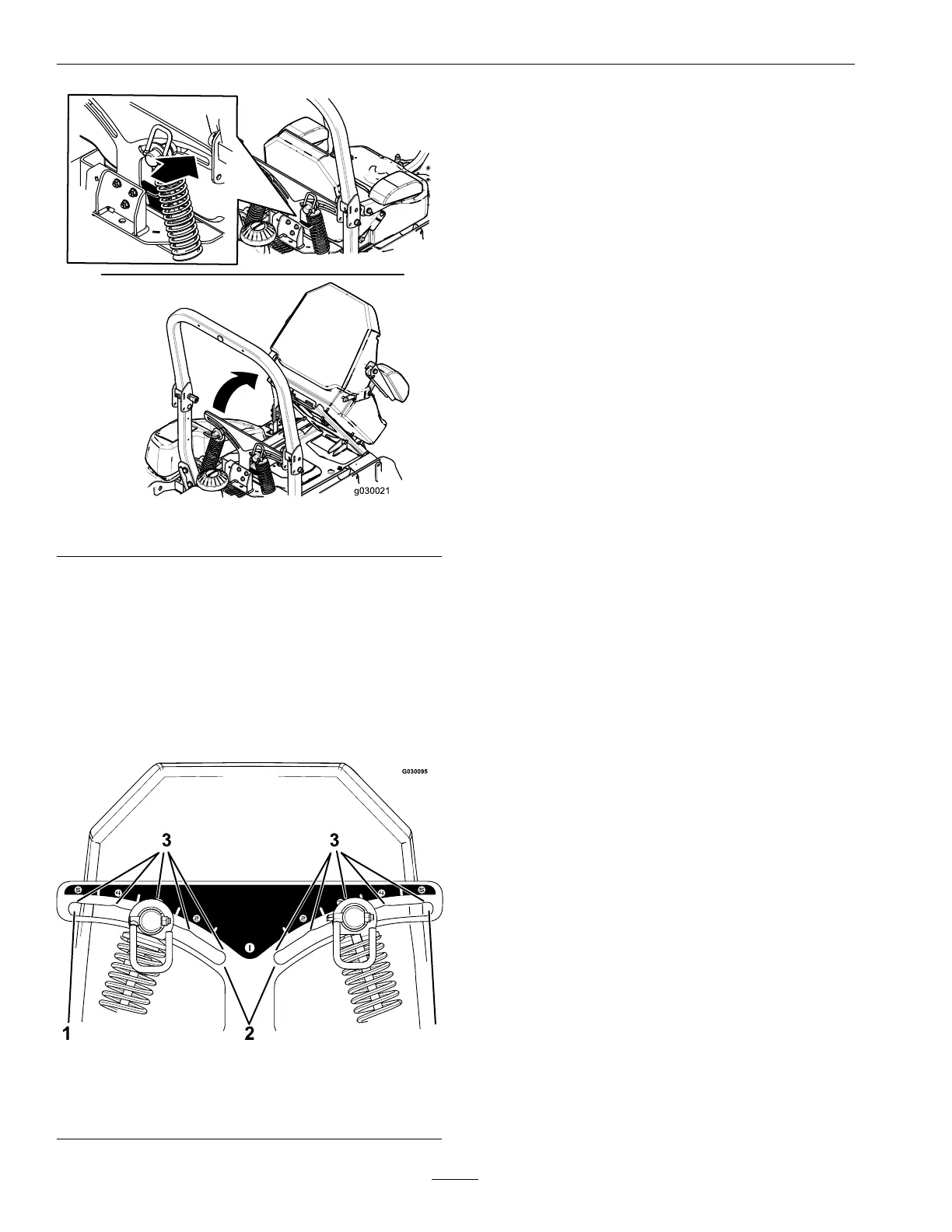

Figure31
•AdjustingtheRear,ShockAssemblies
Theslotsfortherear,shockassemblieshave
detentpositionsforreference.Therear,shock
assembliescanbepositionedanywhereintheslot,
notjustthedetentpositions.
Thefollowinggraphicshowsthepositionfora
softorrmrideandthedifferentdetentpositions
(Figure32).
g030095
Figure32
1.Firmestposition3.Detentsintheslots
2.Softestposition
Note:Ensuretheleftandrightrear,shock
assembliesarealwaysadjustedtothesame
positions.
Adjusttherear,shockassemblies(Figure33).
