Exmark LAZER Z Parts Manual

18

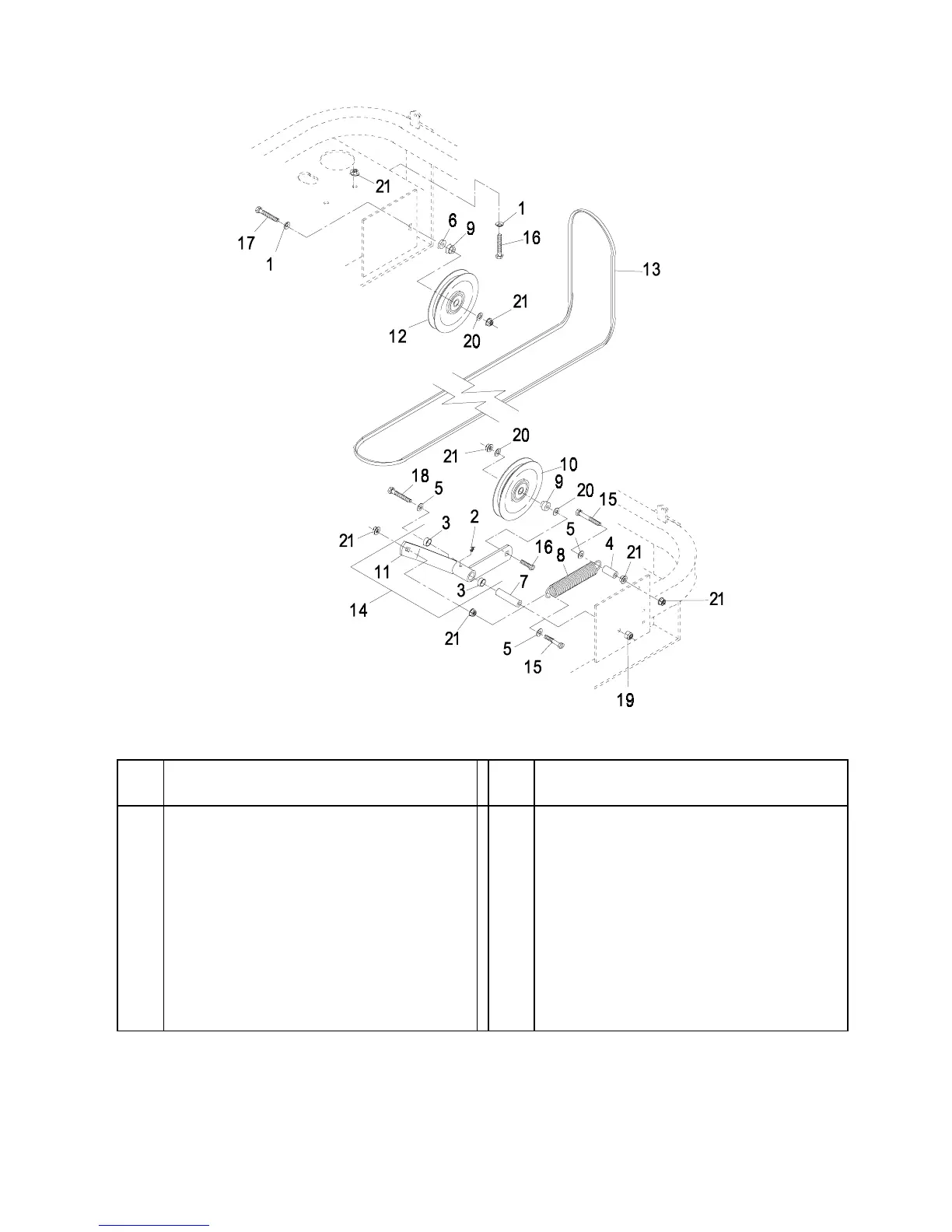

COMMON ENGINE DECK GROUP
Exmark black touch up spray paint - gloss black
Ref.
No.
Qty.
.Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1 303327 Washer, spring disc 3/8........... 5
12 633166 Pulley, idler.............................. 1
2
811008 Zerk, 1/4-20 (90º) .................... 1
13 633173 Belt, mule drive ....................... 1
3
513034 Bearing.................................... 2
14
632469 Arm, idler w/bushings.............. 1
4
603401 Spacer, spring ......................... 1
15
800297 Screw, 3/8-16 x 2 1/4.............. 2
5
805260 Washer, 3/8............................. 3
16
800295 Screw, 3/8-16 x 1 3/4 (Koh) .... 5
6
603050 Spacer..................................... 1 800295 Screw, 3/8-16 x 1 3/4 (Kaw).... 1
7
603384 Bushing, idler pivot.................. 1
17
800299 Screw, 3/8-16 x 2 3/4 ............. 1
8
603402 Spring, mule idler .................... 1
18
800805 Screw, 3/8-16 x 3 1/2.............. 1
9
603496 Bushing, idler........................... 2
19
804257 Nut, nylock 3/8 ........................ 1
10
603805 Pulley, idler.............................. 1
20
805259 Washer, 3/8 sae...................... 3
11
632468 Arm, idler................................. 1
21
809007 Nut, whizlock 3/8-16................ 10
∇ ∇
Use a Teflon Pipe Sealant or equivalent on threads.

Exmark LAZER Z Specifications

General

Engine Brand	Kawasaki
Transmission	Hydrostatic
Deck Construction	Fabricated or welded steel
Category	Commercial
Type	Commercial
Speed	10 mph
Turning Radius	Zero-turn
Fuel Capacity	10-15 gallons
Weight	1, 465 lbs
