Exmark LAZER Z Parts Manual

11

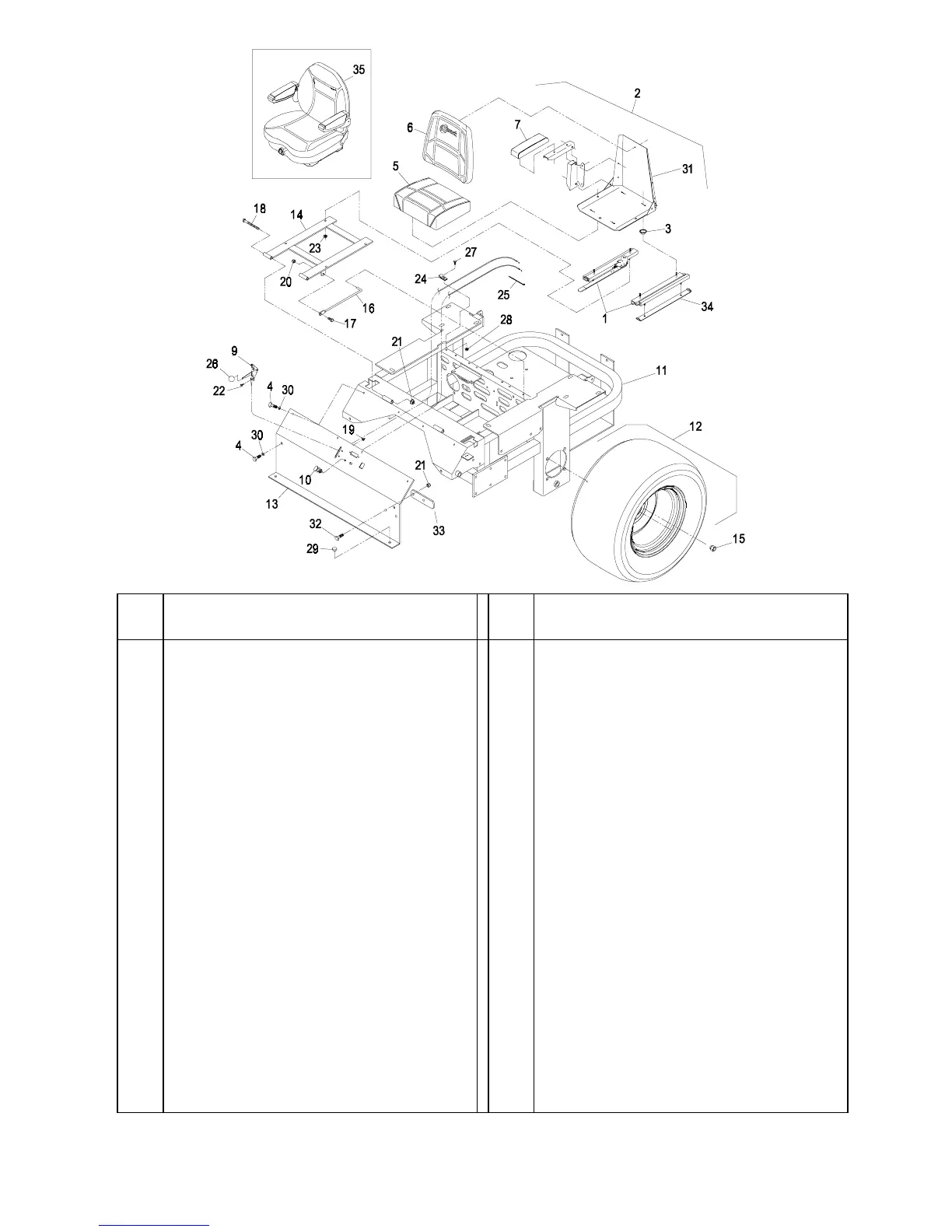

MAIN FRAME GROUP
Ref.
No.
Qty.
Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1 643255 Track, seat (4” adjustable) ..... 1 20
804256 Nut, nylock 5/16-18................. 1
2
633461 Seat
(All units except 26hp Koh)
1
21
804257 Nut, nylock 3/8-16................... 2
3
543401 Spacer, seat track .................. 4
22
807513 Screw, #10-24 x 1/2 ................ 2
4
800271 Screw, 5/16-18 x 3/4 .............. 6
23
809001 Nut, whizlock 5/16-18.............. 4
5
543407 Cushion, seat ......................... 1
24
513762 Clip, loom (.50)........................ 1
6
543408 Cushion, backrest................... 1
25
303335 Plastic tie (lrg) ......................... 1
7
543409 Cushion, armrest (RH) ........... 1
26
513592 Ball, (red) throttle cable........... 1
8
∗
543411 Cushion armrest (LH)............ 1
27
800252 Screw, 1/4-20 x 3/4 ................. 1
9
633696 Cable, throttle......................... 1
28
809012 Nut, whizlock 1/4-20................ 1
10
603336 Cable, choke .......................... 1
29
513658 Bumper ................................... 2
11
632923 Frame, engine deck ............... 1
30
805257 Washer, 5/16 SAE flt .............. 6
12
633970 Wheel/tire assy. (60” & 72”) ... 2
31
633859 Seat Frame ............................. 1
633993 Tire, 24x12-12 4 ply (60” & 72”) 2
32
800292 Screw, 3/8-16 x 1.................... 2
633992 Wheel (60” & 72”)................... 2
33 633964 Stop, Park Brake..................... 1
653010 Wheel/tire assy. (52”)............. 2
34 633872 Stop/Spacer
(26hp Koh & 22hp Kaw)
2
653160 Tire, 23x9.5-12 4 ply (52”) ....... 2
35 633821 Seat, Suspension
(26hp Koh only)
1
653158 Wheel (52”) ............................ 2 631845 Kit, Pan w/seat & back ........... 1
13 633965 Front, Console........................ 1
631844 Kit, Armrest Assy .................... 1
14 632187 Frame, seat mount................. 1
631843 Kit, Boot, upper & lower wire... 1
15
★
513011 Nut, wheel 1/2-20 .................. 8
631842 Kit, Armrest Pad w/hardware .. 1
633273 Bolt, wheel 1/2-20 x7/8........... 8 631846 Kit, Damper w/hardware ......... 1
16
633293 Rod, seat hold-up................... 1 631847 Kit, Rollers, bumpers & hrdwre 1
17
800273 Screw, 5/16-18 x 1 ................. 1 631848 Kit, Spring & Cable & hardware 1
18
800306 Screw, 3/8-16 x 5 ................... 2 631849 Kit, Knob & Shaft & hardware . 1
19
804252 Nut, nylock #10-24 ................. 2 643281 Switch, Seat ........................... 1
∗
Not Illustrated
★
Some units have hubs with studs installed and require wheel nuts, some units have hubs without studs and
require wheel bolts.
Exmark black touch up spray paint - gloss black

Exmark LAZER Z Specifications

General

Engine Brand	Kawasaki
Transmission	Hydrostatic
Deck Construction	Fabricated or welded steel
Category	Commercial
Type	Commercial
Speed	10 mph
Turning Radius	Zero-turn
Fuel Capacity	10-15 gallons
Weight	1, 465 lbs
