Exmark LAZER Z Parts Manual

12

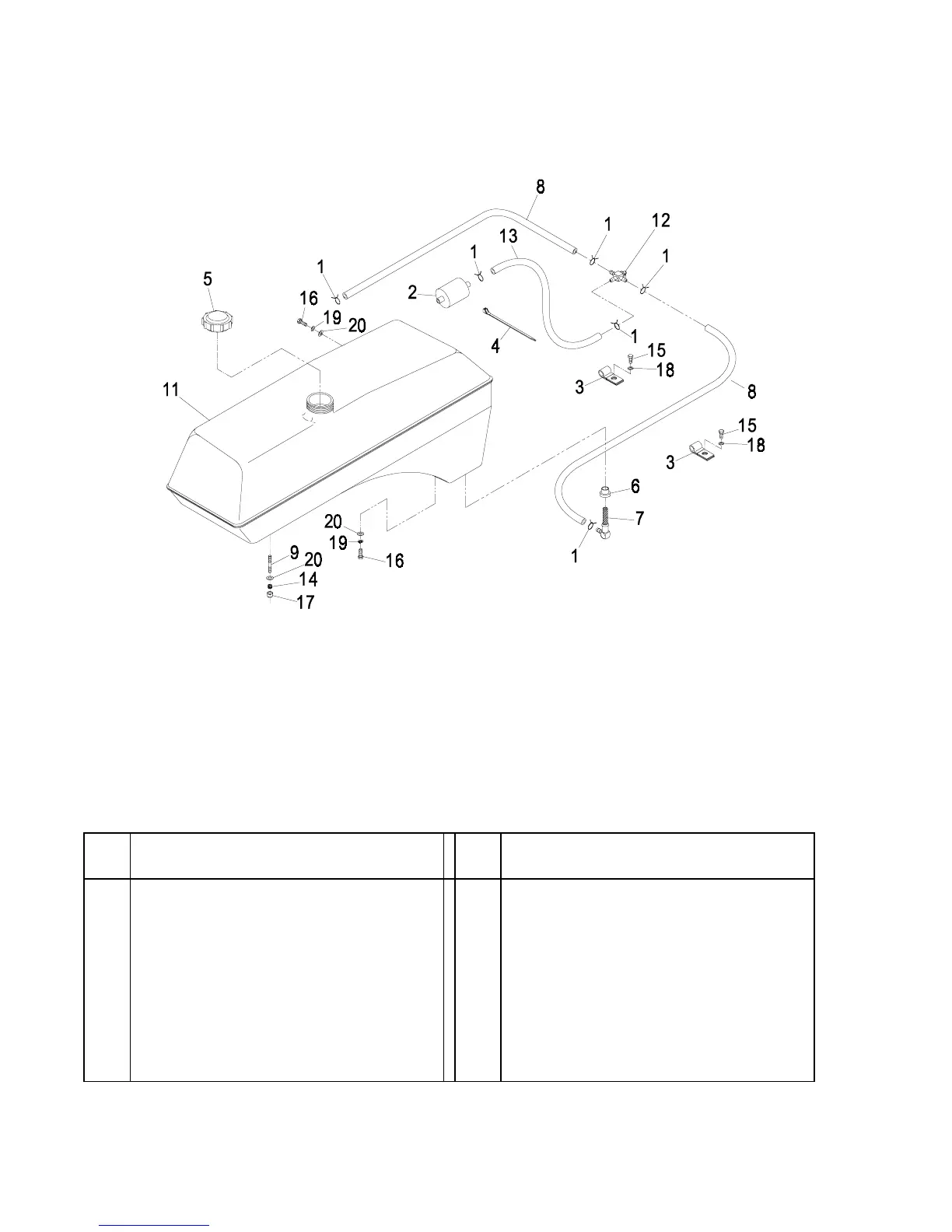

KOHLER 18, 23, & 25 HP AIR-COOLED FUEL GROUP
Ref.
No.
Qty.
Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1 303077 Clamp, fuel line ....................... 6 11 633968 Tank, fuel (RH) ....................... 1
2
!
Kohler
Part No. 2405002 Fuel Filter....... 1
12
633347 Valve, fuel............................... 1
3
513762 Clip, loom .50 .......................... 2
13
633348 Fuel line .................................. 1
4
303335 Plastic tie (large) ..................... 1
14
633349 Spring, fuel tank...................... 6
5
513508 Cap, fuel tank.......................... 2
15
800251 Screw, 1/4-20 x 5/8................. 2
6
513645 Bushing ................................... 2
16
800271 Screw, 5/16-18 x 3/4............... 4
7
543277 Elbow, strainer ........................ 2
17
804267 Nut, thin nylock 5/16-18.......... 6
8
543456 Fuel line................................... 2
18
805004 Washer, lock 1/4..................... 2
9
"
633023 Stud, fuel tank ......................... 6
19
805005 Washer, lock 5/16................... 4
10
∗
633967 Tank, fuel (LH) ........................ 1
20
805257 Washer, 5/16 SAE.................. 10
"
Use Prolock, Retaining type (Part No. 840023), .5cc tube on stud threads going into the tank.
∗
Not Illustrated.
!
Refer to Engine Owner’s Manual (Fuel Filter
Must
be 15 Micron or smaller).
