Exmark LAZER Z Parts Manual

17

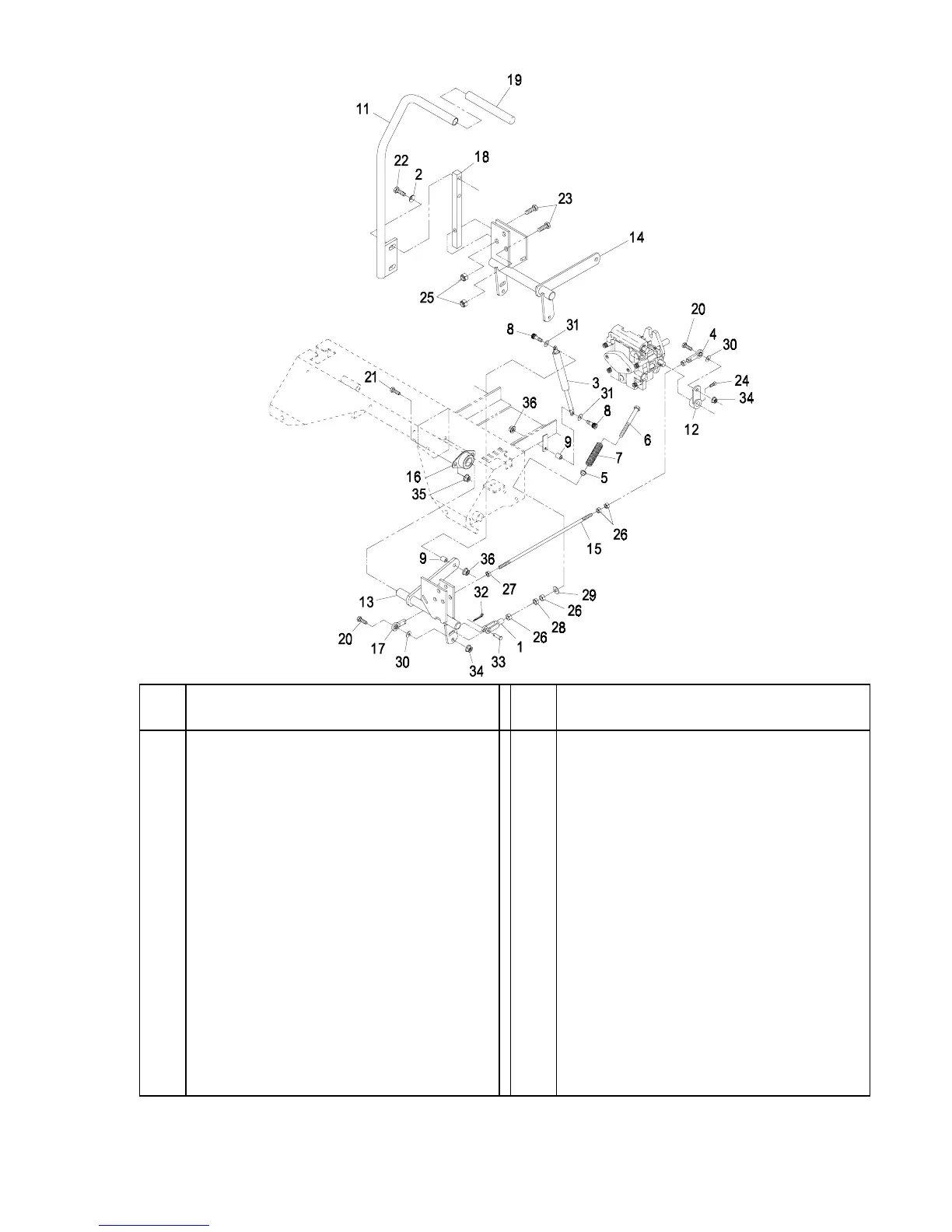

MOTION CONTROL LEVERS
Ref.
No.
Qty.
.Part No. Description Req'd.
Ref.
No.
Qty.
Part No. Description Req'd.
1 303105 Yoke........................................ 2 18 633177 Arm, control shaft.................... 2
2
303327 Washer, disc spring 3/8 .......... 4
19
633257 Grip, motion control handle..... 2
3
523027 Dampener ............................... 2 20 800274 Screw, 5/16-18 x 1 1/4............ 4
4
543017 Ball joint (RH).......................... 2
21
800290 Screw, 3/8-16 x 3/4................. 8
5
603735 Bushing, nylon (reverse ind.)... 2
22
800292 Screw, 3/8-16 x 1.................... 4
6
603737 Bolt, (neutral return) ................ 2
23
800295 Screw, 3/8-16 x 1 3/4.............. 6
7
603807 Spring, (neutral return)............ 2
24
◊
803022 Set screw, 5/16 x 5/8 .............. 2
8
♦
809057 Bolt, shoulder 5/16 x 3/4 ......... 4
25
804257 Nut, nylock 3/8-16................... 6
9
603903 Spacer..................................... 4
26
804521 Nut, 5/16-24............................ 10
10
∗
634258 Handle w/grip (LH) .................. 1
27
804524 Nut, 5/16-24 (LH).................... 2
632191 Handle, motion control (LH) .... 1
28
804758 Nut, jam 5/16-24 ..................... 2
11
634259 Handle w/grip (RH).................. 1
29
805256 Washer, 1/4 ............................ 2
632193 Handle, motion control (RH).... 1
30
805258 Washer, 5/16 std .................... 4
12
632208 Arm, pump control................... 2
31
805257 Washer, 5/16 SAE.................. 4
13
632911 Bracket, motion control (LH) ... 1
32
806753 Pin, cotter 3/32 x 1/2............... 2
14
632912 Bracket, motion control (RH)... 1
33
808280 Pin, clevis 5/16 x 1.................. 2
15
633153 Link, pump control................... 2
34
809001 Nut, whizlock 5/16-18.............. 4
16
633102 Bearing, flanged...................... 4
35
809007 Nut, whizlock 3/8-16................ 8
17
633152 Ball joint (LH)........................... 2
36
809012 Nut, whizlock 1/4-20................ 4
∗
Not Illustrated.
Exmark black touch up spray paint - gloss black
◊
Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on setscrews
♦
Use Pro-Lock, Retaining Type (P/N 840023, .5cc tube) on damper mounting shoulder bolts
