Safety

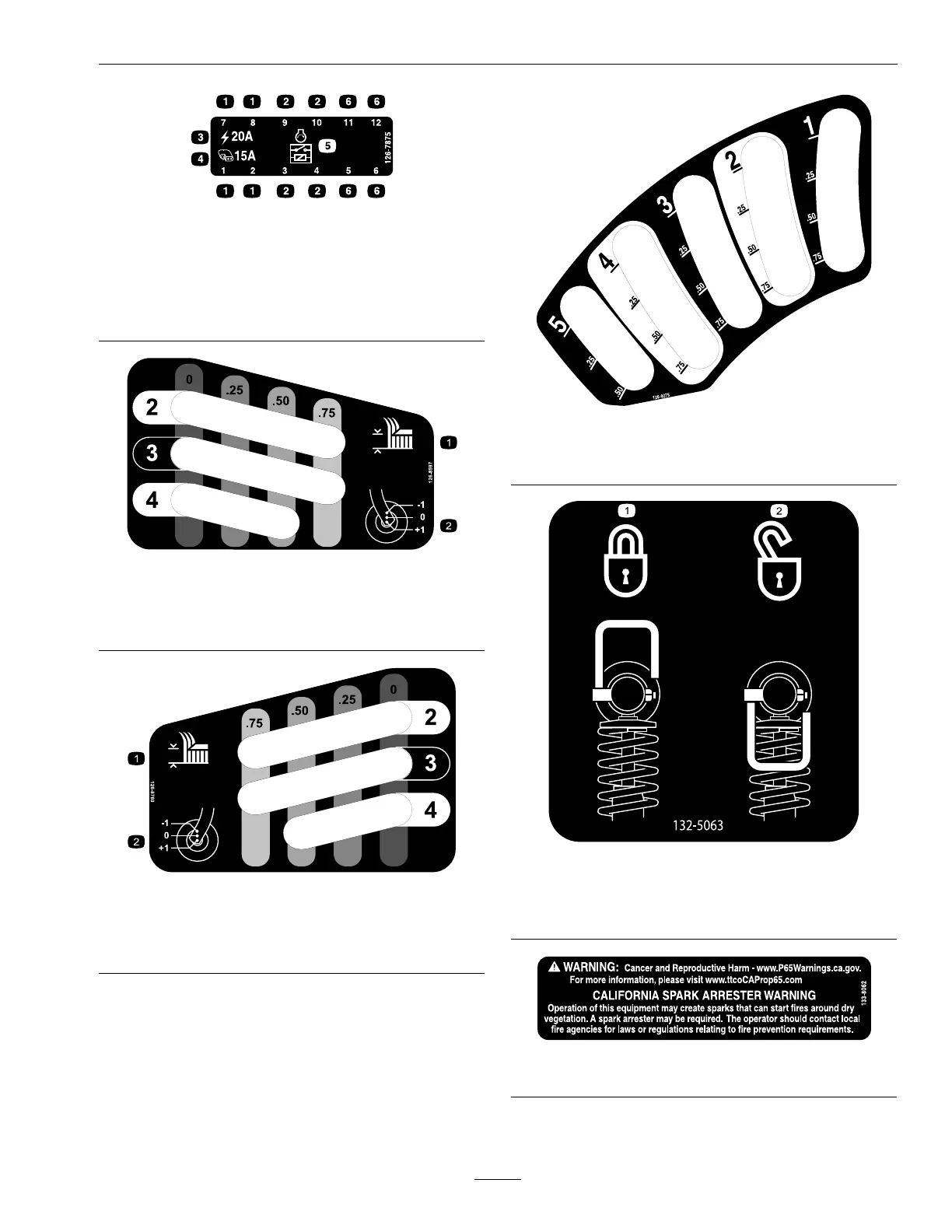

decal126-7875

126-7875

KohlerREDandSmartControlledEquippedModels

1.Fuselocation4.Auxiliary,15A

2.Relaylocation

5.Startrelay

3.Main,20A6.Notused

decal126-8597

126-8597

WingDeckModelsOnly

1.Heightofcut

2.Rangeadjustment

decal126-8760

126-8760

WingDeckModelsOnly

1.Heightofcut

2.Rangeadjustment

decal126-9275

126-9275

WingDeckModelsOnly

decal132-5063

132-5063

“C1”,“C2”,and“C3”ModelsOnly

1.Camlock2.Camunlock

decal133-8062

133-8062
