Exmark Phazer 4500-461 - Fuel Group

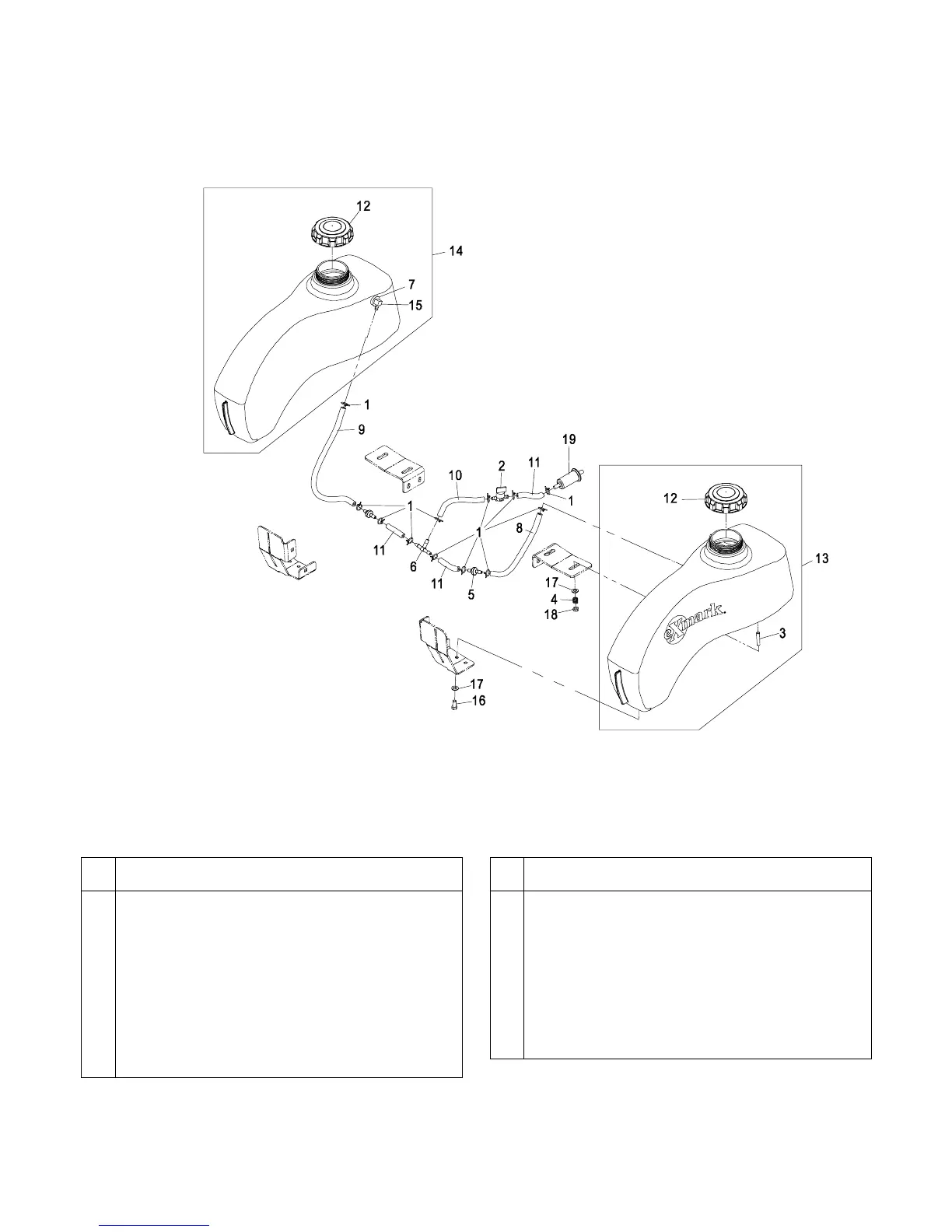

FUEL GROUP
-10-
Item Part No. Description Qty.
1 1-303077 Clamp, Fuel Line....................................12
2 1-603770 Valve, Fuel.............................................1
3* 1-633023 Stud, Fuel Tank......................................4
4 1-633349 Spring ....................................................4
5 99-5000 Valve, Fuel Check..................................2
6 99-5005 Fitting, Barbed Tee................................. 1
7 104-7789 Bushing..................................................2
8 107-7684 Hose, Fuel Line 11"................................1
9 108-4582 Hose, Fuel Line 21"................................1
10 109-0293 Hose, Fuel Line 8 1/2"............................ 1
Item Part No. Description Qty.
11 109-0304 Hose, Fuel Line 2 1/2"............................ 3
12 109-0346 Cap, Fuel............................................... 2
13 109-3124 Asm, Fuel Tank (LH).............................. 1
14 109-3123 Asm, Fuel Tank (RH) ............................. 1
15 109-2420 Fitting, Fuel W/Line And Screen............. 2
16 322-3 Screw, HH 5/16-18 x 3/4........................ 2
17 3256-23 Washer, 5/16 SAE ................................. 6
18 3296-47 Nut, Nyloc 5/16-18 Thin ......................... 4
19) Kawasaki Part No. 49019-7001 Fuel Filter............. 1
) Refer to Engine Owner’s manual. (Fuel filter Must be 15 Micron or smaller).
* Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads, item #3 going into tanks.
