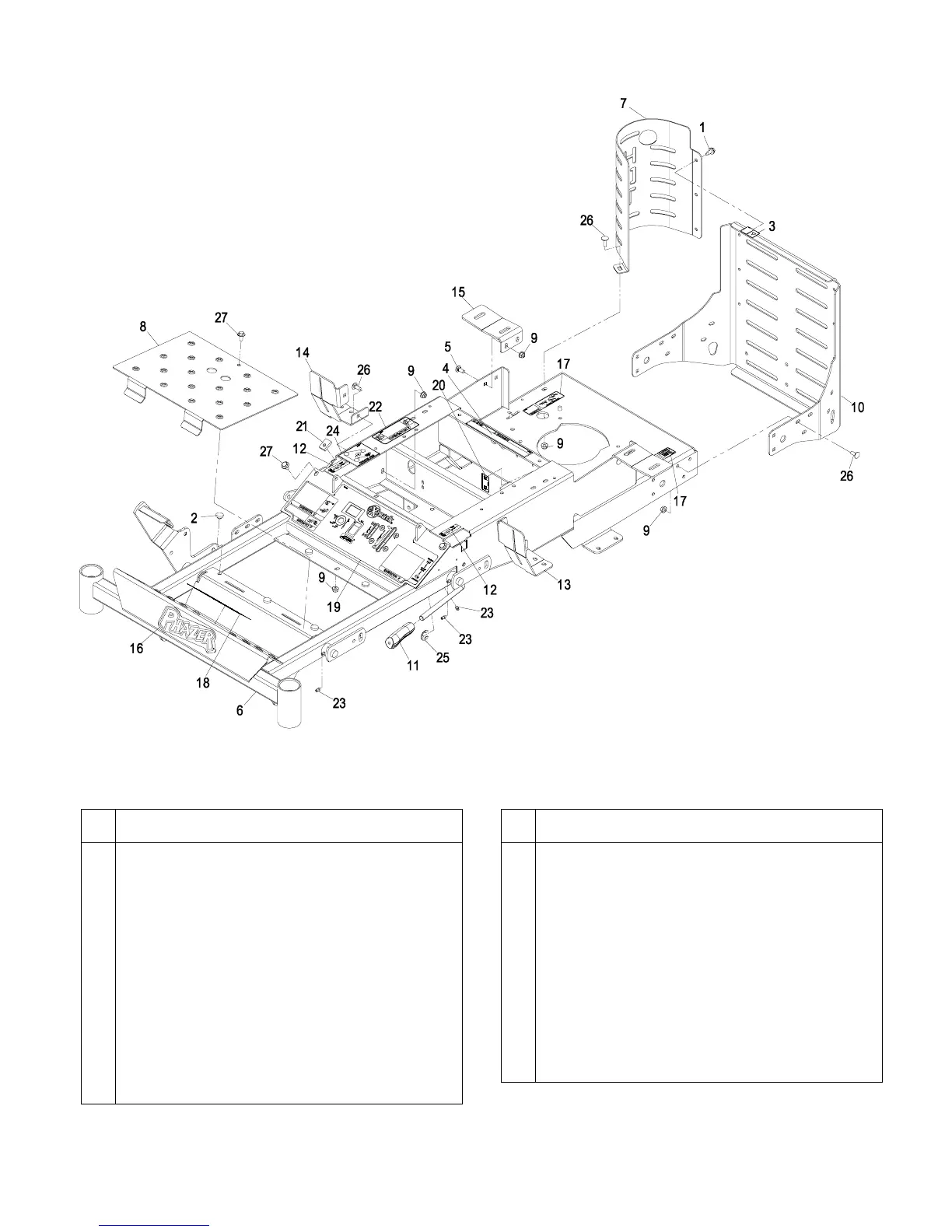

FRAME GROUP
-5-
Item Part No. Description Qty.
1 32144-70 Screw, HWH 5/16-18 x 3/4 TF................3
2 1-513658 Bumper ..................................................5
3 93-8069 Decal, Hot Surface ................................. 1
4 1-513747 Decal, Battery ........................................ 1
5 3230-16 Bolt, Carriage 5/16-18 x 7/8 ...................4
6 109-3125 Asm, Frame W/Decals ...........................1
7 116-0201-03 Guard, Muffler........................................ 1
8 103-9381-01 Plate, Floor ............................................1
9 104-8300 Nut, Nyloc 5/16-18 Flg ........................... 18
10 114-0543 Asm, Rear Guard W/Decal.....................1
11 109-0375 Grip, Brake Lever...................................1
12 109-2356 Decal, Motion Control............................. 2
13 109-2421-03 Bracket, LH Fuel Tank ...........................1
14 109-2422-03 Bracket, RH Fuel Tank...........................1
Item Part No. Description Qty.
15 109-2429-03 Bracket, Rear Fuel Tank........................ 2
16 109-2466 Decal, Phazer........................................ 1
17 109-2467 Decal, Drive Wheel Release.................. 2
18 109-2490 Decal, Danger Slope.............................. 1
19 109-2494 Decal, Console ...................................... 1
20 109-2539 Decal, Relay .......................................... 1
21 109-2605 Stop, Motion Control .............................. 2
22 109-2862 Decal, Rotating Devices......................... 1
23 302-19 Zerk, 1/4-28 Str...................................... 5
24 109-2992 Decal, Pump Belt Routing...................... 1
25 32151-48 E-Ring ................................................... 1
26 3230-23 Bolt, Carriage 5/16-18 x 3/4................... 13
27 3234-7 Screw, HH FLG 5/16-18 x 5/8................ 3
Exmark black touch up spray paint – gloss black.
