Exmark Phazer 4500-461 - Transaxle Group

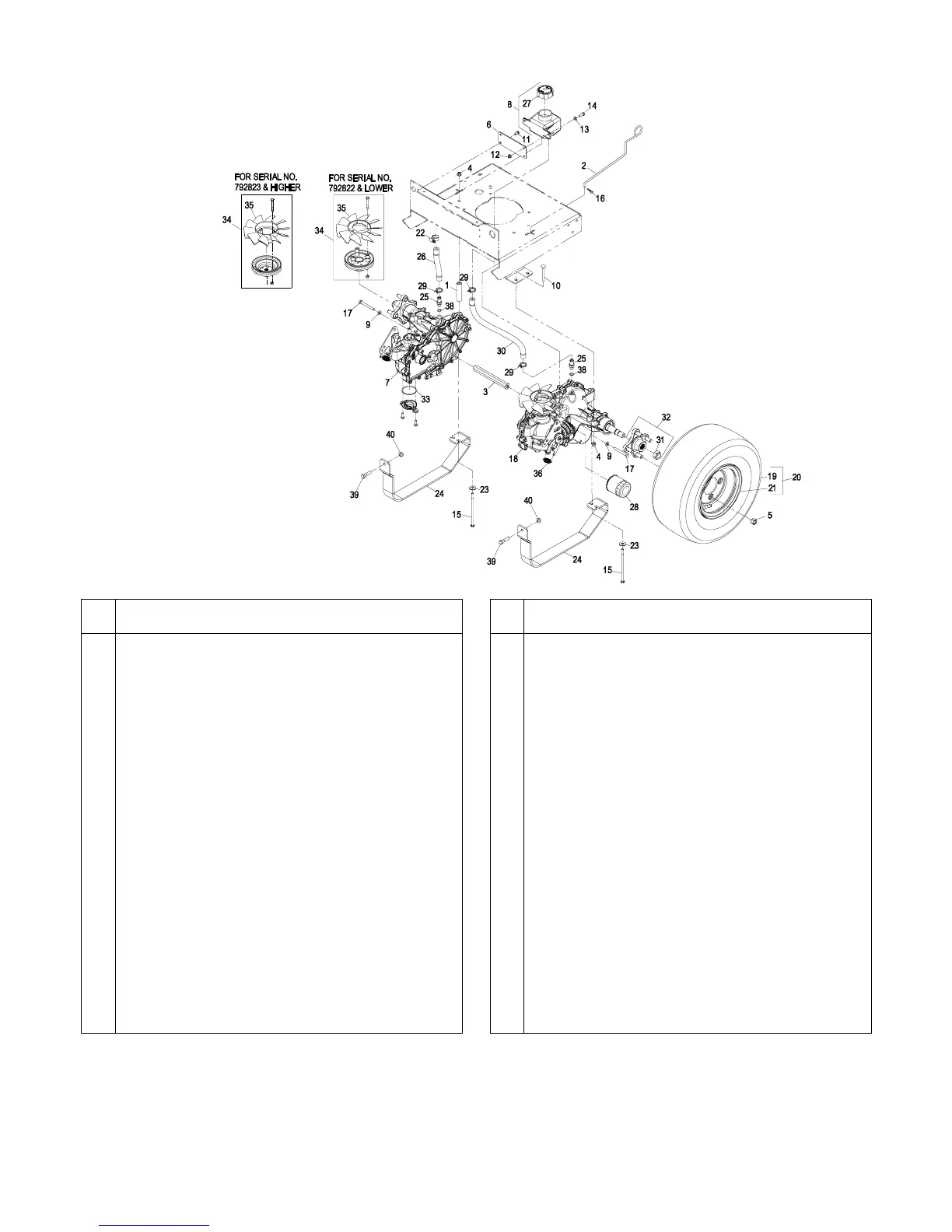

TRANSAXLE GROUP
-12-
Item
Part No. Description
Qty.
1 103-9397 Spacer, Hydro ........................................ 2
2 103-9380 Rod, Hydro Bypass ................................2
3 103-9398 Spacer, Axle ..........................................1
4 104-8300 Nut, Nyloc 5/16-18 Flg ...........................6
5 242-50 Nut, Lug 1/2-20 ...................................... 8
6 103-9350-03 Plate, Tank Mount..................................1
7 116-1204 Asm, Transaxle (RH)..............................1
8 109-2250 Tank, Hydraulic ......................................1
9 98-5975 Washer, Spring Disc 3/8.........................2
10 3230-9 Bolt, Carriage 5/16-18 x 2 3/4................. 4
11 32144-4 Screw, HWH 1/2-20 x 1/2 Taptite ...........2
12 104-7201 Nut, Nyloc 1/4-20 Flg ............................. 2
13 3256-22 Washer, 1/4 SAE ................................... 2
14 321-4 Screw, HH 1/4-20 x 3/4 ..........................2
15 1-800286 Screw, HH 5/16-18 x 6 ...........................2
16 1-806003 Hairpin, Cotter........................................ 2
17O 323-11 Screw, HH 3/8-16 x 2 1/4 .......................2
18 116-1205 Asm, Transaxle (LH) ..............................1
19 109-2594 Tire, 18 x 7.00-8 4 Ply ............................2
20 109-2595 Asm, Wheel & Tire .................................2
21 109-2596 Wheel ....................................................2
Item
Part No. Description
Qty.
22 109-6801 Clamp, Hose.......................................... 1
23 3256-3 Washer .................................................. 2
24 114-0469-03 Guard, Transmission.............................. 1
25 109-3278 Adapter, Straight.................................... 2
26 109-3319 Hose, Hydraulic ..................................... 1
27 109-3320 Cap, Hydraulic Reservoir ....................... 1
28 109-3321 Filter, Hydraulic...................................... 1
29 109-3322 Clamp, Hose.......................................... 3
30 109-3459 Hose, Hydraulic ..................................... 1
31 109-3536 Nut, Hub ................................................ 2
32 109-3538 Kit, Hub.................................................. 2
33 109-3540 O-Ring, Charge Cover Seal ................... 2
34Q 116-0172 Kit, Fan And Pulley ................................ 2
x
116-1207 Kit, Fan And Pulley ................................ 2
35Q 116-0173 Fan,7”-10 Blade..................................... 2
x
116-1206 Fan,7”-10 Blade..................................... 2
36 109-2631 Spring, Extension................................... 2
37V 109-3537 Kit, Seal ................................................. 2
38 1-603921 O-Ring, SAE #6 ..................................... 2
39 323-8 Screw, HH 3/8-16 x 1 1/2....................... 2
40 3290-357 Nut, Whizlock 3/8-16.............................. 2
Exmark black touch up spray paint – gloss black.
 LH and RH transmission comes complete with items #28, #31, #32, #33, #34, #35, #36, & #37
O Use Pro-Lock, Nut type (P/N 1-840022, .5ml tube) screw.
V Item not shown
Q For Serial No. 792822 & Lower.
x For Serial No. 792823 & Higher.
