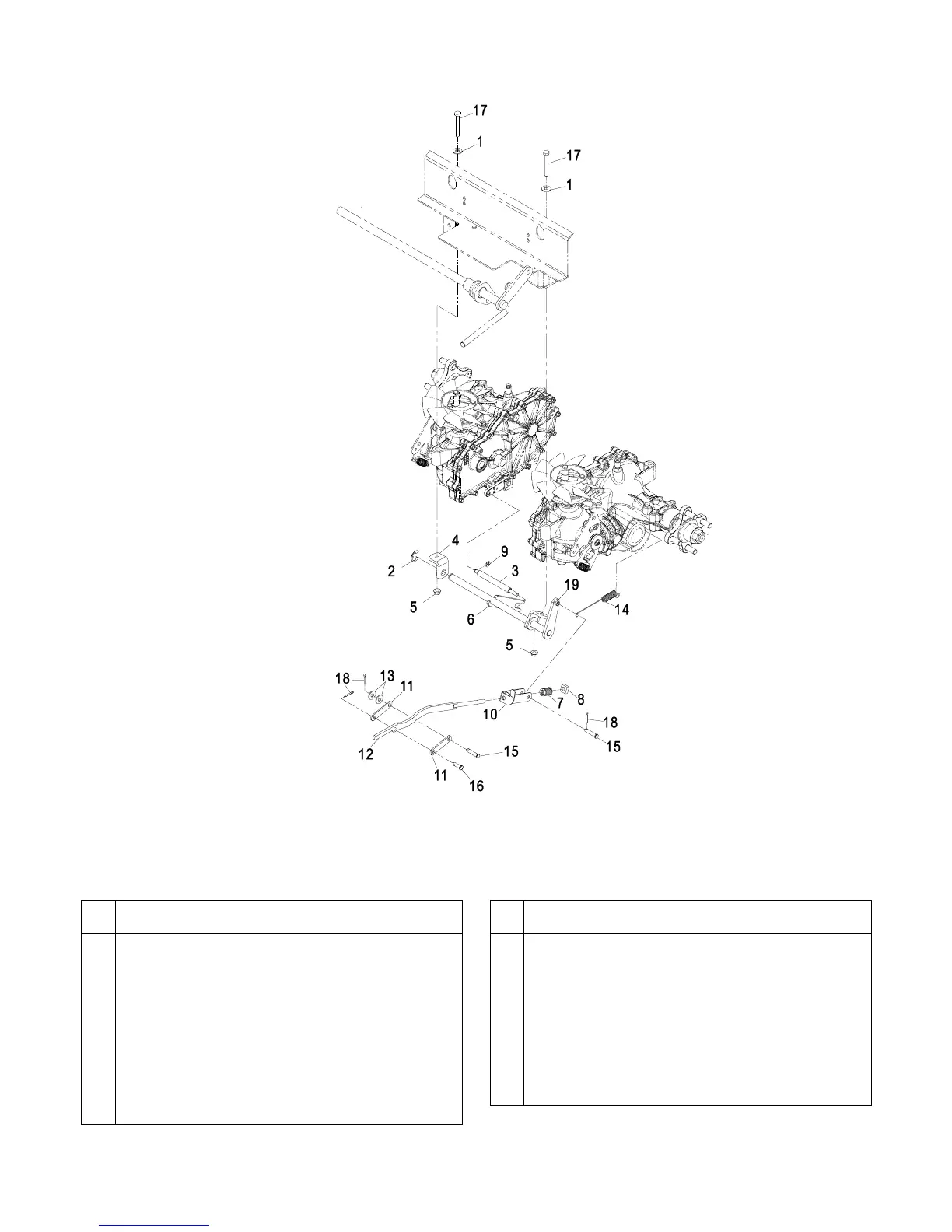

PARK BRAKE GROUP
-8-
Item Part No. Description Qty.
1 3256-3 Washer, 5/16 Std ...................................2
2 32120-19 E-Ring....................................................1
3 103-9408 Bar, Equalizer ........................................1
4 103-9409 Bracket ,Brake Pivot............................... 1
5 104-8300 Nut, Nyloc 5/16-18 Flg ........................... 2
6 109-5376 Wld, Brake Bellcrank..............................1
7 103-9925 Spring, Brake ......................................... 1
8 103-9926 Nut, Square............................................1
9 32120-35 E-Ring....................................................1
10 114-0548 Wld, Brake Clevis...................................1
Item Part No. Description Qty.
11 109-0223 Link, Over Center................................... 2
12 109-5370 Wld, Brake Link...................................... 1
13 3256-23 Washer, 5/16 SAE ................................. 2
14 109-2861 Spring, Extension................................... 1
15 283-6 Pin, Clevis 5/16 X 1 1/4.......................... 2
16 283-75 Pin, Clevis 5/16 X 3/4............................ 1
17 322-12 Screw, HH 5/16-18 x 2 1/2..................... 2
18 3272-10 Pin, Cotter 1/8 x 3/4 ............................... 3
19 1-633545 Spacer ................................................... 1
