Exmark Phazer 4500-461 - Motion Control Group

MOTION CONTROL GROUP
-7-

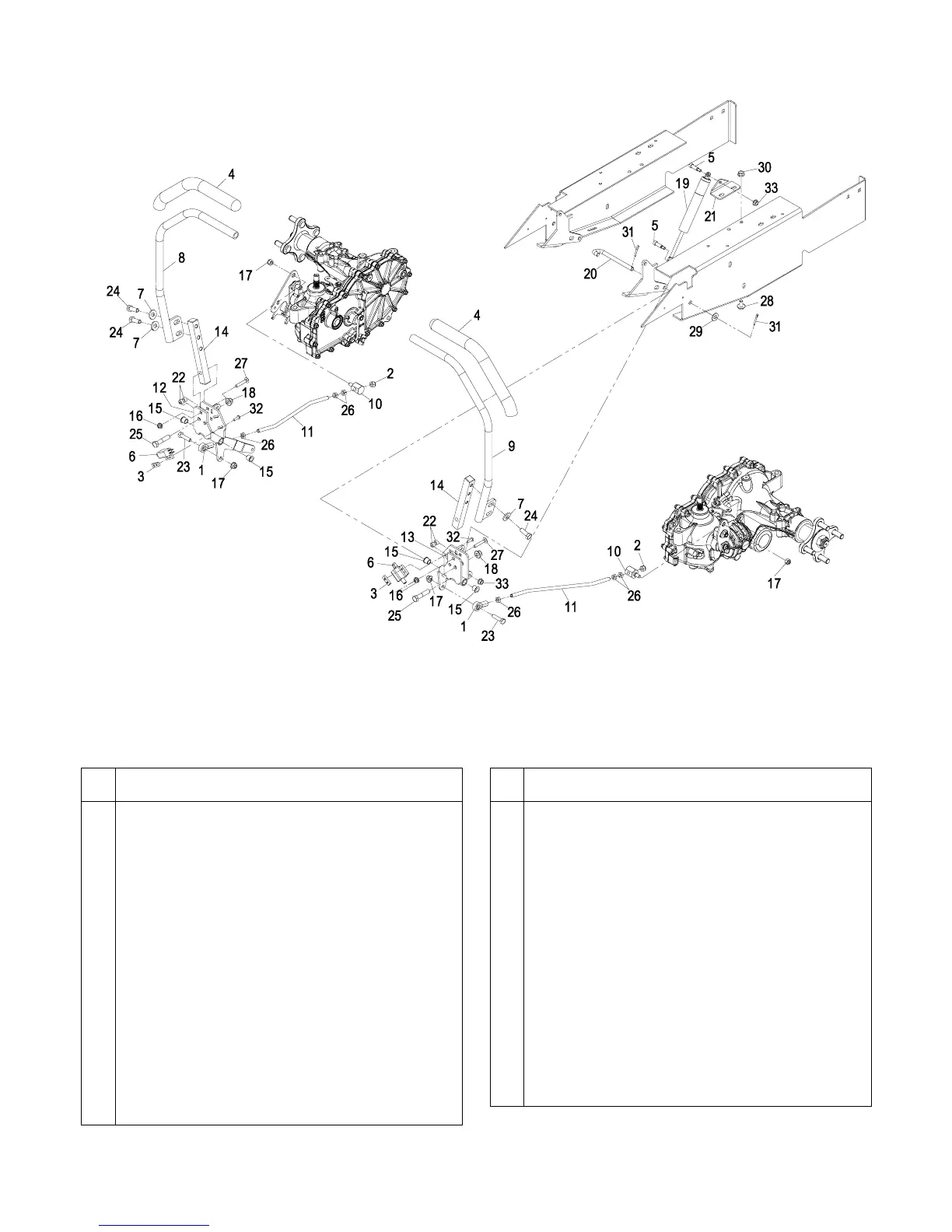

Item Part No. Description Qty.
1 1-543017 Balljoint ..................................................2
2 3296-4 Nut, Esna 5/16-24 ..................................2
3 1-633181 Plate, Tapped......................................... 2
4 1-633257 Grip, Control Lever.................................2
5 1-809057 Screw, SH 5/16-18 x 3/4 ....................... 4
6 65-7410 Switch ....................................................2
7 98-5975 Washer, Spring Disc 3/8.........................4
8 103-9367 Asm, Lever Control (RH) W/Grip ............ 1
9 103-9368 Asm, Lever Control (LH) W/Grip.............1
10 103-9373 Trunnion.................................................2
11 103-9407 Rod, Steering......................................... 2
12 103-9411 Wld, Steering Control (RH)..................... 1
13 103-9413 Wld, Steering Control (LH) .....................1
14 103-9414 Post, Lever Mount ..................................2
15 103-9928 Bearing .................................................. 4
16 104-7201 Nut, Nyloc 1/4-20 Flg ............................. 4
17 104-8300 Nut, Nyloc 5/16-18 Flg ........................... 4
Item Part No. Description Qty.
18 104-8301 Nut, Nyloc 3/8-16 Flg ............................. 2
19 109-2339 Damper, Motion Control......................... 2
20 109-2423 Shaft, Control Pivot................................ 2
21 109-2428 Bracket, Damper Mount......................... 2
22 1-633545 Spacer ................................................... 4
23 322-6 Screw, HH 5/16-18 x 1 1/4..................... 2
24 323-6 Screw, HH 3/8-16 x 1............................. 4
25 323-9 Screw, HH 3/8-16 x 1 3/4....................... 2
26 3220-2 Nut, Jam 5/16-24 ................................... 6
27 3229-4 Bolt, Carriage 1/4-20 x 1 1/2 .................. 4
28 3234-7 Screw, HH FLG 5/16-18 x 5/8 ................ 4
29 3256-24 Washer, 3/8 SAE ................................... 2
30 32128-20 Nut, Whizlock 5/16-18............................ 4
31 3272-10 Pin, Cotter 1/8 x 3/4 ............................... 2
32 3290-500 Screw, PPH #10-24 x 5/8....................... 4
33 32128-33 Nut, Whizlock 1/4-20.............................. 4
