Exmark Phazer 4500-461 - Electrical Group

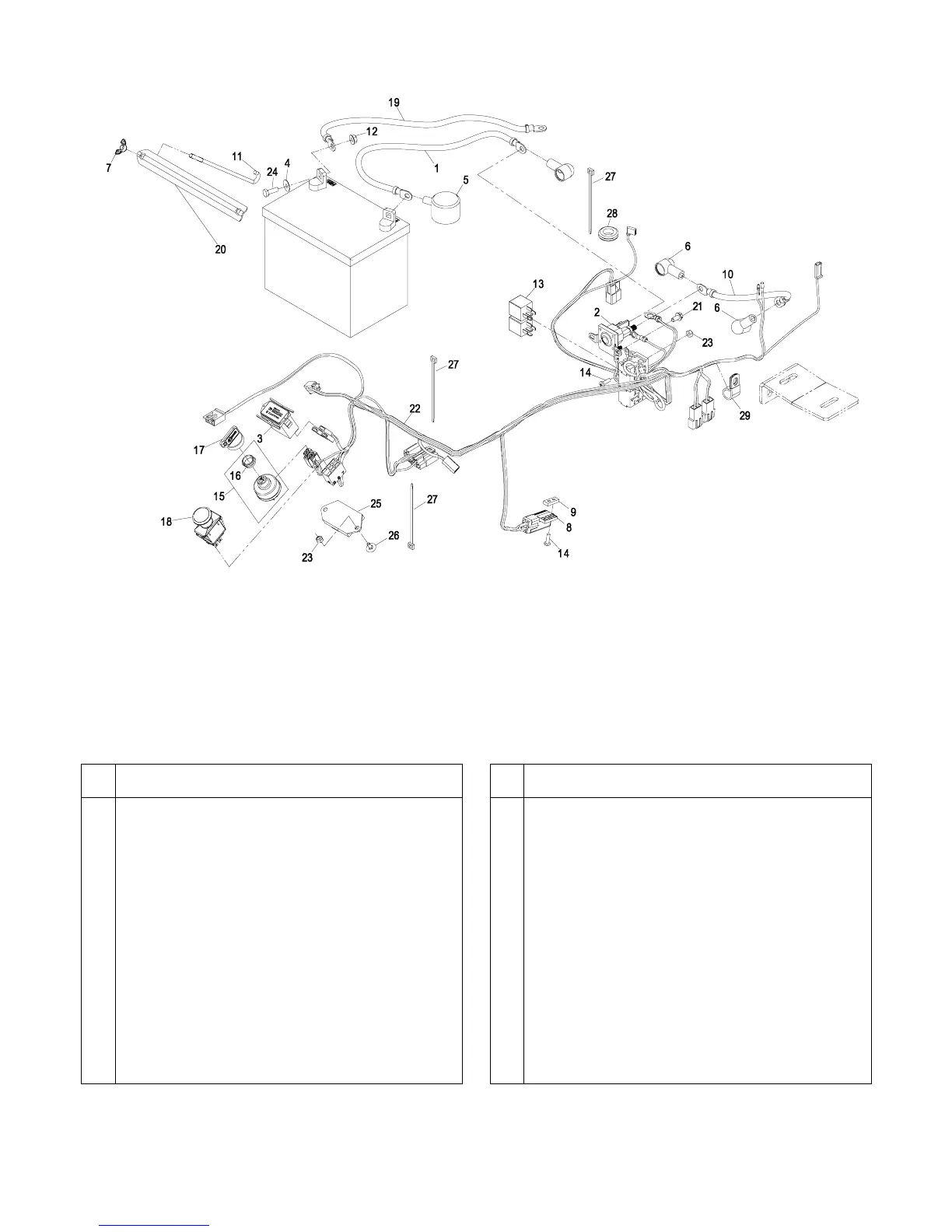

ELECTRICAL GROUP
-14-
Item Part No. Description Qty.
1 109-7653 Wire, Battery Positive (+) W/Caps ..........1
2 1-513075 Solenoid, Plastic ....................................1
3 1-513374 Meter, Engine Hours ..............................1
4 3256-2 Washer ..................................................2
5 109-2407 Insulator, Battery....................................1
6 1-543393 Insulator, Solenoid .................................3
7 1-543792 Wingnut, Nyloc 1/4-20............................ 2
8 1-633111 Switch ....................................................1
9 1-633181 Plate, Tapped......................................... 1
10 109-7620 Cable, Battery W/Caps........................... 1
11 1-633651 Bolt, Hold Down .....................................2
12 32128-33 Nut, Whizlock 1/4-20 .............................. 2
13 1-643275 Relay, 12VDC 40 Amp ...........................2
14 3290-500 Screw, PPH #10-24 x 5/8 ....................... 4
15 109-4736 Asm, Switch W/Nut ................................1
Item Part No. Description Qty.
16 103-0498 Nut, Ignition ........................................... 1
17 103-2106 Key, Exmark Logo ................................. 1
1-603511 Key, Ignition........................................... 1
18 103-5221 Switch, PTO........................................... 1
19 103-8355 Cable, Ground(-).................................... 1
20 103-9944-03 Strap, Battery......................................... 1
21 32144-4 Screw, HWH 1/2-20 x 1/2 Taptite........... 2
22X 109-4112 Harness, Wiring ..................................... 1
23 3296-2 Nut, Nyloc #10-24.................................. 3
24 321-4 Screw, HH 1/4-20 x 3/4.......................... 2
25 100-6186 Module, Seat Delay ............................... 1
26 1-807513 Bolt, Carriage #10-24 x 1/2 .................... 1
27 1-303335 Tie, Plastic............................................. 3
28 1-543286 Grommet ............................................... 1
29 1-603727 Clip, Loom ............................................. 1
X Use dielectric grease on all wiring harness connectors
Exmark black touch up spray paint – gloss black.
