Operation
Seethedecalonthetopofthedeckliftplatefor
cutheights.
5.Pushthefootleverforward,pulluponthe
transportlockknobandletthedecklower
downtothepredeterminedcutheightbyslowly
decreasingfootpressureallowingthefootlever
totravelrearward.
AdjustingtheAnti-ScalpRollers
Itisrecommendedtochangetheanti-scalproller
position,whentheheightofcuthaschanged.
1.Stopthemachineandmovethemotioncontrol
leversoutwardtotheneutrallockedposition.
2.DisengagethePTO.
3.Engagetheparkbrake.
4.Stoptheengine,removethekeyandwaitforall
movingpartstostop.
5.Afteradjustingtheheightofcut,adjustthe
anti-scalprollersbyremovingthemounting
hardware.
6.Placetherollersinoneofthepositionsshown
(Figure17).Rollerswillmaintain3/4inch(19
mm)clearancetothegroundtominimizegouging
androllerwearordamage.

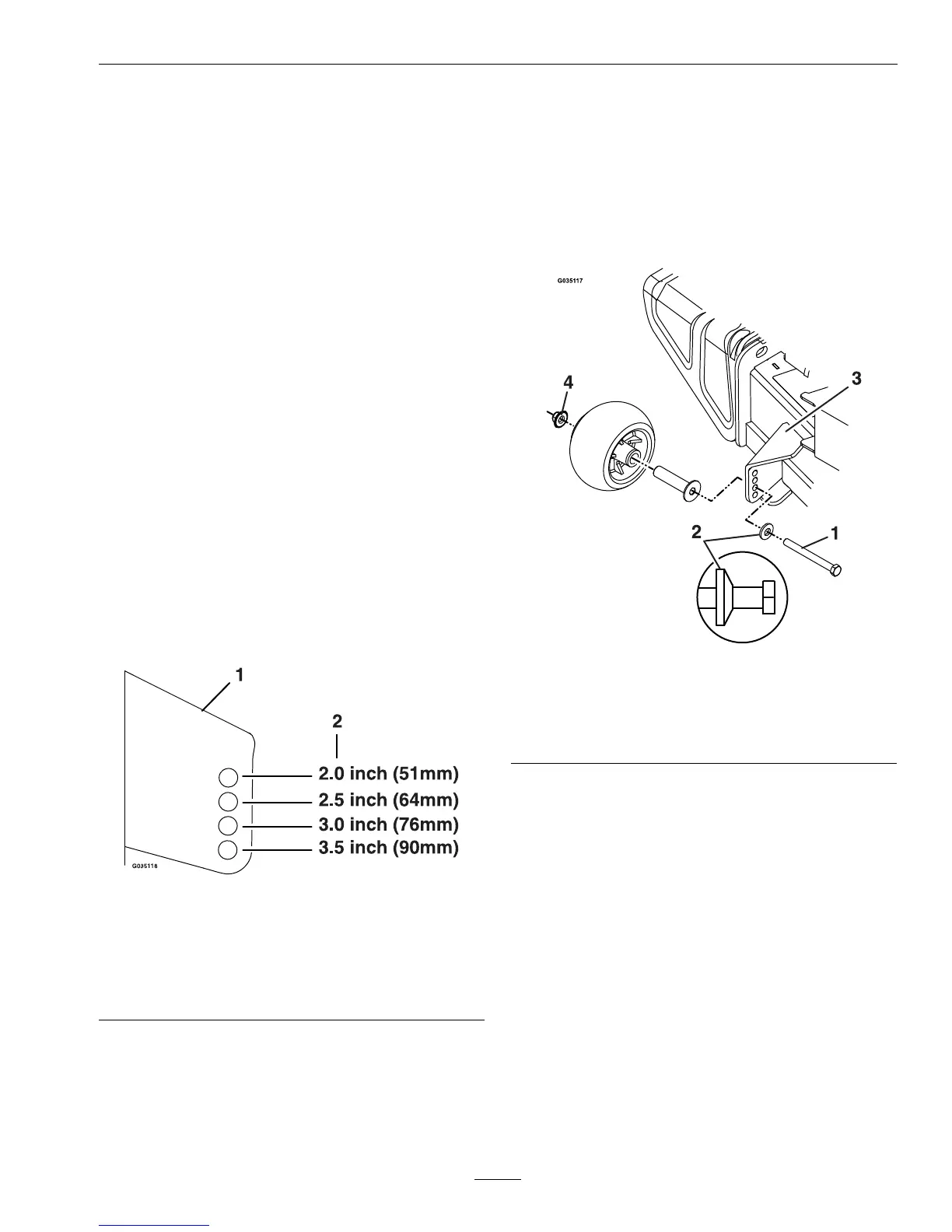

Figure17
Forcuttingheightsabove3.5inches(90mm)usethe
bottomhole.Therollerswillstillbeeffectiveagainst
scalping.
1.Anti-scalproller
mountingbracket
2.Cuttingheight
ForMaximumDeckFlotation,placetherollers
oneholepositionlower.Rollersshouldmaintain
1/4inch(6.4mm)clearancetotheground.Do
Notadjusttherollerstosupportthedeck.
7.Reinstallthemountinghardware.
•SideDischargeUnits:
A.Besuretherollerboltsareinstalledwith
thespringdiscwasherbetweenthehead
oftheboltandthemountingbracket(see
Figure18).
B.Torquethe3/8nylocnutto50–55ft-lb
(68-75N-m).
Figure18
1.3/8-16X33/4inch
Grade8bolt
3.Frontrightanti-scalp
bracketshown
2.Springdiscwasher
(conetowardsbolthead)
4.3/8inchnyloc-torqueto
50-55ft-lb(68-75N-m)
31
