- 6 -
1.7 SAFETY SIGNS
1.7.1 Keep all safety signs legible. Remove all grease, dirt and debris from safety
signs.
1.7.2 Safety signs must be replaced if they are missing or illegible.
1.7.3 When new components are installed, be sure that current safety signs are
affixed to the replaced components.
1.7.4 New safety signs may be obtained from your authorized Exmark equipment
dealer or distributor or from Exmark Mfg. Co. Inc.
1.7.5 Safety signs may be affixed by peeling off the backing to expose the adhesive
surface. Apply only to a clean, dry surface. Smooth to remove any air bubbles.

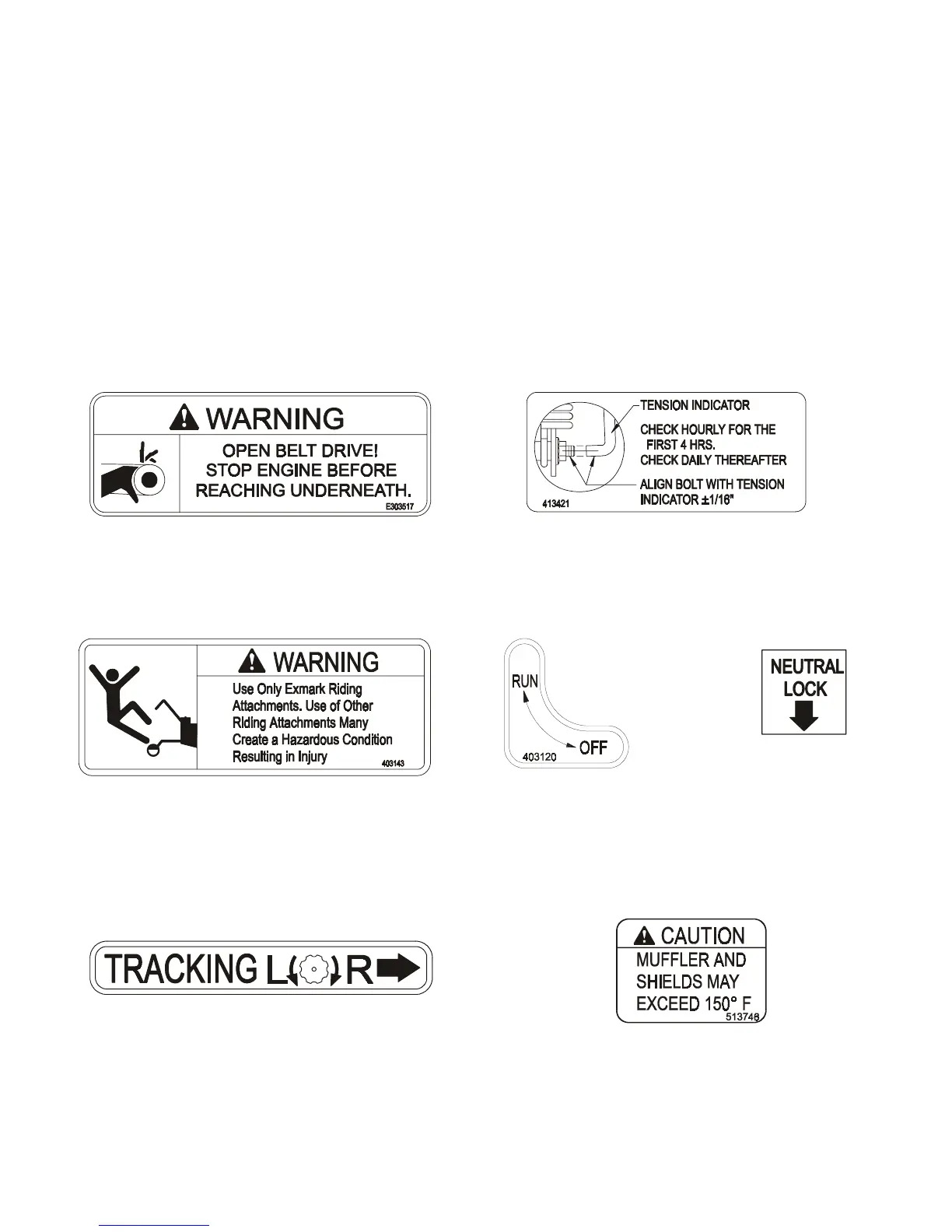

1.7.6 Familiarize yourself with the following safety signs and instruction labels. They
are critical to the safe operation of your Exmark commercial mower.
PART NO. 403143
LOCATION: Right Side of Rear
Surface of Engine Deck
PART NO. 303517
LOCATION: Left Side of Rear
Surface of Engine Deck
PART NO. 513746
LOCATION: On Engine Blower
Housing Next to Muffler
and On Center Belt Cover
PART NO. 413421
LOCATION: Left Rear on Top of Engine Deck
PART NO. 413214
LOCATION: Right Side of Hydro
Control Crank Arm
17HP Kawasaki & 16HP B&S
Serial No.s 160,000-189,999
PART NO. 403120
LOCATION: On Switch Bracket at
Front Left of Fuel Tank
Support
PART NO. 303102
LOCATION: Upper
Handle
